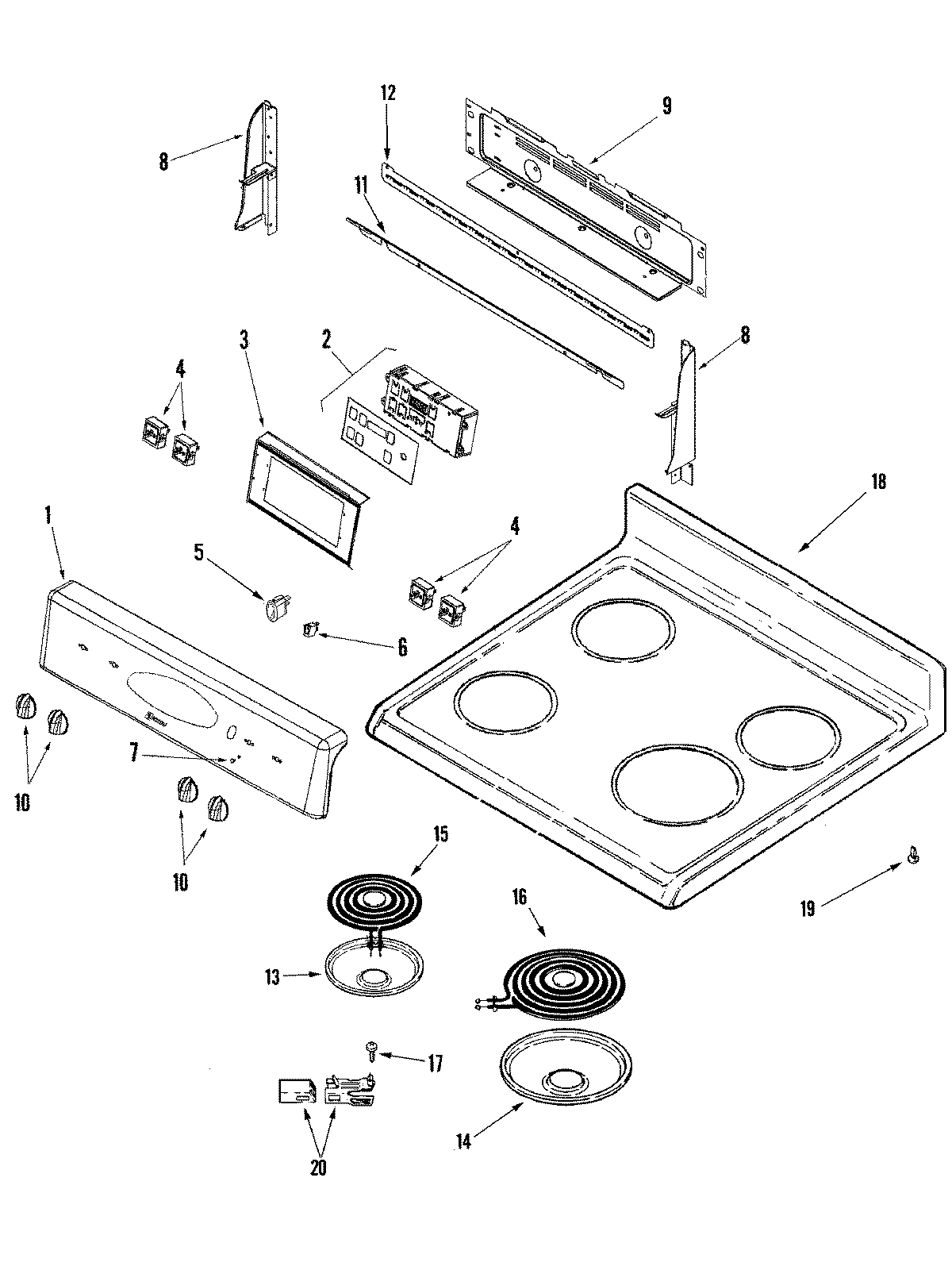

MER5551BAW 02 – CONTROL PANEL/TOP ASSEMBLY

MER5551BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5551BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009049
25701M760-60 Whirlpool Electronic Control Board
3WP74003976 Whirlpool Screw
3BRACKET, CLOCK
4SCREW
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5WP74010226 Whirlpool RO Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74010713
8WP98008544 Whirlpool Screw Assembly
8MAY 74010212
9COVER, REAR WIRE
10W11197495 Whirlpool Knob
11MAY 74009701
11SCREW (8BX3/8-NI)
12MAY 74009978
12WP90767 Whirlpool Screw
13WPW10196406 Whirlpool 6" Chrome Drip Bowl
14DRIP BOWL 8" W/HOLE CHROME
15WPW10259868 Whirlpool Surface Heating Element
16WPW10345410 Whirlpool Surface Element
17WP74004005 Whirlpool Screw
18MAY 74003428
19W11189172 Whirlpool Glide Drawer
20WP74007474 Whirlpool Dishwasher Element Receptacle
