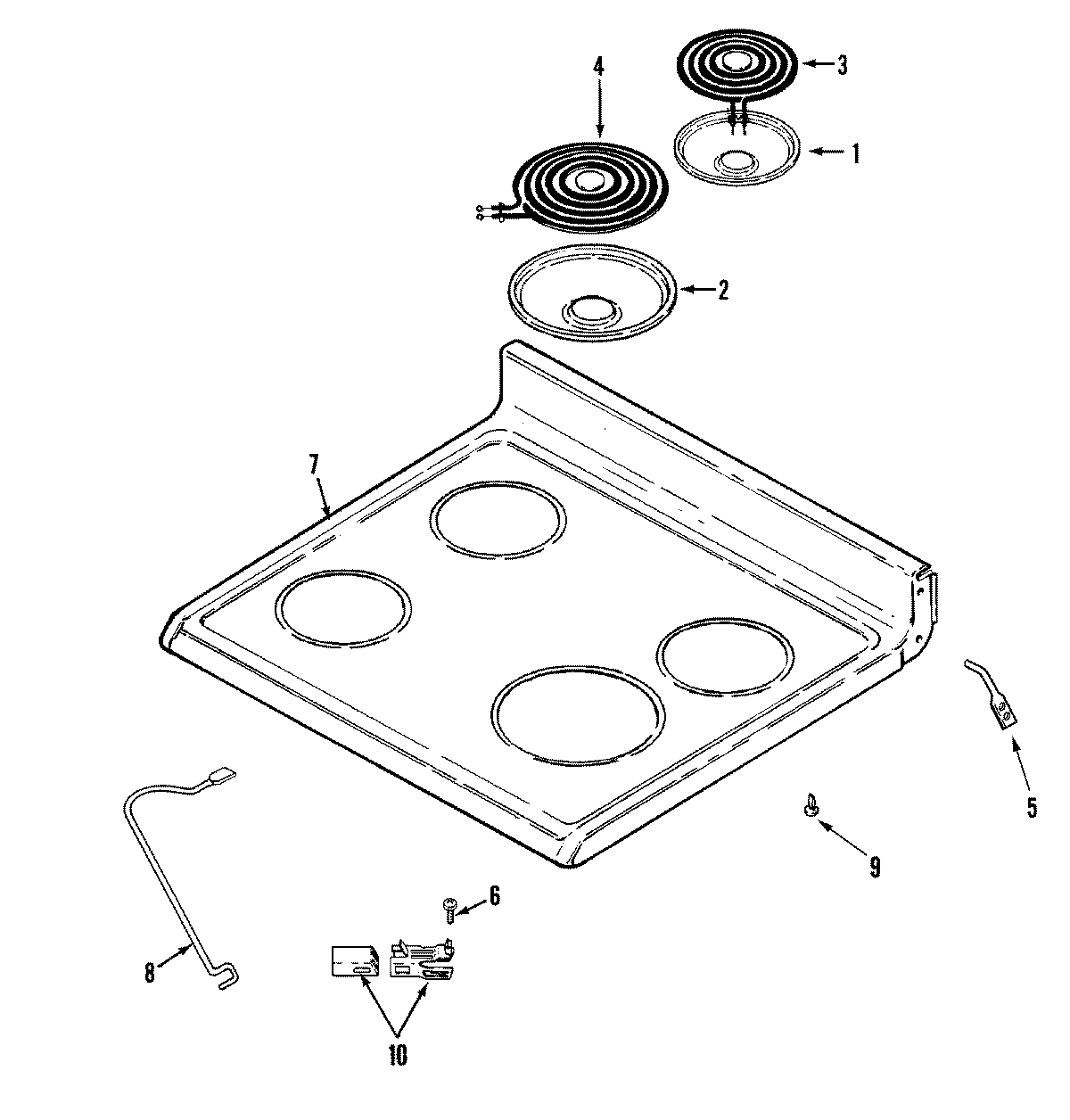

MER5552AAB 06 – TOP ASSEMBLY

Products

Position	Product
1	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2	MAY Y04100393
3	WPW10259868 Whirlpool Surface Heating Element
4	WPW10345410 Whirlpool Surface Element
5	MAY 74003371
5	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
6	MAY 7118P013-60
7	MAY 74009684
8	MAY 74004084
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	W11189172 Whirlpool Glide Drawer
10	12001676 Whirlpool Range Surface Burner Receptacle Kit
