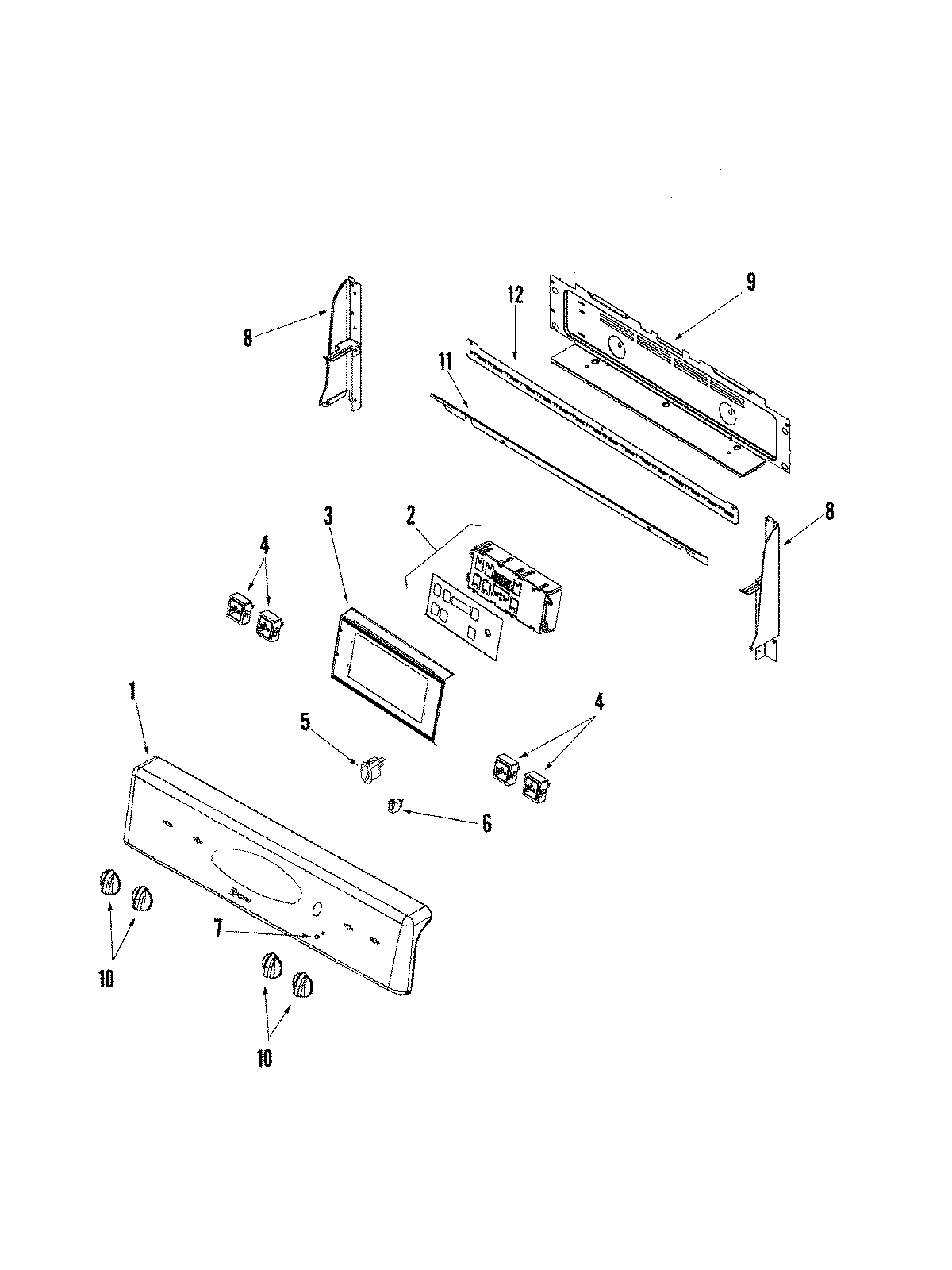

MER5552AAQ 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74009050
2	5701M760-60 Whirlpool Electronic Control Board
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	BRACKET, CLOCK
3	WP74003976 Whirlpool Screw
4	SCREW
4	WP7403P239-60 Whirlpool Oven Switch
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	7403P984-60 Whirlpool RO Switch
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 74009671
8	MAY 74009668
8	WP74009541 Whirlpool Screw Assembly
9	MAY 74009335
10	MAY 74009189
11	MAY 74009701
11	SCREW (8BX3/8-NI)
12	WP90767 Whirlpool Screw
12	MAY 74009708
