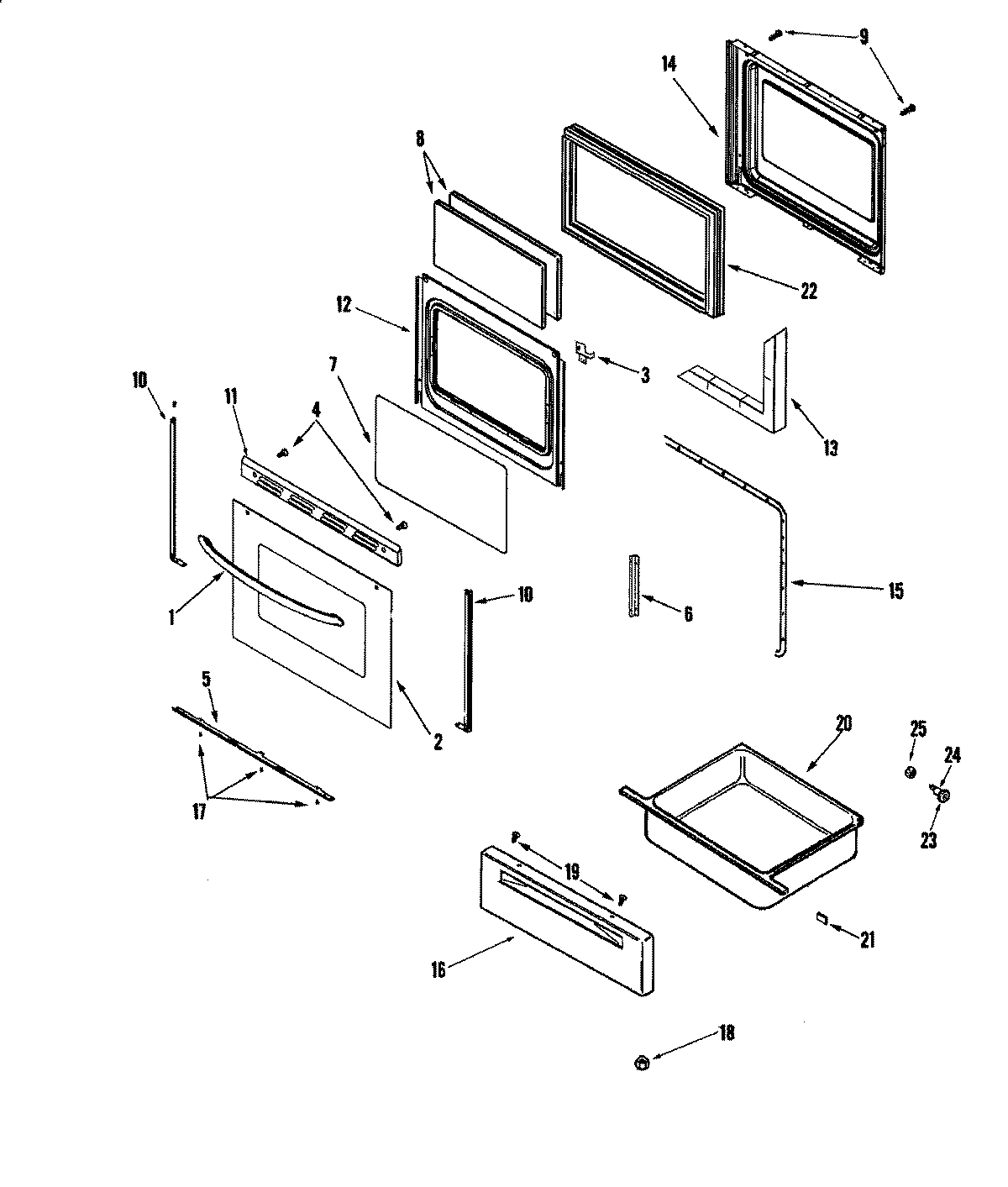

MER5552AAQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74011107
1	MAY 74009185
2	MAY 74009733
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
5	SUPPORT, GLASS (BSQ)
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
9	SCREW
10	TRIM, DOOR (BSQ-RT)
10	TRIM, DOOR (BSQ-LT)
11	MAY 74009691
12	MAY 74009502
13	INSULATION, OVEN DOOR
14	MAY 74003642
15	GASKT-DOOR OVEN
16	MAY 74005055
17	WP74009541 Whirlpool Screw Assembly
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74005546 Whirlpool RU Spacer
22	FRAME, GLASS
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	WP488130 Whirlpool Air Conditioner Nut
