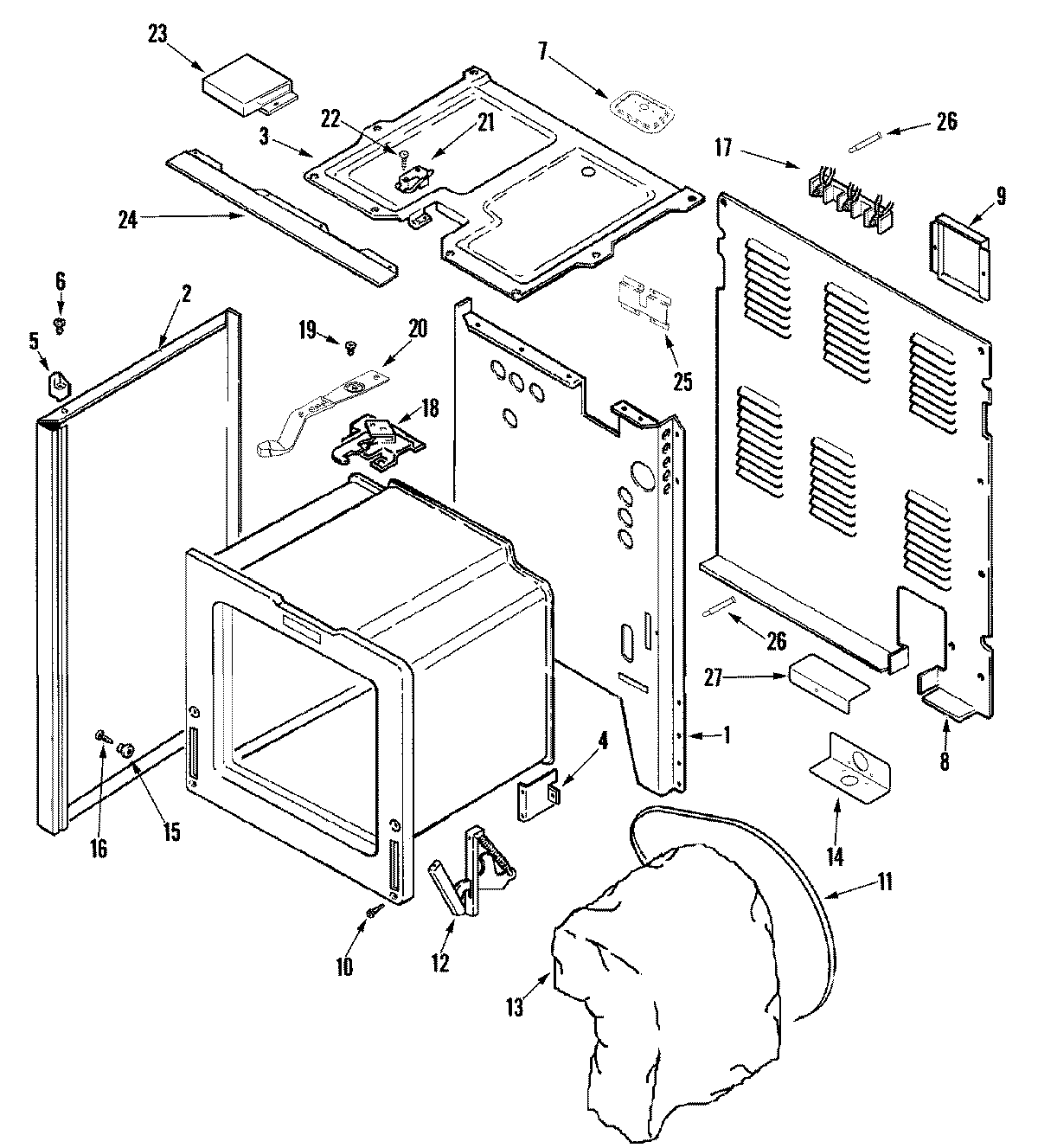

MER5552BAB 01 – BODY

Products

Position	Product
1	MAY 71001394
1	MAY 74010934
2	MAY 74003283
2	TAPE, FOIL (3“ WIDE)
3	MAY 74011045
3	WP74003976 Whirlpool Screw
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	MAY 74001449
7	MAY 74011044
7	COVER, VENT
8	CLIP, WIRE LOCK
8	MAY 74009744
9	MAY 74010256
10	SCREW (10-24X5/16-NI)
11	MAY 74003385
12	HINGE-OVEN DOOR
13	MAY 74009201
13	WP74010942 Whirlpool Insulation
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	MAY 74007476
17	WPW10245259 Whirlpool Terminal Block
17	SCREW (10ABX1.0-ZN)
17	WP7103P027-60 Whirlpool Nut
18	MAY 74001084
18	MAY 74009764
20	MAY 74010244
20	SCREW, LEVER
21	MAY 74009591
21	MAY 74003630
22	MAY 7101P330-60
23	MAY 74003479
24	MAY 74003384
25	MAY 74004532
26	MAY 7101P337-60
27	MAY 74011046
