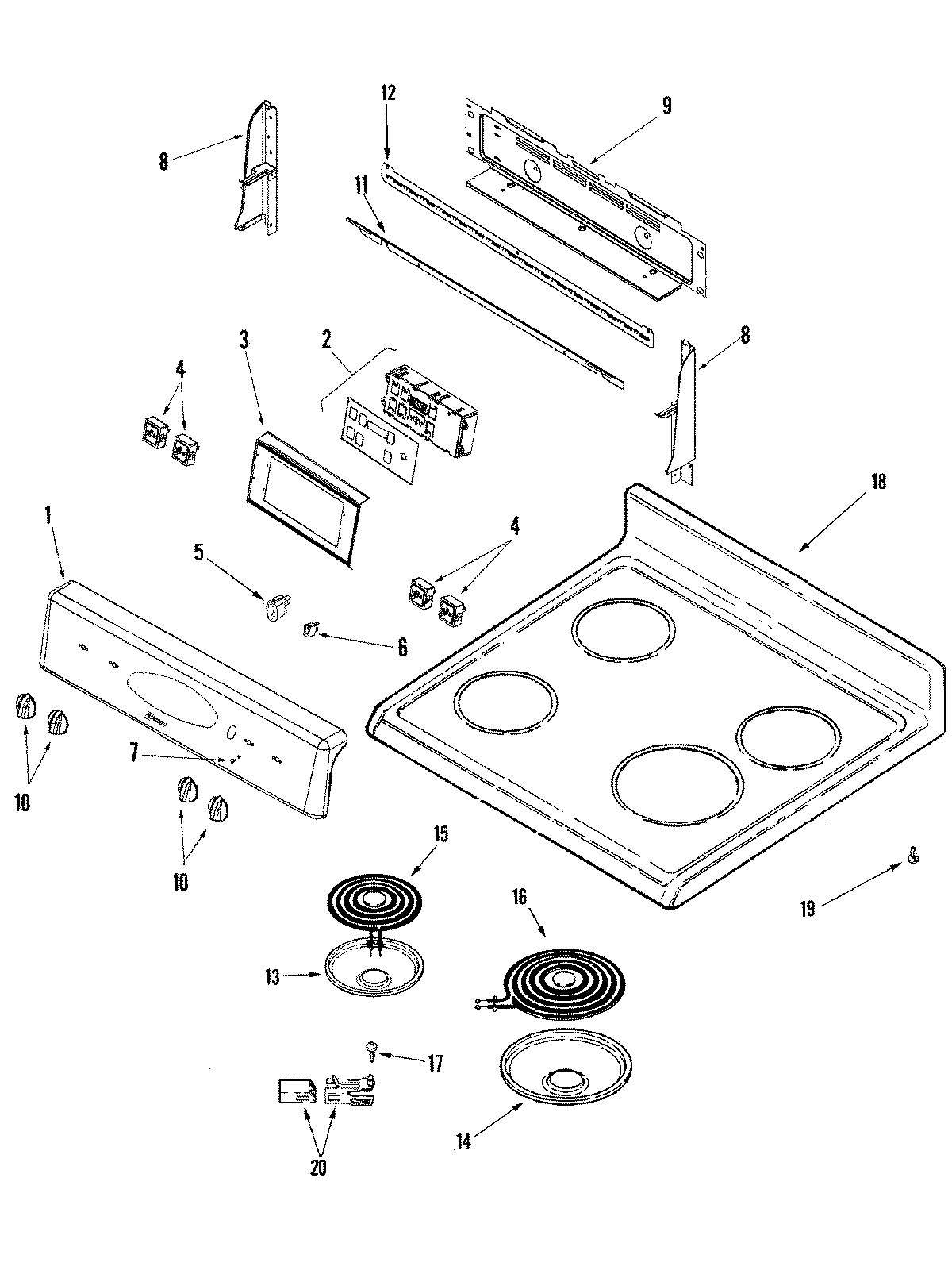

MER5552BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MER5552BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5552BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009050
25701M760-60 Whirlpool Electronic Control Board
3WP74003976 Whirlpool Screw
3BRACKET, CLOCK
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
5WP74010226 Whirlpool RO Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8Screw (2) (Bisque)
8MAY 74010712
8MAY 74010714
9COVER, REAR WIRE
10MAY 74009189
11MAY 74009978
11WP90767 Whirlpool Screw
12MAY 74009701
12SCREW (8BX3/8-NI)
13W10288050 Whirlpool Range Bisque Cooktop Drip Pan Kit
15WPW10259868 Whirlpool Surface Heating Element
16WPW10345410 Whirlpool Surface Element
17WP74004005 Whirlpool Screw
18MAY 74010346
19W11189172 Whirlpool Glide Drawer
20WP74007474 Whirlpool Dishwasher Element Receptacle
