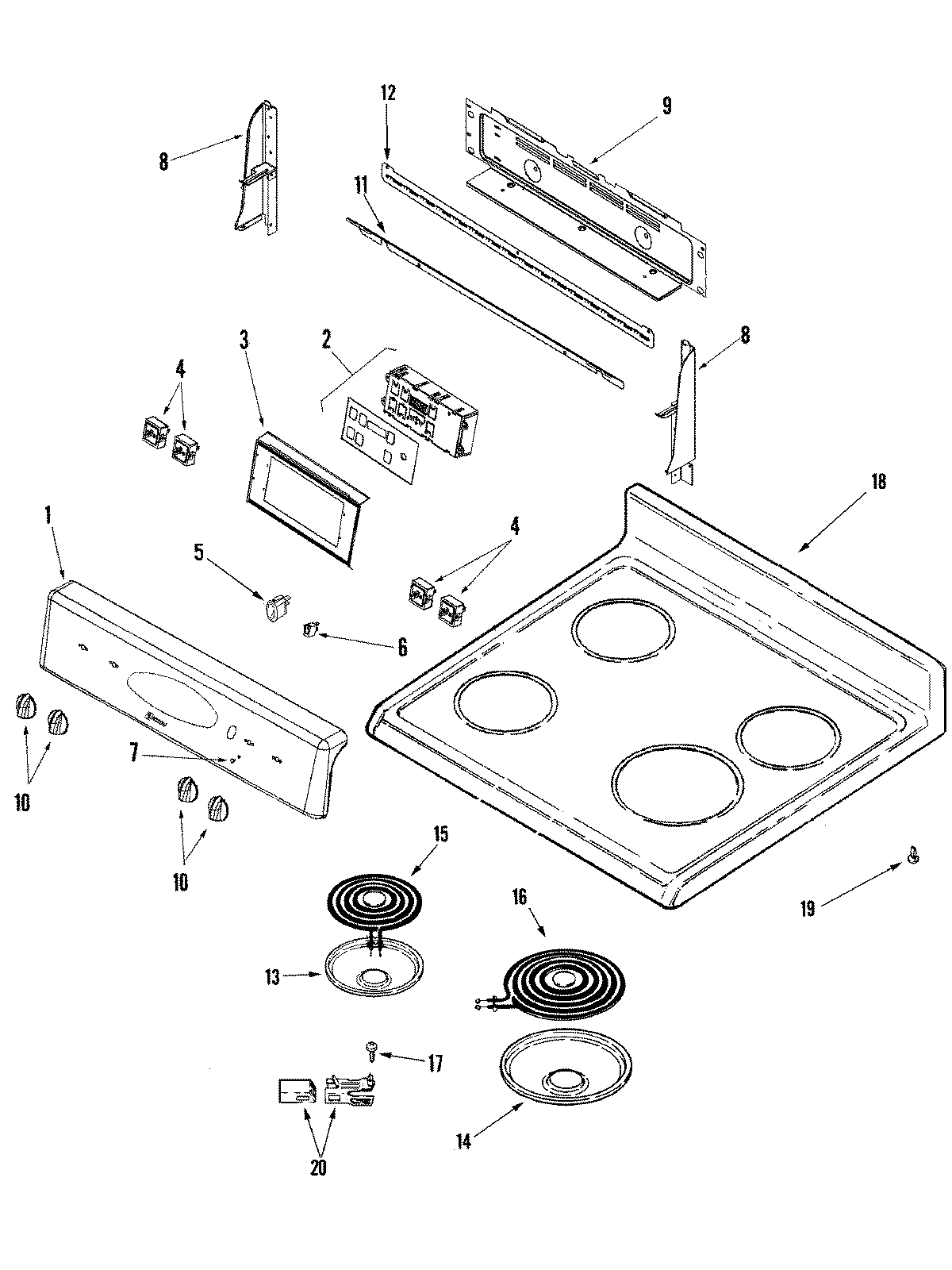

MER5552BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009051
2	5701M760-60 Whirlpool Electronic Control Board
3	WP74003976 Whirlpool Screw
3	BRACKET, CLOCK
4	SCREW
4	WP7403P239-60 Whirlpool Oven Switch
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	7403P985-60 Whirlpool Rocker Switch (Black)
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 74010202
8	MAY 74010201
8	WP98008545 Whirlpool Screw
9	COVER, REAR WIRE
11	WP90767 Whirlpool Screw
11	MAY 74009978
12	MAY 74009701
12	SCREW (8BX3/8-NI)
13	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
14	MAY Y04100393
15	WPW10259868 Whirlpool Surface Heating Element
16	WPW10345410 Whirlpool Surface Element
17	WP74004005 Whirlpool Screw
18	MAY 74003582
19	W11189172 Whirlpool Glide Drawer
20	WP74007474 Whirlpool Dishwasher Element Receptacle
