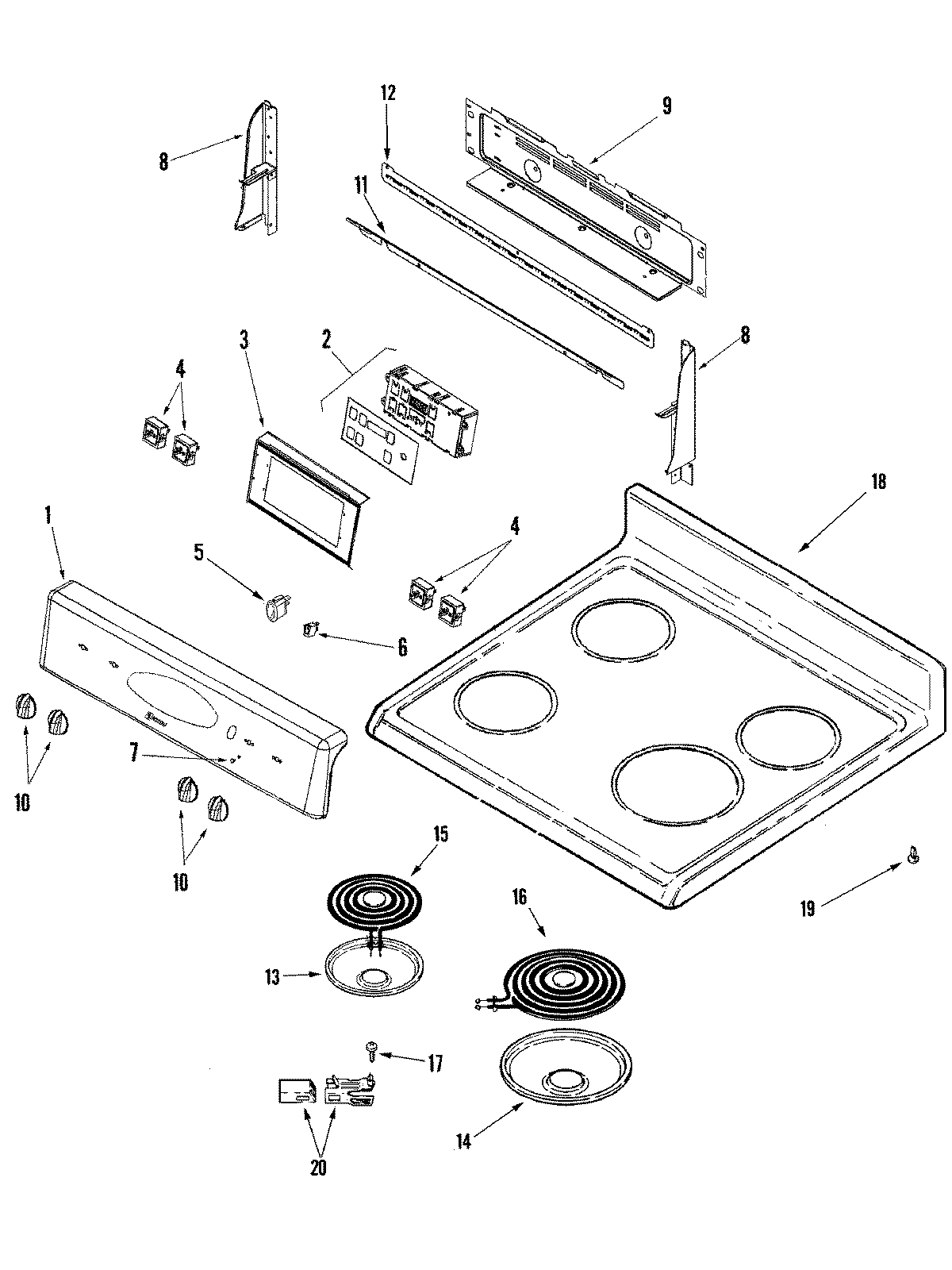

MER5552BAW 02 – CONTROL PANEL/TOP ASSEMBLY

MER5552BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5552BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009049
25701M760-60 Whirlpool Electronic Control Board
3BRACKET, CLOCK
3WP74003976 Whirlpool Screw
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
57403P984-60 Whirlpool RO Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8Screw (2) (White)
8MAY 74010713
8MAY 74010212
9COVER, REAR WIRE
10W11197495 Whirlpool Knob
11WP90767 Whirlpool Screw
11MAY 74009978
12MAY 74009701
12SCREW (8BX3/8-NI)
13W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
15WPW10259868 Whirlpool Surface Heating Element
16WPW10345410 Whirlpool Surface Element
17WP74004005 Whirlpool Screw
18MAY 74003428
19W11189172 Whirlpool Glide Drawer
20WP74007474 Whirlpool Dishwasher Element Receptacle
