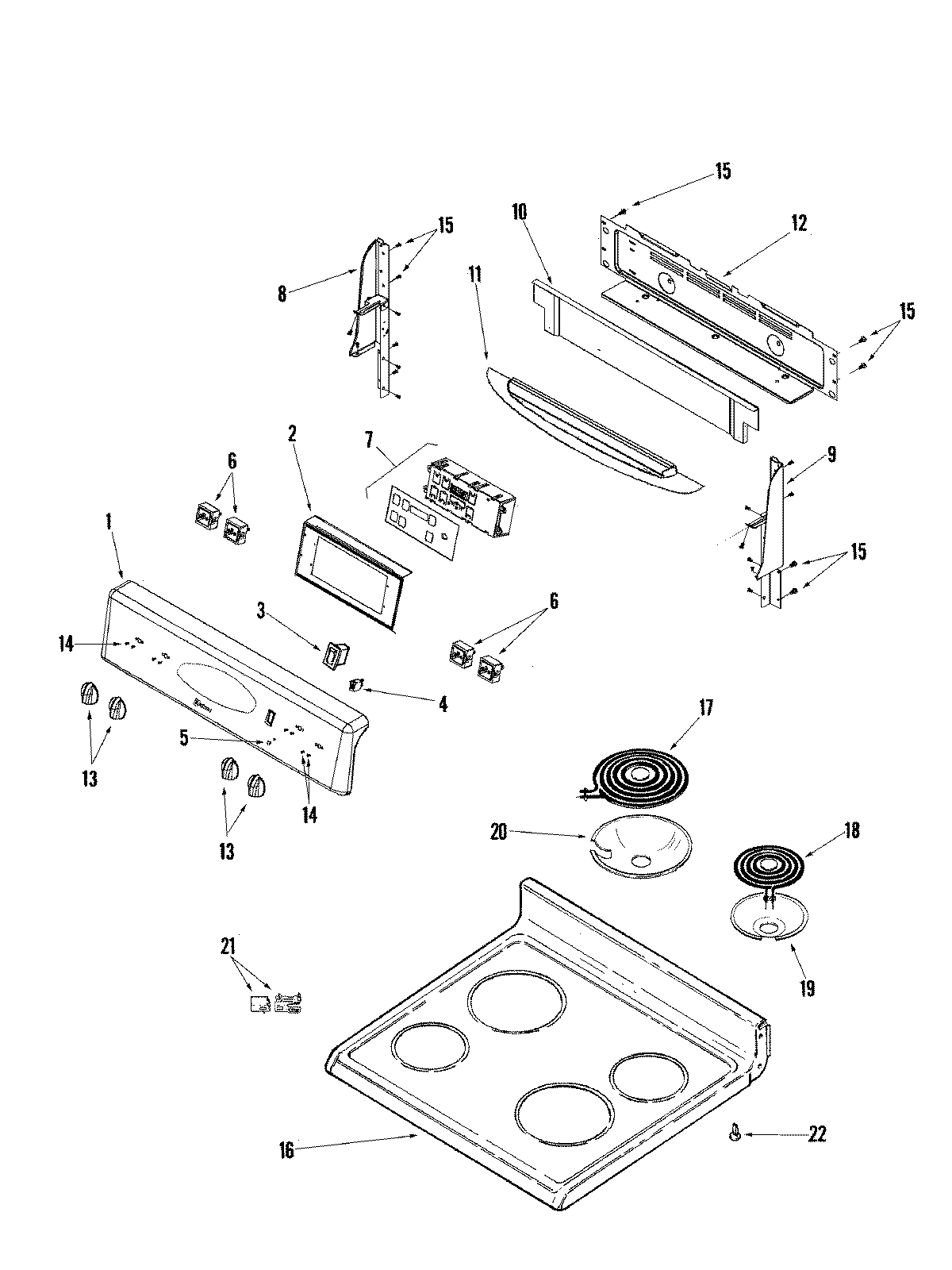

MER5555QAB 03 – CONTROL PANEL/TOP ASSEMBLY

MER5555QAB 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5555QAB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009051
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7WP5701M719-60 Whirlpool Electronic Control Board
8MAY 74008719
9MAY 74008722
10MAY 74008725
10MAY 74009205
11MAY 74008891
11MAY 74009202
12MAY 74009053
13MAY 74008945
14SCREW
15SCREW
16MAY 74009055
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
20MAY Y04100393
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
