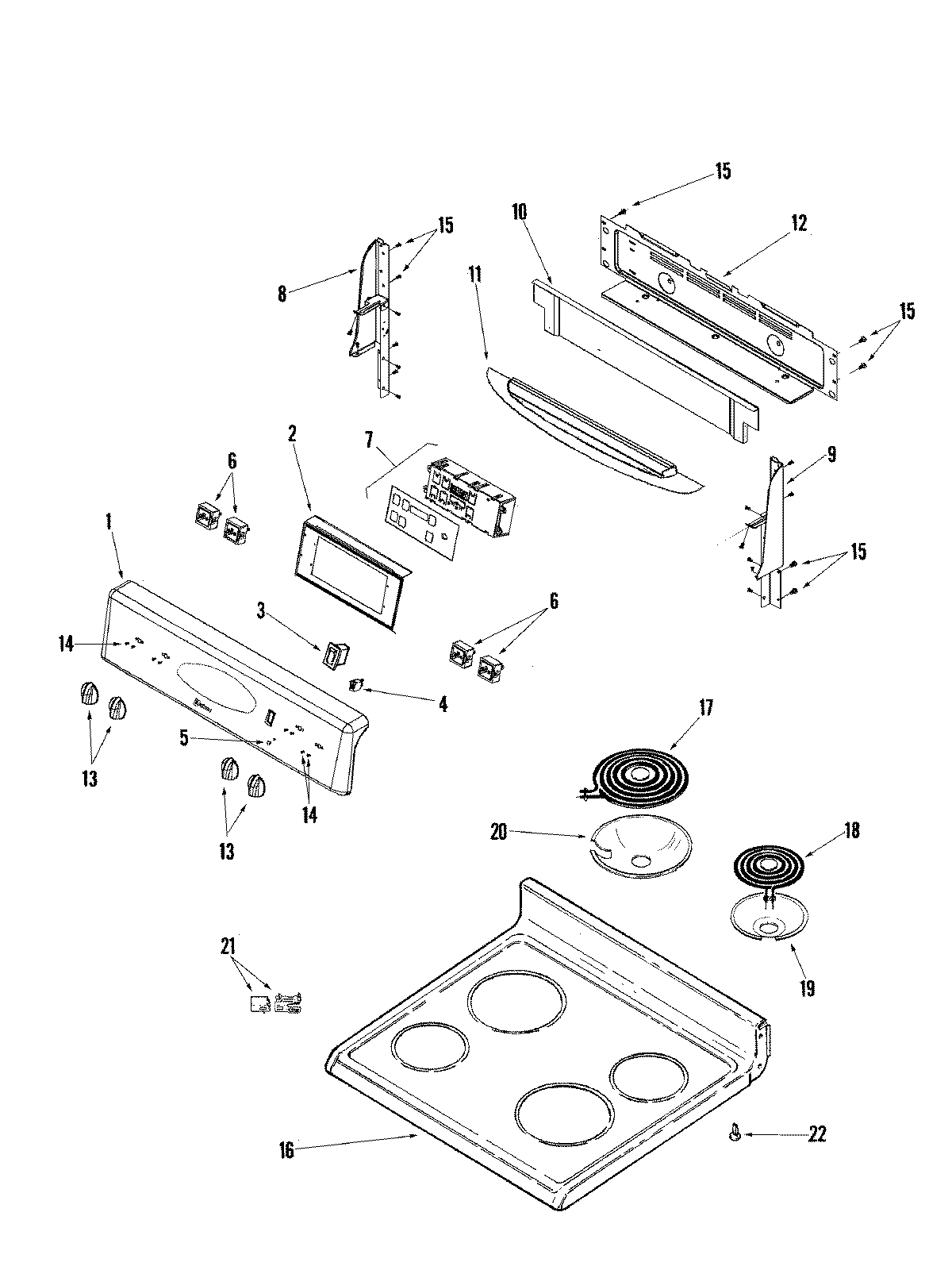

MER5555QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

MER5555QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5555QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009050
2BRACKET, CLOCK
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7MAY 74009212
7MAY 74008646
8END CAP (LT-BSQ)
9END CAP (RT-BSQ)
10MAY 74009207
10MAY 74008727
11MAY 74008729
11SHIELD, HEAT VISOR (BSQ)
12MAY 74009053
1374008946 Whirlpool Oven Bisque Knob
14SCREW
15SCREW
16MAY 74008738
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19W10288050 Whirlpool Range Bisque Cooktop Drip Pan Kit
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
