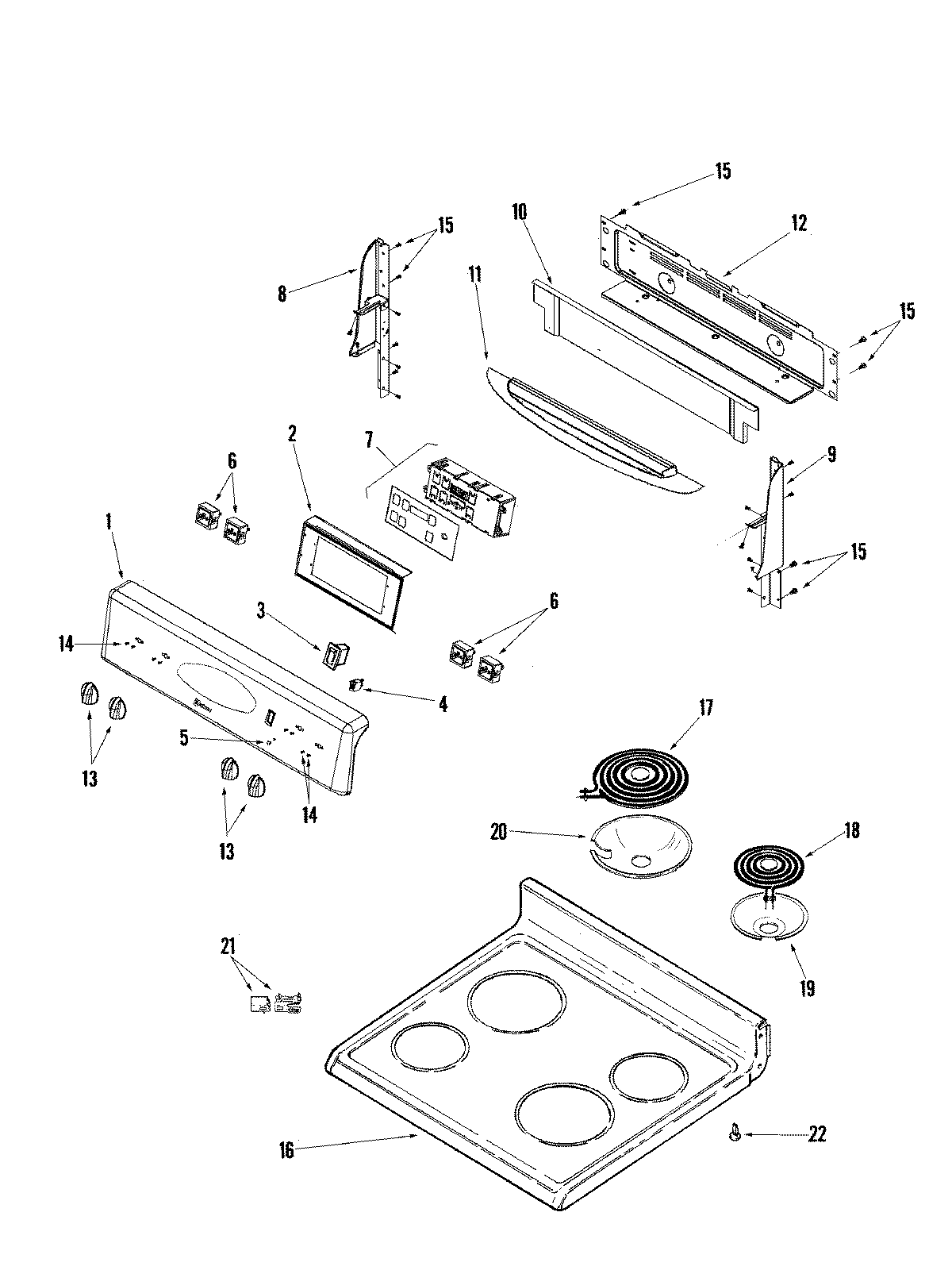

MER5555QAW 03 – CONTROL PANEL/TOP ASSEMBLY

MER5555QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5555QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009049
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP5701M717-60 Whirlpool Electronic Control Board
8Latch Assembly
9END CAP (RT-WHT)
10MAY 74008726
10MAY 74009206
11MAY 74008728
11MAY 74009203
12MAY 74009053
13WP74008947 Whirlpool Knob White
14SCREW
15SCREW
16MAY 74008737
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
