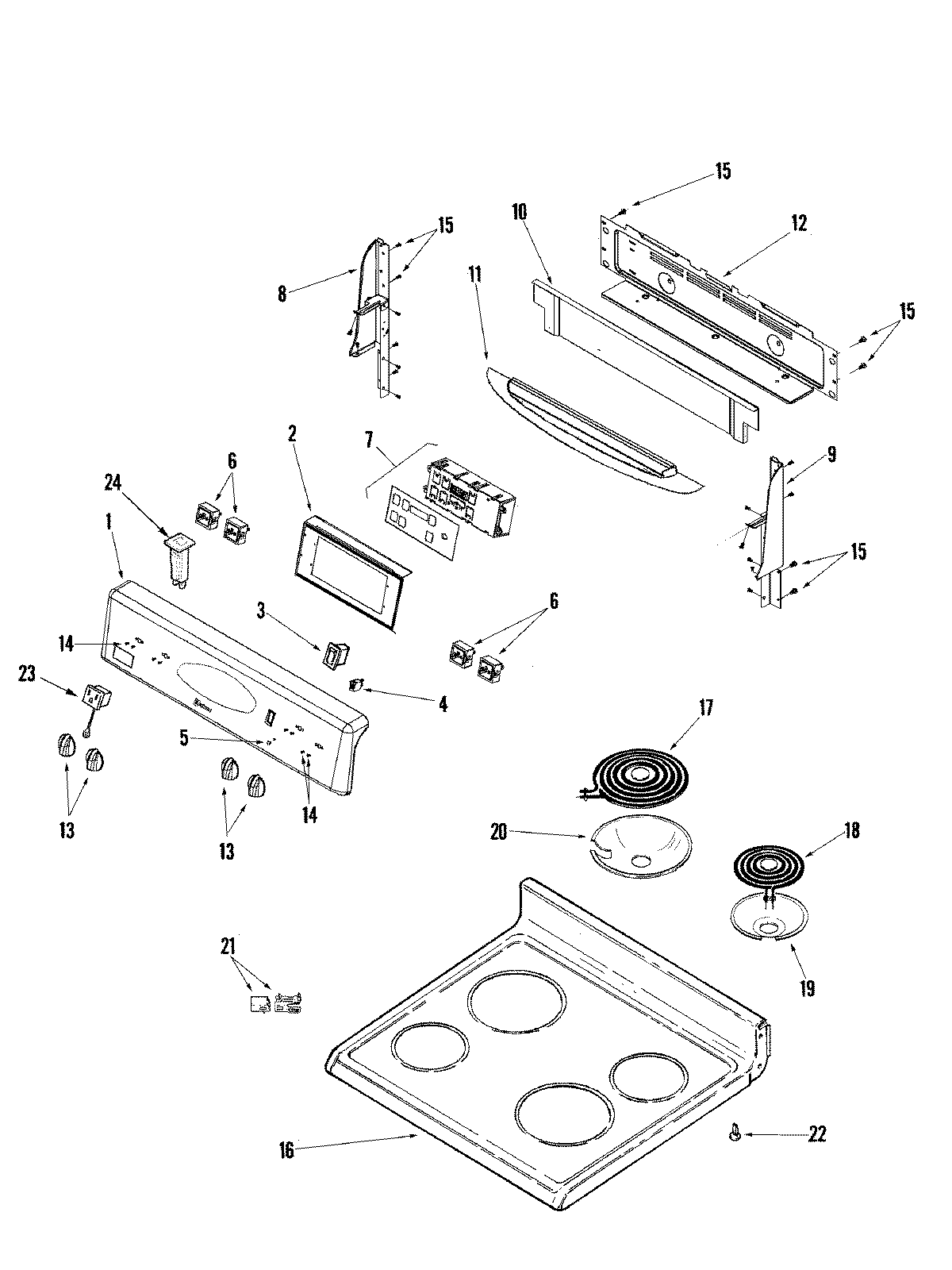

MER5555QCB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009333
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP5701M719-60 Whirlpool Electronic Control Board
8End Cap (Right Black)
9End Cap (Left Black)
10MAY 74009205
11MAY 74009202
12MAY 74009335
12MAY 74009053
13MAY 74008945
14SCREW
16MAY 74009055
17WPW10345410 Whirlpool Surface Element
18WPW10259868 Whirlpool Surface Heating Element
19WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
20MAY Y04100393
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
23SCREW
23MAY 71003068
24MAY 71003070
