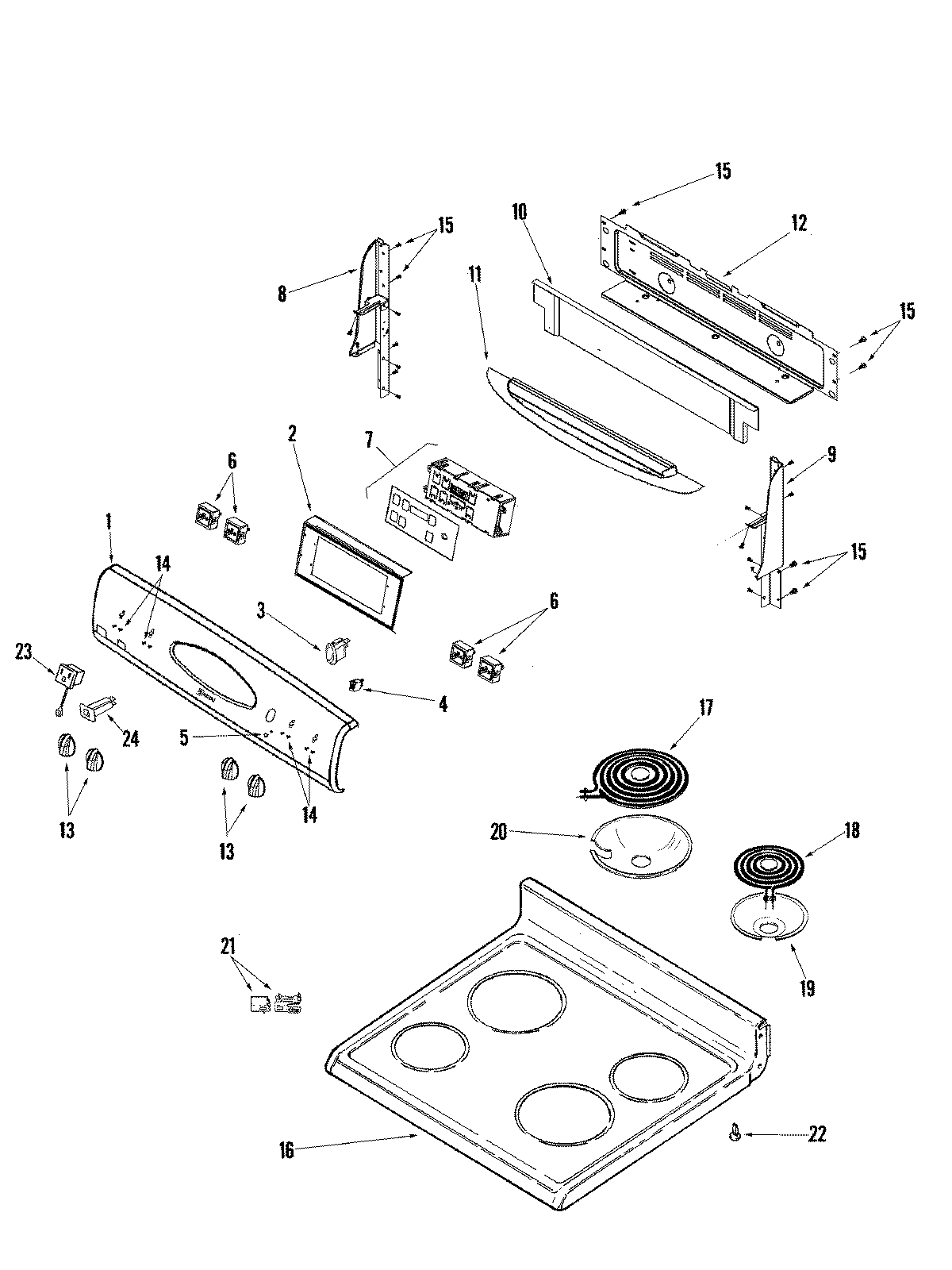

MER5555RCB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009333
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	WP5701M719-60 Whirlpool Electronic Control Board
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009444
11	MAY 74009202
12	COVER, REAR WIRE
13	MAY 74008945
14	SCREW
16	MAY 74009055
17	WPW10345410 Whirlpool Surface Element
18	WPW10259868 Whirlpool Surface Heating Element
19	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
20	MAY Y04100393
21	12001676 Whirlpool Range Surface Burner Receptacle Kit
22	74008761 Whirlpool Spacer Snap-In
23	MAY 71003068
23	SCREW
24	MAY 71003070
