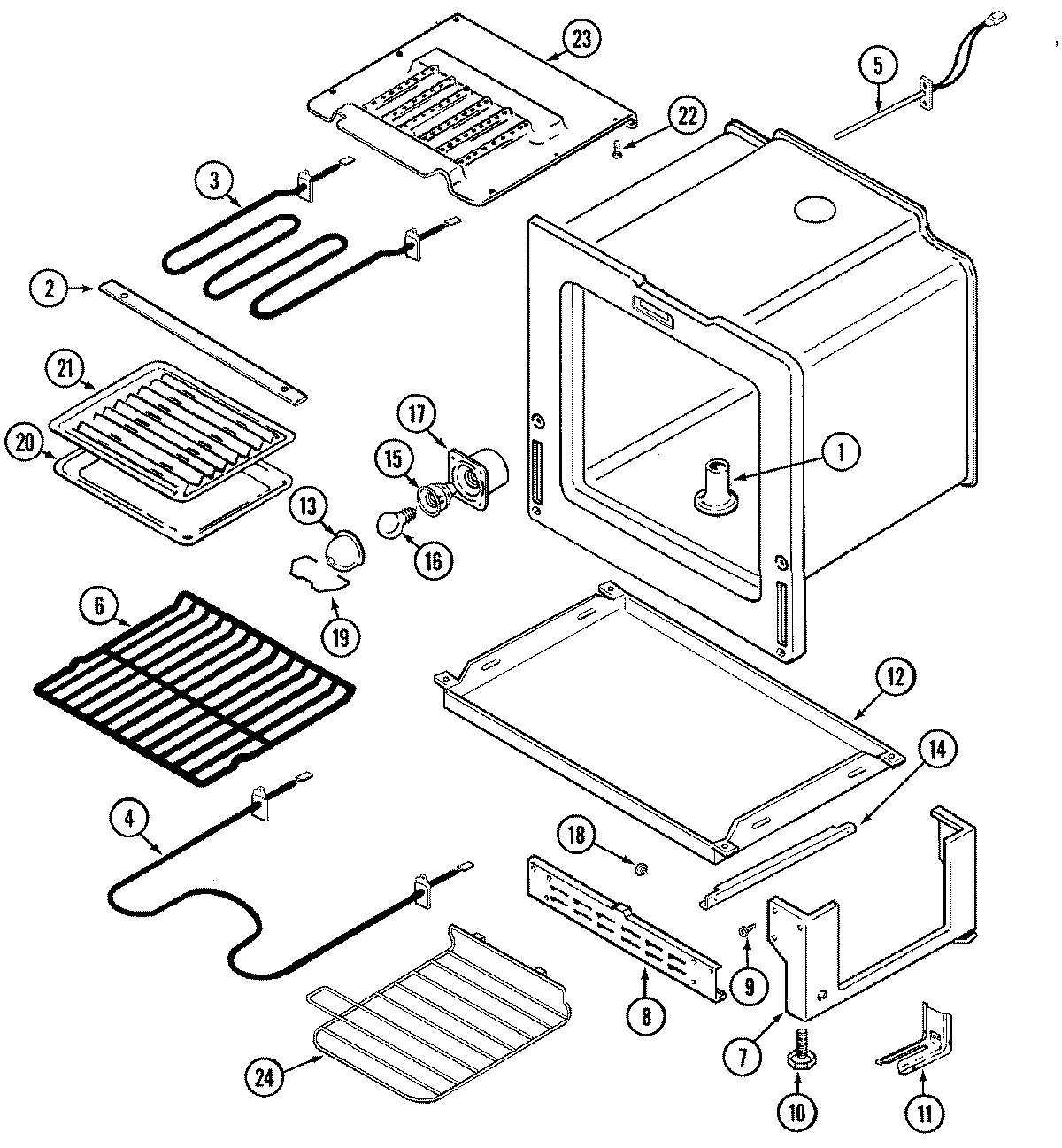

MER5570AAQ 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P019-60
2	WP400021-1 Whirlpool Screw
2	MAY 74003563
3	WP7406P218-60 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	MAY 74003390
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003393
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	MAY 74002311
11	WP7101P485-60 Whirlpool Anchor Tip
12	MAY 74003392
13	MAY 74003389
14	RUNNER, DRAWER
15	MAY 74003387
16	MAY Y707319
17	MAY 74003388
18	MAY 74003566
18	WP488130 Whirlpool Air Conditioner Nut
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 74003391
20	MAY Y3401F02019
21	MAY Y3413F01619
22	SCREW
23	MAY 3601F237-47
24	MAY 74003590
