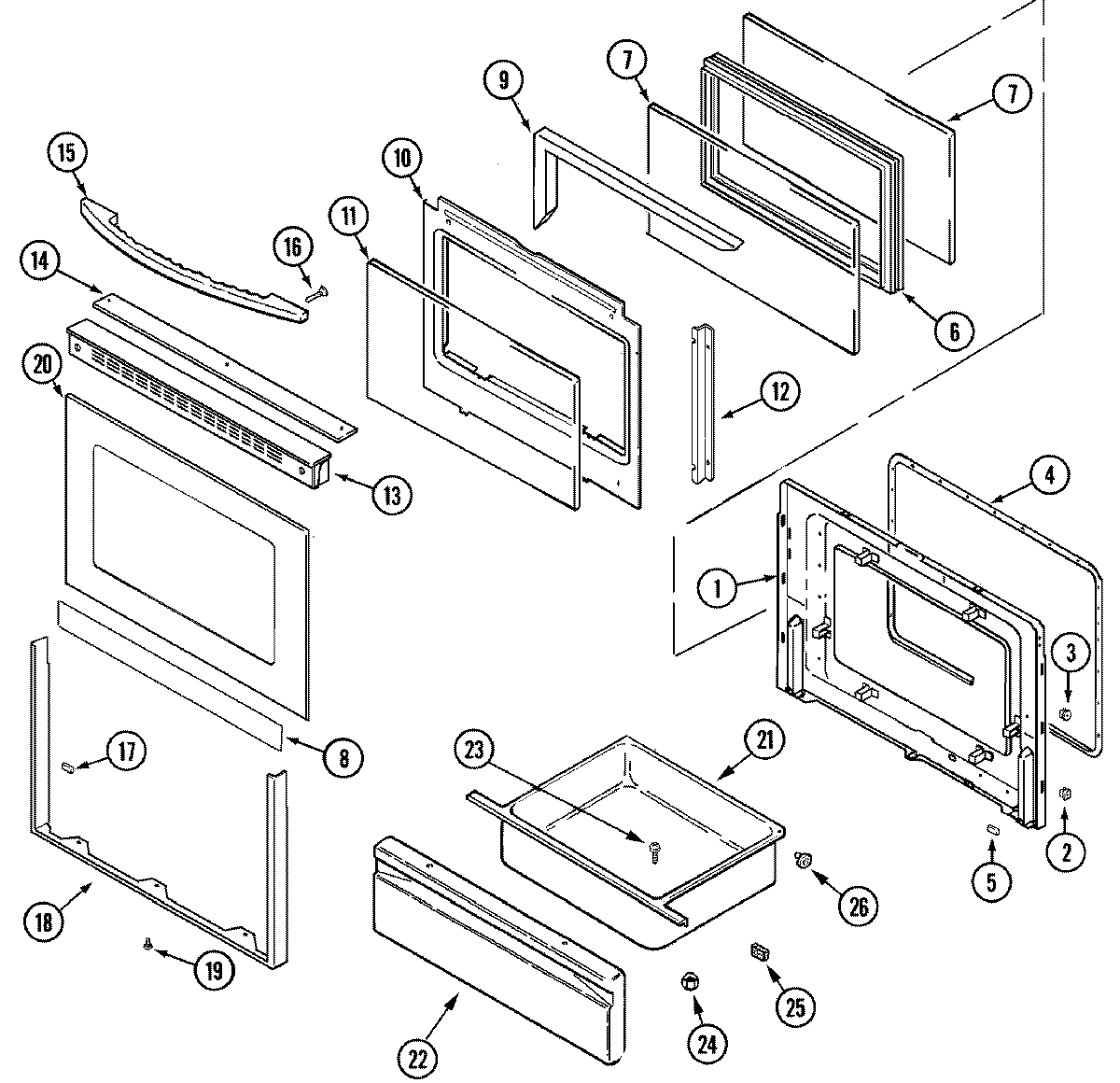

MER5570BCW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	NUT, SNAP (ROUND-BLK)
2	MAY 74003643
3	NUT, SNAP (ROUND-WHT)
4	GASKT-DOOR OVEN
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	TAPE, FOIL 29“ X 2“
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	MAY 74004857
12	MAY 74003650
13	MAY 74006401
14	MAY 7728P094-60
15	MAY 74006394
15	WP74006381 Whirlpool Door Handle
15	MAY 74001521
16	WP179051 Whirlpool Screw
17	WP74004224 Whirlpool Tape
18	MAY 74004325
18	WP98008544 Whirlpool Screw Assembly
19	SCREW
20	MAY 74006404
21	MAY 71003042
22	MAY 74003399
24	74005230 Whirlpool Oven Lock Nut (8-32)
25	WP854334 Whirlpool Air Conditioner Sealing Strip
26	WP488130 Whirlpool Air Conditioner Nut
26	WP74004078 Whirlpool Door Roller
27	SHAFT, STORAGE DRAWER ROLLER
28	MAY 74003660
