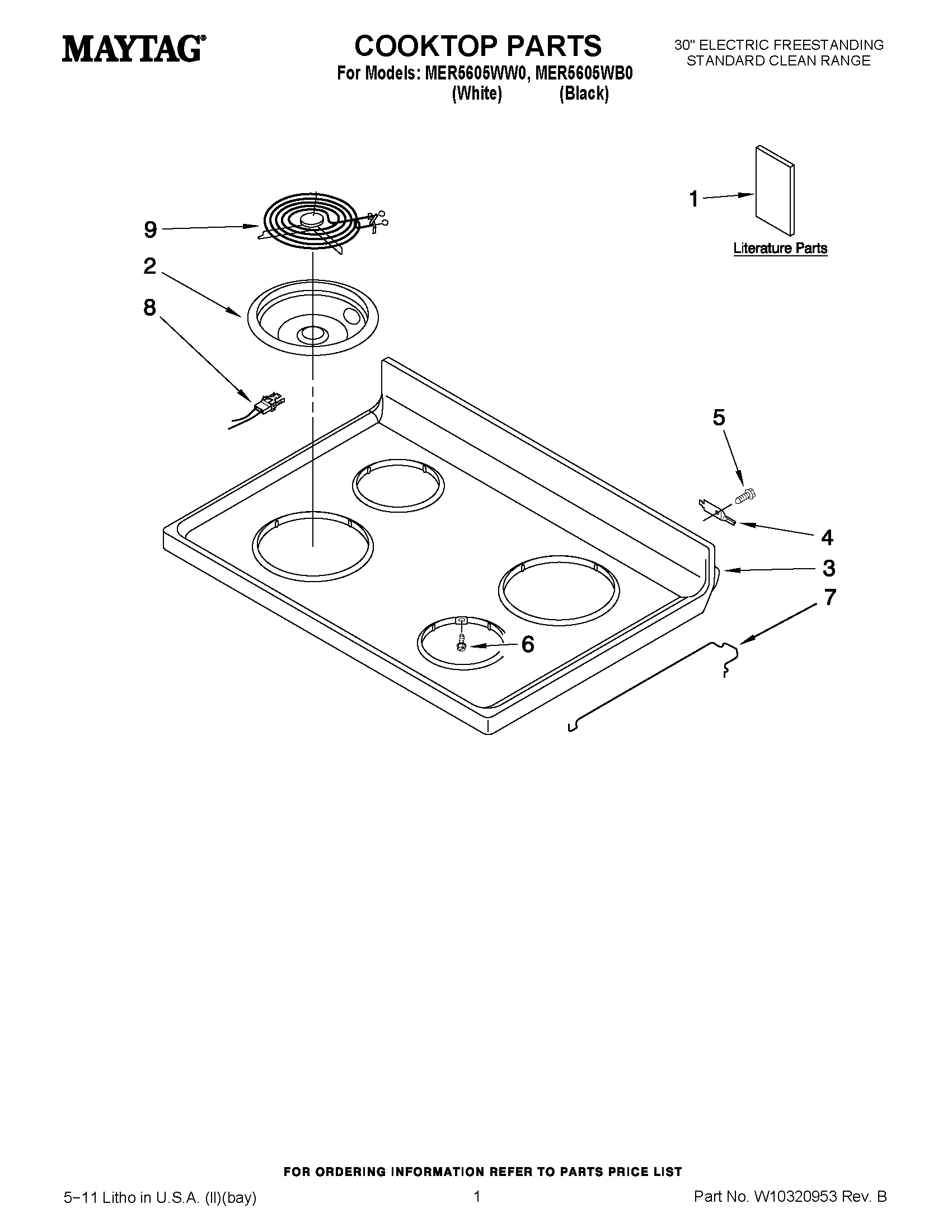

MER5605WB0 01 – COOKTOP PARTS

MER5605WB0 01 – COOKTOP PARTS

Written by

in

MER5605WB0 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10299118
1TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1MAY W10252706
1MAY W10251245
1Template, Anti-Tip (English/French)
1TIPS, SAFE COOKING (ENGLISH)
2BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6SCREW
7ROD, SUPPORT
8RECEPTACLE, ELEMENT
9ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
9ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
