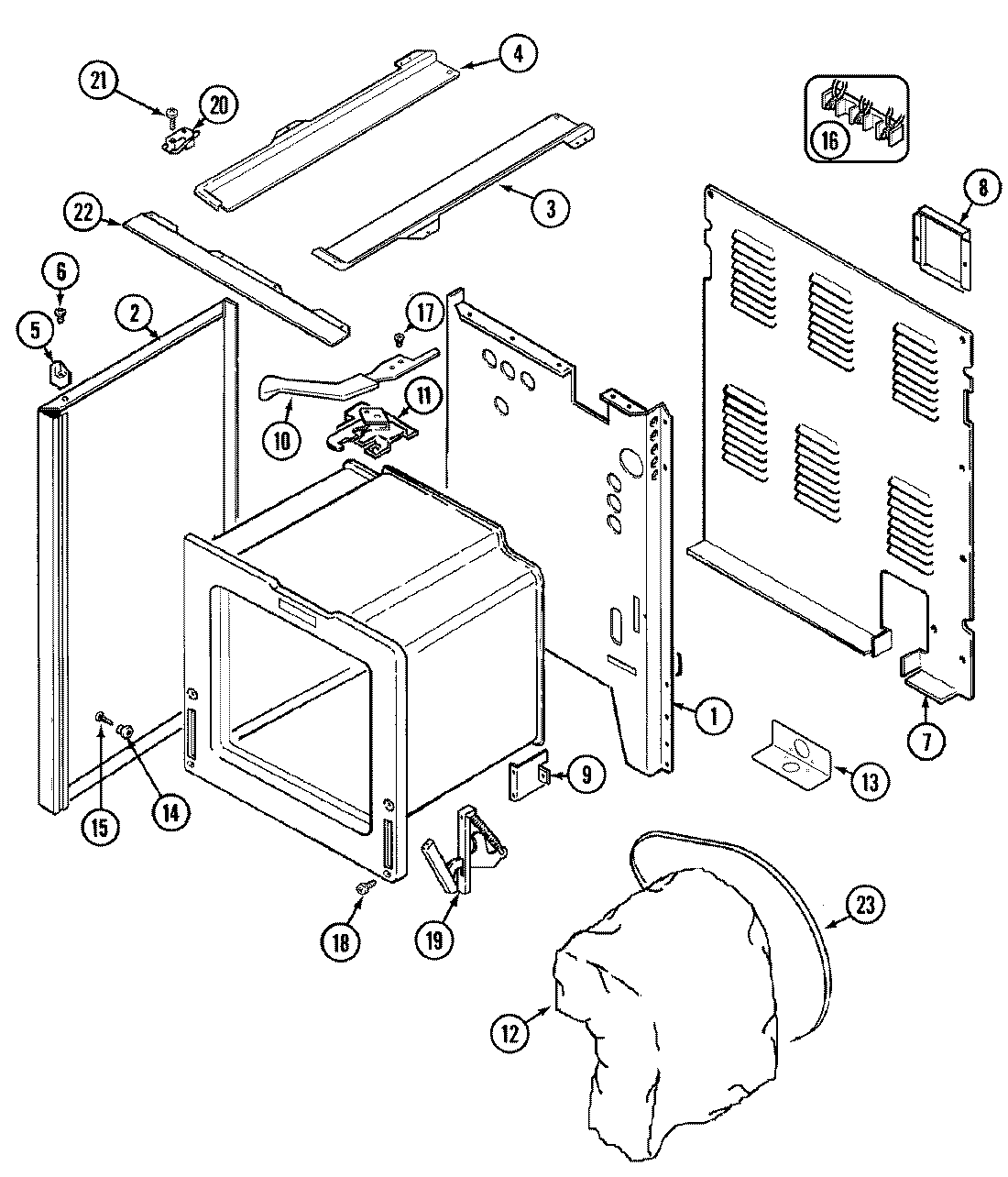

MER5710AAQ 01 – BODY

Products

Position	Product
1	MAY 74001772
2	TAPE, FOIL (3“ WIDE)
2	MAY 74004965
3	MAY 74003378
4	MAY 74003379
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 74003241
8	MAY 4005F427-51
9	SUPPORT,OVEN REAR
9	SCREW
10	MAY 74003006
10	SCREW, LEVER
11	MAY 74003139
11	MAY 74001084
11	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11	MAY 74003380
12	MAY 74003381
12	WP74010942 Whirlpool Insulation
13	W10190166 Whirlpool Service Bracket
14	MAY 8004P024-60
15	MAY 74001449
15	W11693756 Whirlpool Screw Assembly
16	WP7103P027-60 Whirlpool Nut
16	SCREW (10ABX1.0-ZN)
16	WPW10245259 Whirlpool Terminal Block
17	WP4159193 Whirlpool Screw
18	SCREW (10-24X5/16-NI)
19	WP74011140 Whirlpool Oven Hinge
20	MAY 74003383
20	MAY 74004031
21	MAY 7101P330-60
22	MAY 74003384
23	MAY 74003385
