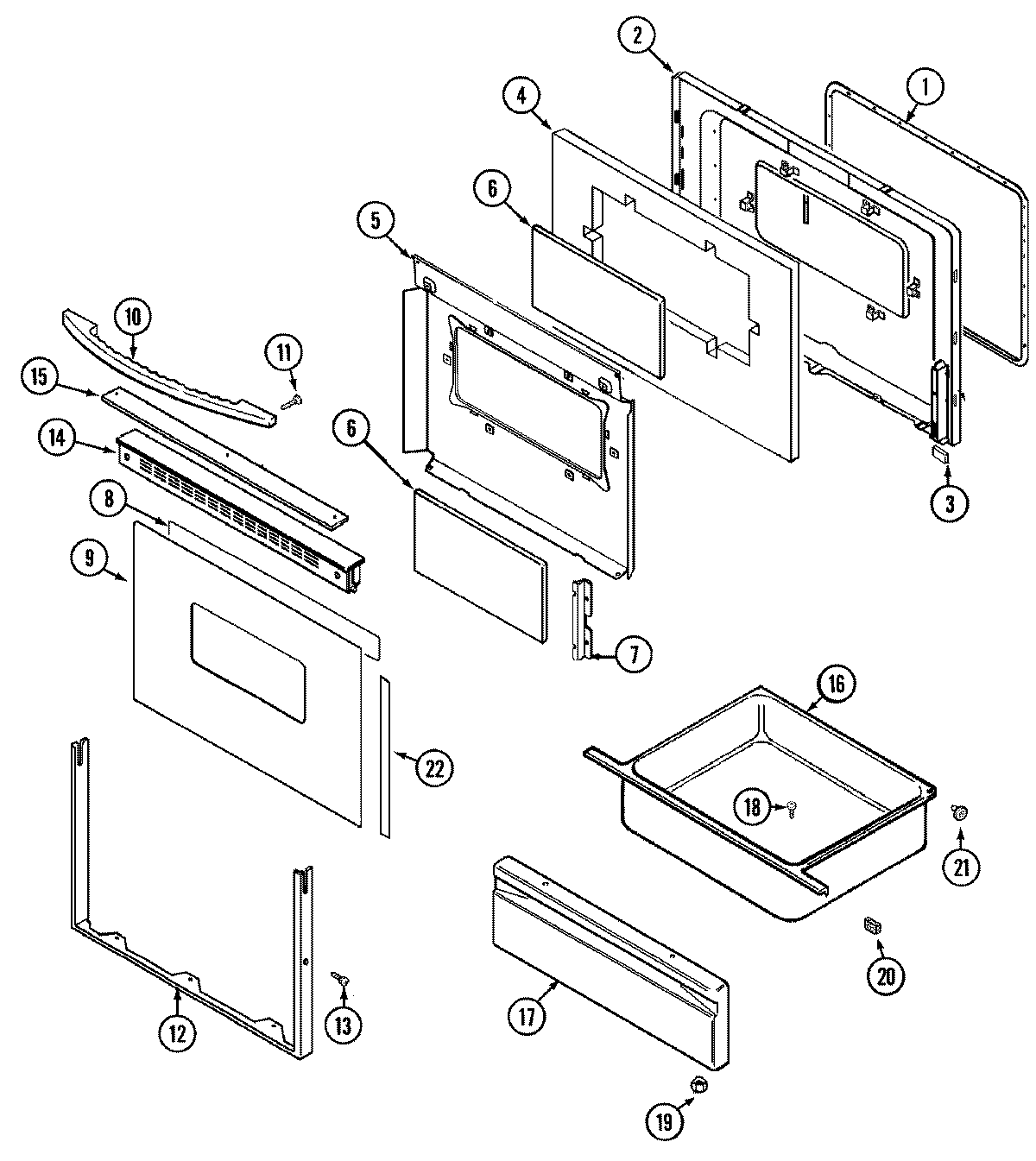

MER5720BAF 03 – DOOR/DRAWER

MER5720BAF 03 – DOOR/DRAWER

Written by

in

MER5720BAF 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2NUT, SNAP (ROUND-BLK)
2MAY 74003244
2MAY 74003643
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8MAY 8270P078-60
9MAY 74006395
10WP74006381 Whirlpool Door Handle
11MAY 74006394
11MAY 74001521
12MAY 7706P310-60
14SCREW
14MAY 74003864
15WP98008544 Whirlpool Screw Assembly
15MAY 7728P094-60
16MAY 71003042
17MAY 74003399
18WP7101P072-60 Whirlpool Screw
19WPW10131078 Whirlpool Nut Assembly
20MAY 8010P085-60
21SHAFT, STORAGE DRAWER ROLLER
21WP488130 Whirlpool Air Conditioner Nut
21MAY 74003566
22MAY 74003660
