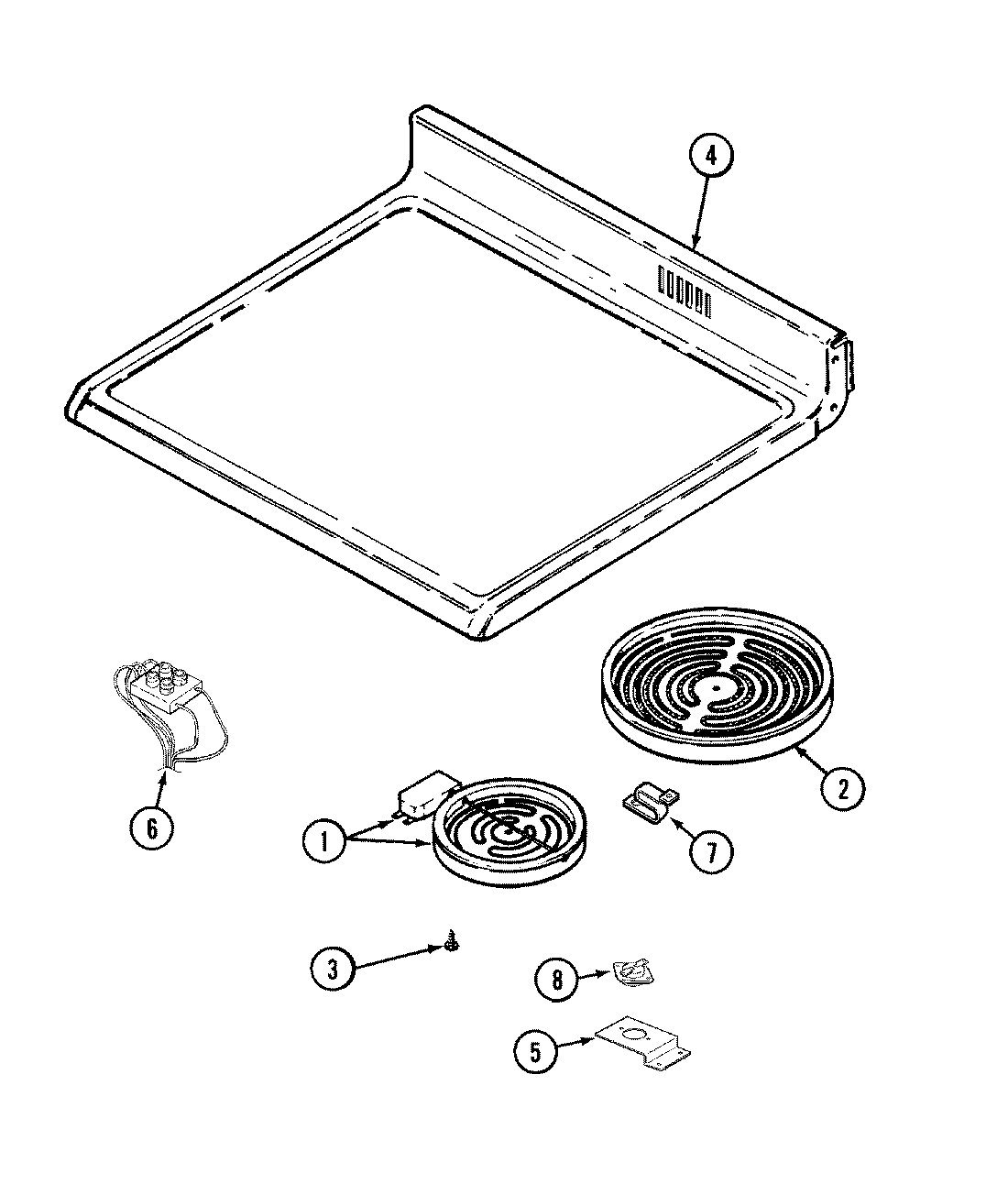

MER5730ACW 05 – TOP ASSEMBLY

MER5730ACW 05 – TOP ASSEMBLY

Written by

in

MER5730ACW 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
2MAY 74002652
2W10823697 Whirlpool Surface Element
2W10823707 Whirlpool Range Radiant Surface Element 8"
2MAY 74004494
3SCREW (6ABX.25-ZN)
4W11189172 Whirlpool Glide Drawer
4MAY 74003817
4WA906B Whirlpool Cooktop Glass Scraper
4MAY 8308P002-60
5MAY 71003077
6MAY 71003078
78004P093-60 Whirlpool Support C
8MAY 71003076
