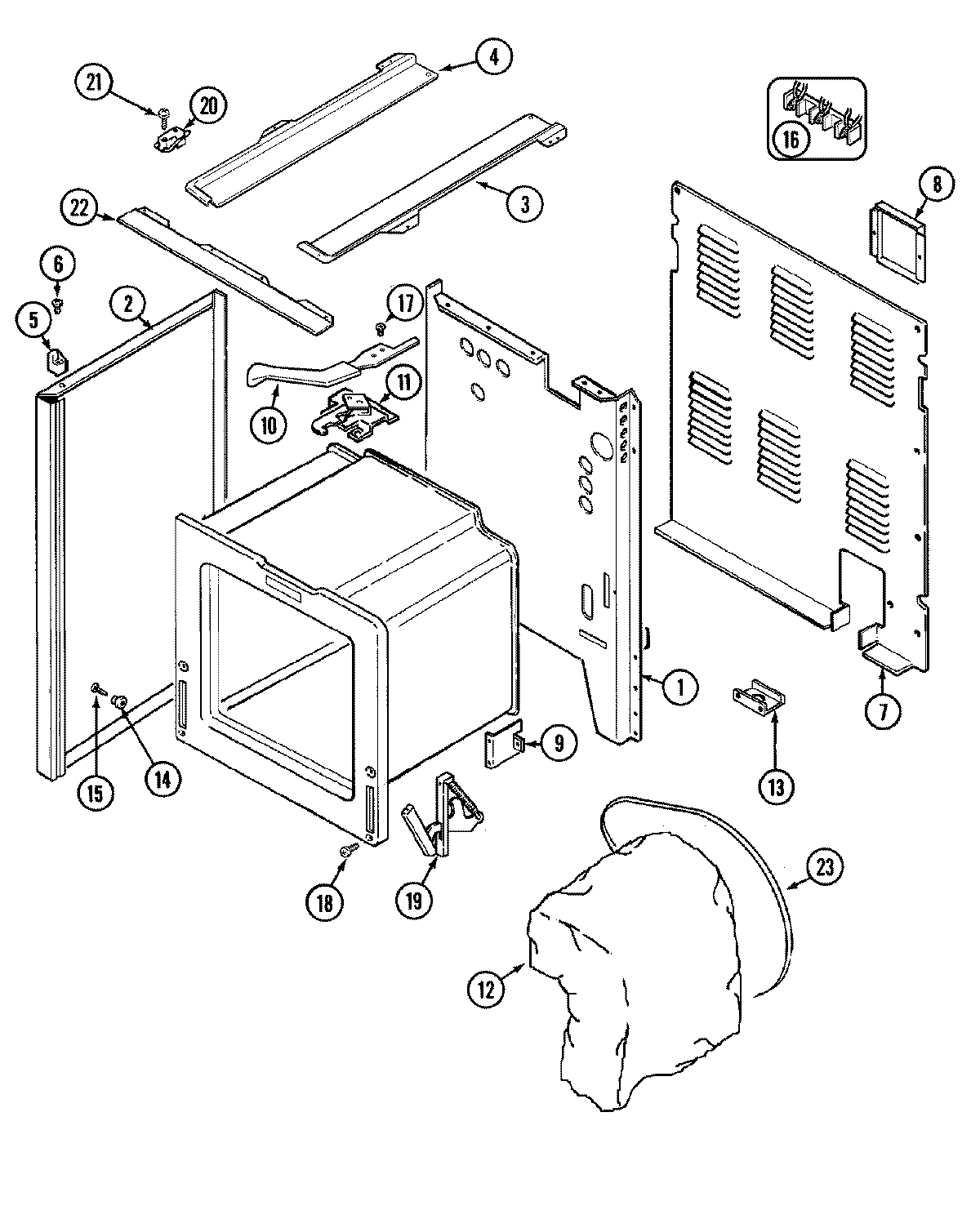

MER5730AGW 01 – BODY

Products

Position	Product
1	MAY 74001772
1	MAY 74006322
1	GROMMET
2	MAY 74003236
2	MAY 8270P078-60
3	MAY 74003378
4	MAY 74003379
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	MAY 74003241
8	MAY 4005F427-51
9	SUPPORT,OVEN REAR
10	MAY 74002973
11	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11	MAY 74003139
11	MAY 74001084
11	MAY 74003380
12	MAY 74003381
12	WP74010942 Whirlpool Insulation
13	W10190166 Whirlpool Service Bracket
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 74001449
15	W11693756 Whirlpool Screw Assembly
16	WPW10245259 Whirlpool Terminal Block
16	WP7103P027-60 Whirlpool Nut
16	SCREW (10ABX1.0-ZN)
18	WP4159193 Whirlpool Screw
19	WP74011140 Whirlpool Oven Hinge
20	MAY 74003630
20	MAY 74003383
21	MAY 912012
22	MAY 74003384
23	MAY 74003385
