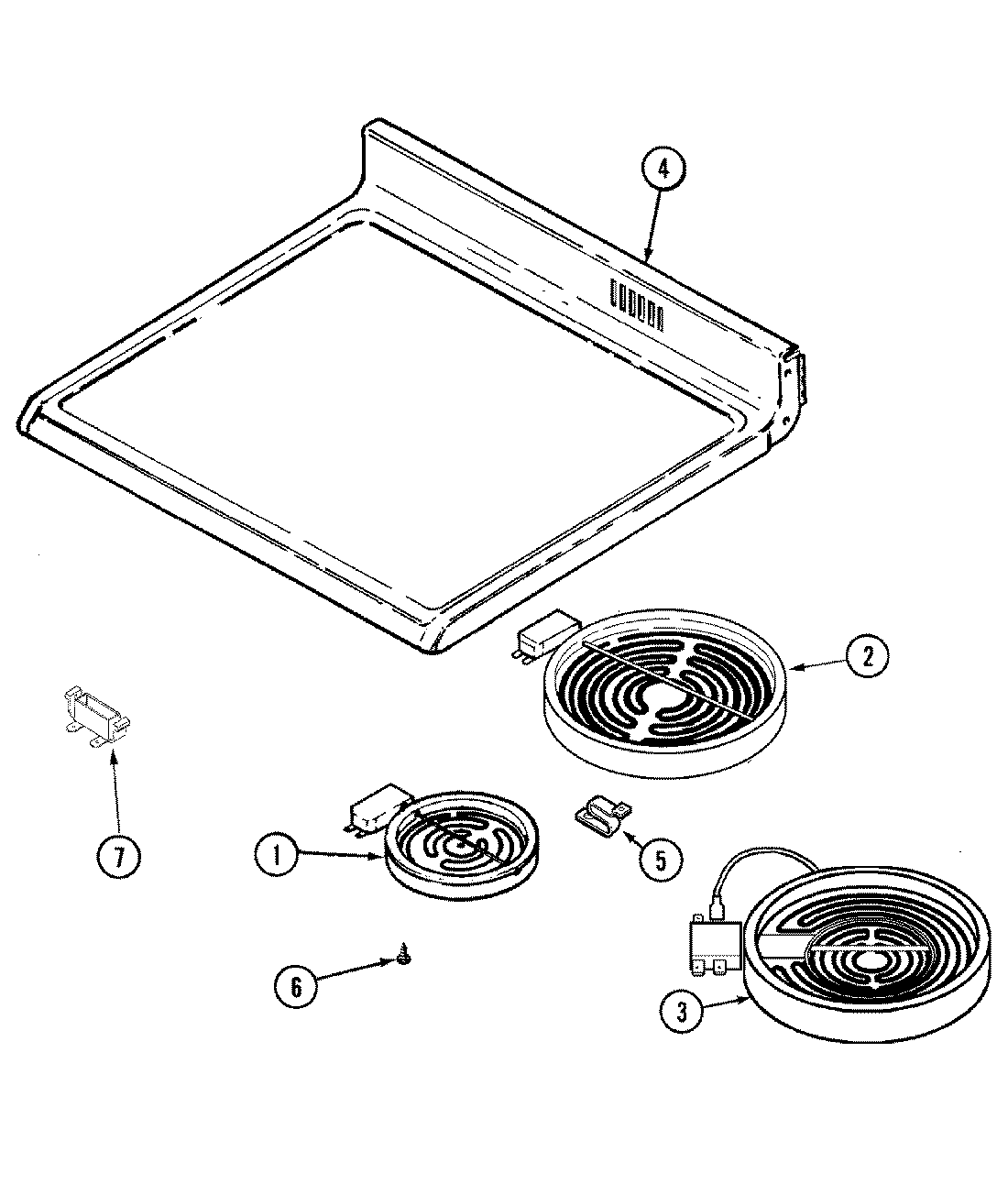

MER5730BAW 05 – TOP ASSEMBLY

MER5730BAW 05 – TOP ASSEMBLY

Written by

in

MER5730BAW 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
2W10823697 Whirlpool Surface Element
3W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
4MAY 8308P002-60
4W11189172 Whirlpool Glide Drawer
4MAY 20001100
4MAY 74006475
58004P093-60 Whirlpool Support C
6SCREW (6ABX.25-ZN)
7MAY 74006388
