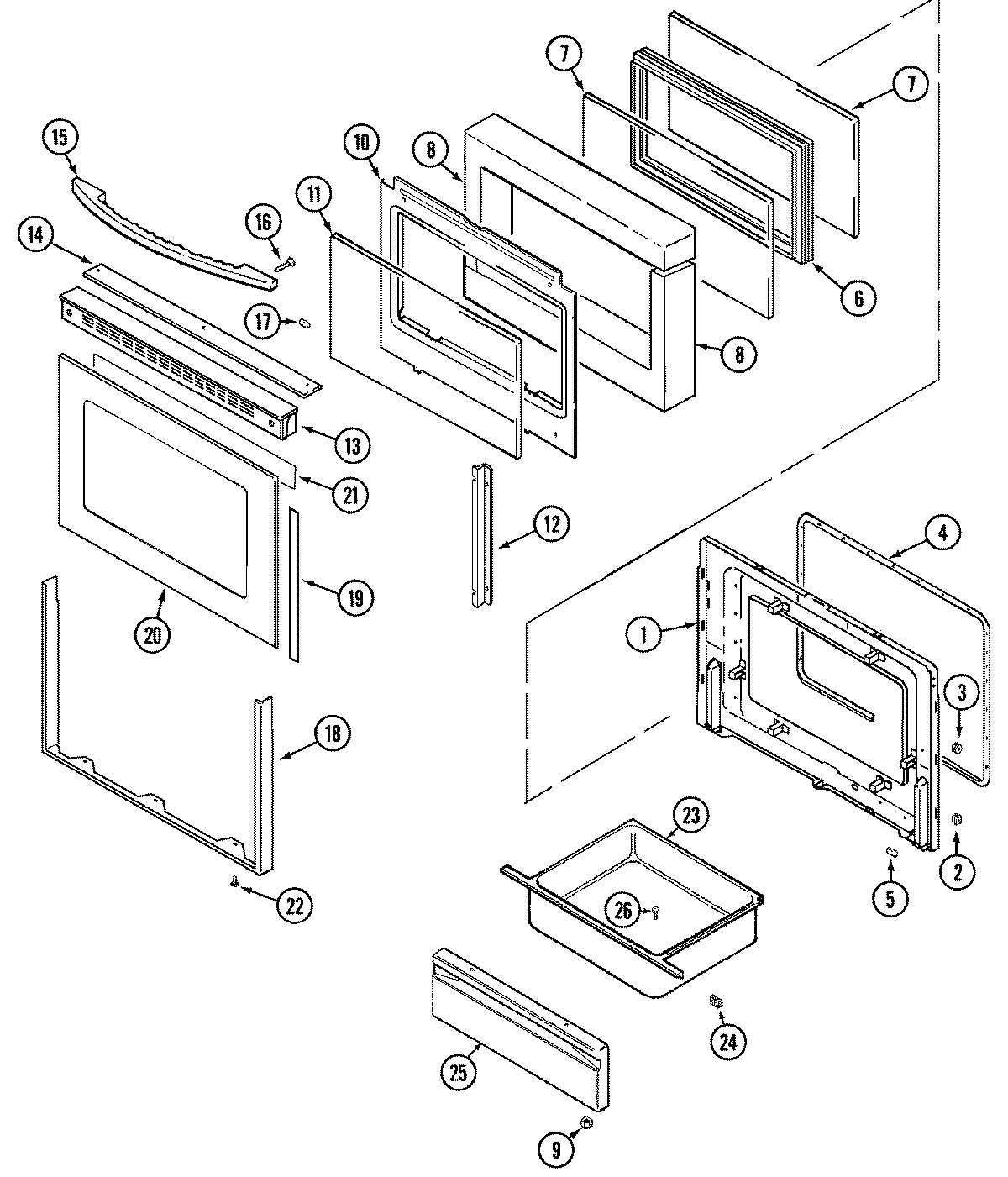

MER5750BAQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74006403
14	MAY 74004978
15	MAY 74006377
16	WP74006515 Whirlpool Washer Screw
17	MAY 71002092
18	WP74009541 Whirlpool Screw Assembly
18	MAY 74005162
19	MAY 74003660
20	MAY 74006405
21	TAPE, FOIL 29“ X 2“
22	SCREW
23	MAY 71003042
24	WP854334 Whirlpool Air Conditioner Sealing Strip
25	MAY 74005055
26	WP7101P072-60 Whirlpool Screw
