MER5750BAW 04 – OVEN/BASE

Products

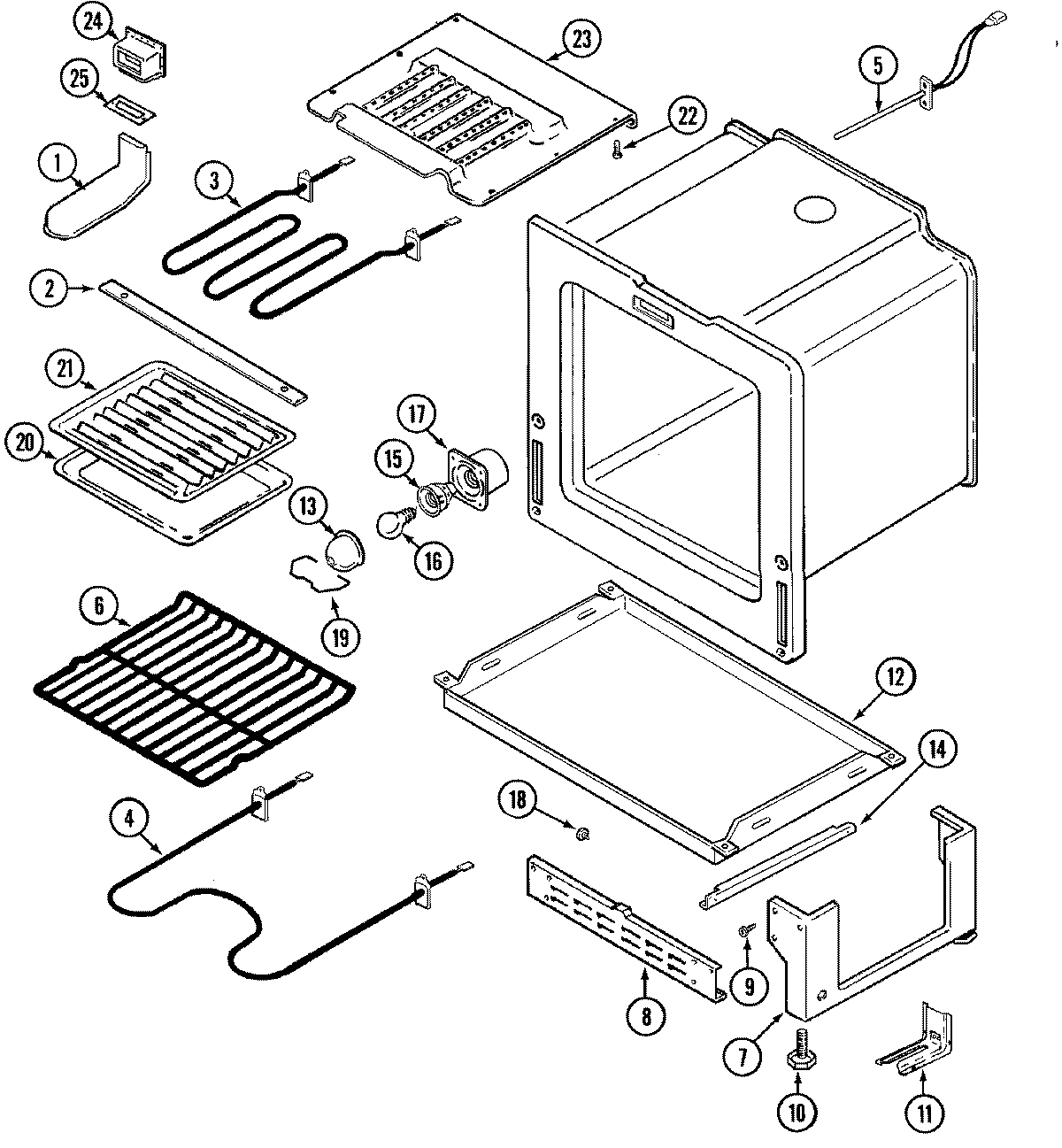

PositionProduct
1MAY 74003394
2WP400021-1 Whirlpool Screw
2MAY 74003563
3WP7406P218-60 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11WP7101P485-60 Whirlpool Anchor Tip
12MAY 74005250
13MAY 74003389
14SHAFT, STORAGE DRAWER ROLLER
14RUNNER, DRAWER
15MAY 74003387
16MAY Y707319
17MAY 74003388
18WP488130 Whirlpool Air Conditioner Nut
18WP74004078 Whirlpool Door Roller
19MAY 74003391
20MAY Y3401F02019
21MAY Y3413F01619
23MAY 3601F237-47
24MAY 3826W014-45
24SCREW
25MAY 74003285
