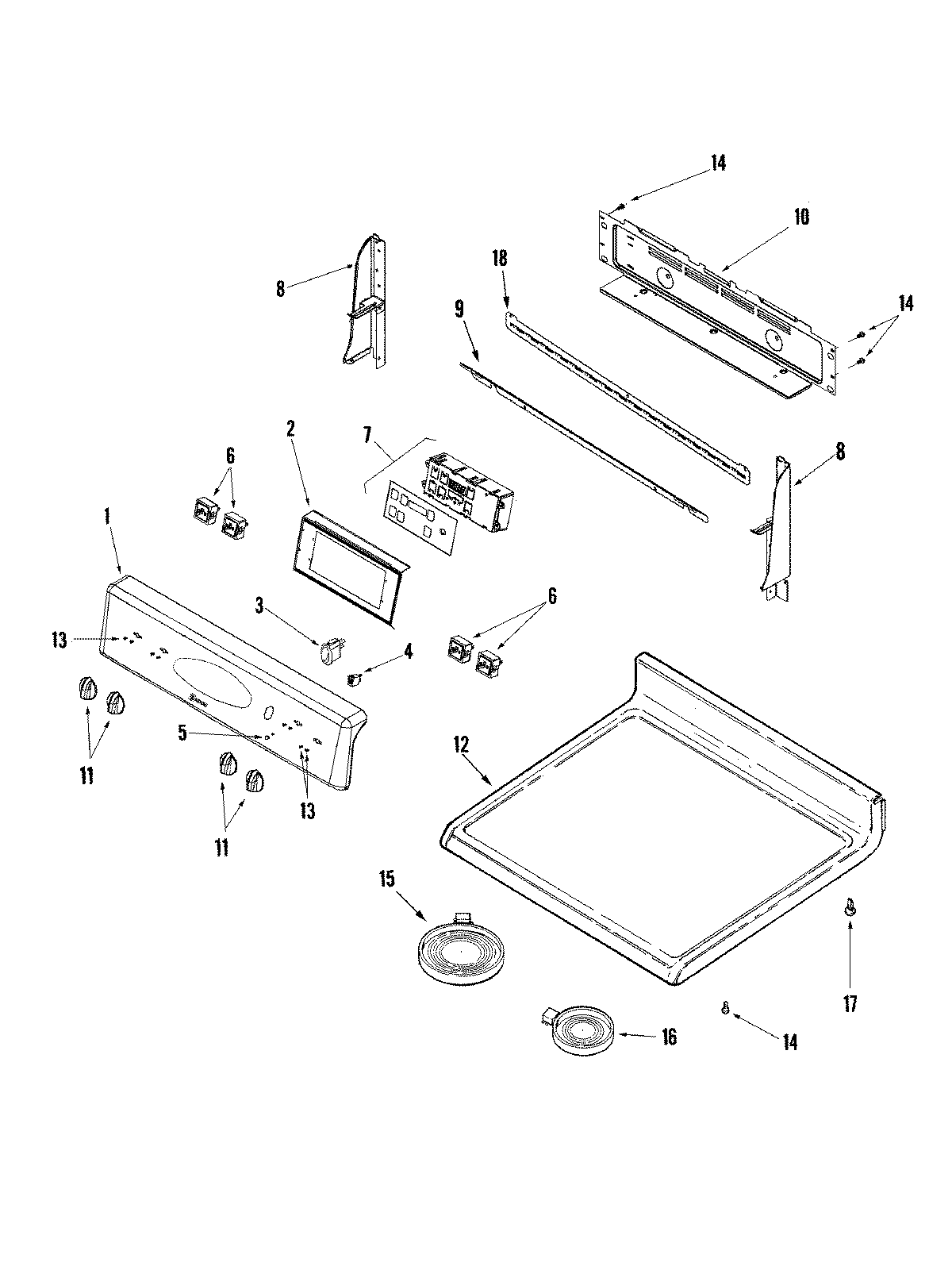

MER5751AAB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009073
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	5701M760-60 Whirlpool Electronic Control Board
8	WP98008545 Whirlpool Screw
8	MAY 74009673
8	MAY 74009670
9	MAY 74009701
10	MAY 74009335
12	MAY 74010435
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	WP90767 Whirlpool Screw
18	MAY 74009708
