MER5751AAQ 01 – BODY

MER5751AAQ 01 – BODY

Written by

in

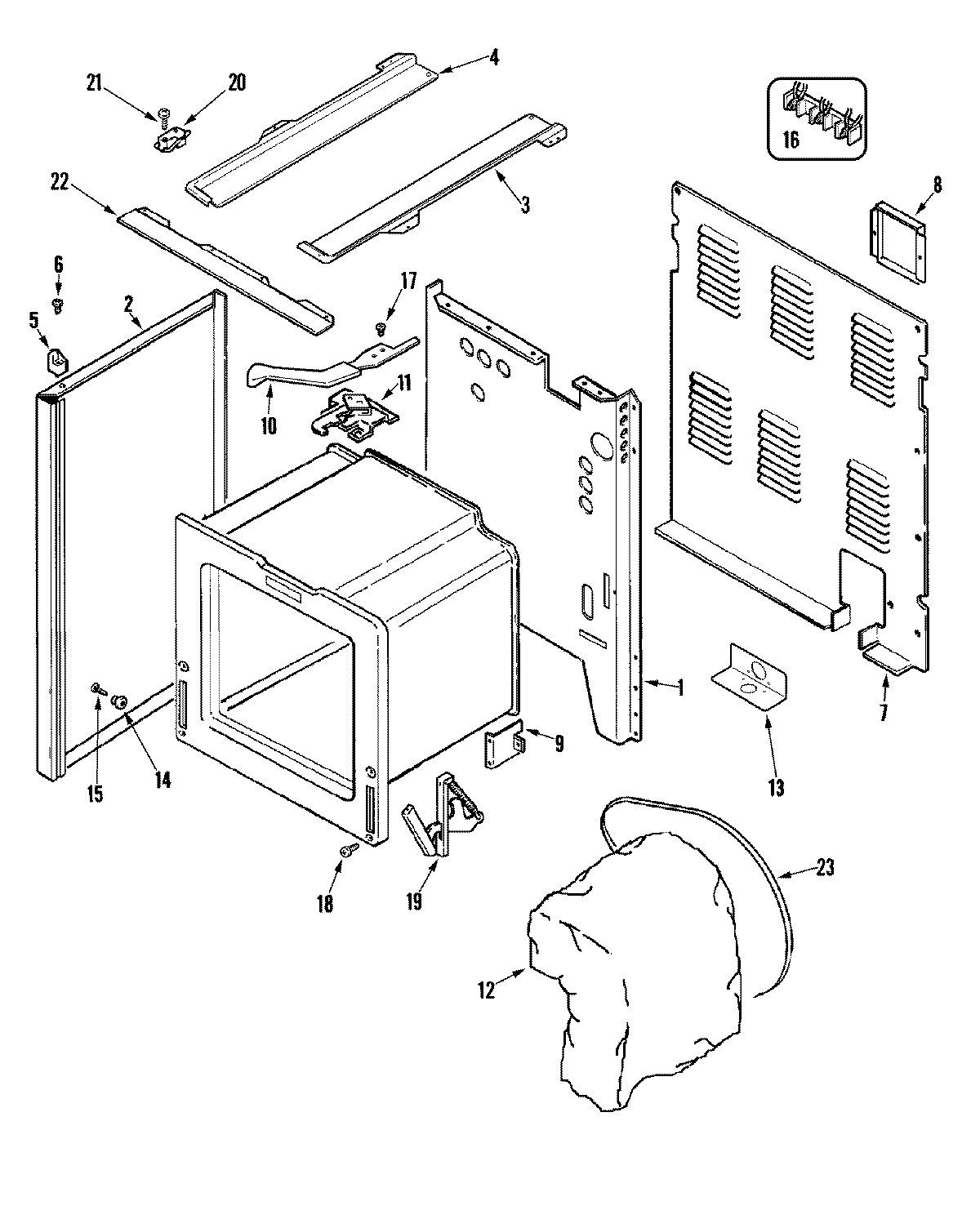

MER5751AAQ 01 – BODY

Products

PositionProduct
1MAY 74009677
2TAPE, FOIL (3“ WIDE)
2MAY 74004965
3MAY 74003378
4MAY 74003379
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW (8BX3/8-NI)
7MAY 74009744
8MAY 4005F427-51
9SUPPORT,OVEN REAR
9SCREW
10MAY 74003006
11MAY 74009710
12MAY 74009201
12WP74010942 Whirlpool Insulation
13W10190166 Whirlpool Service Bracket
14MAY 8004P024-60
15MAY 74001449
15W11693756 Whirlpool Screw Assembly
16WPW10245259 Whirlpool Terminal Block
17SCREW, LEVER
18SCREW (10-24X5/16-NI)
19WP74011140 Whirlpool Oven Hinge
20MAY 74009591
21MAY 7101P330-60
22MAY 74003384
23MAY 74003385
