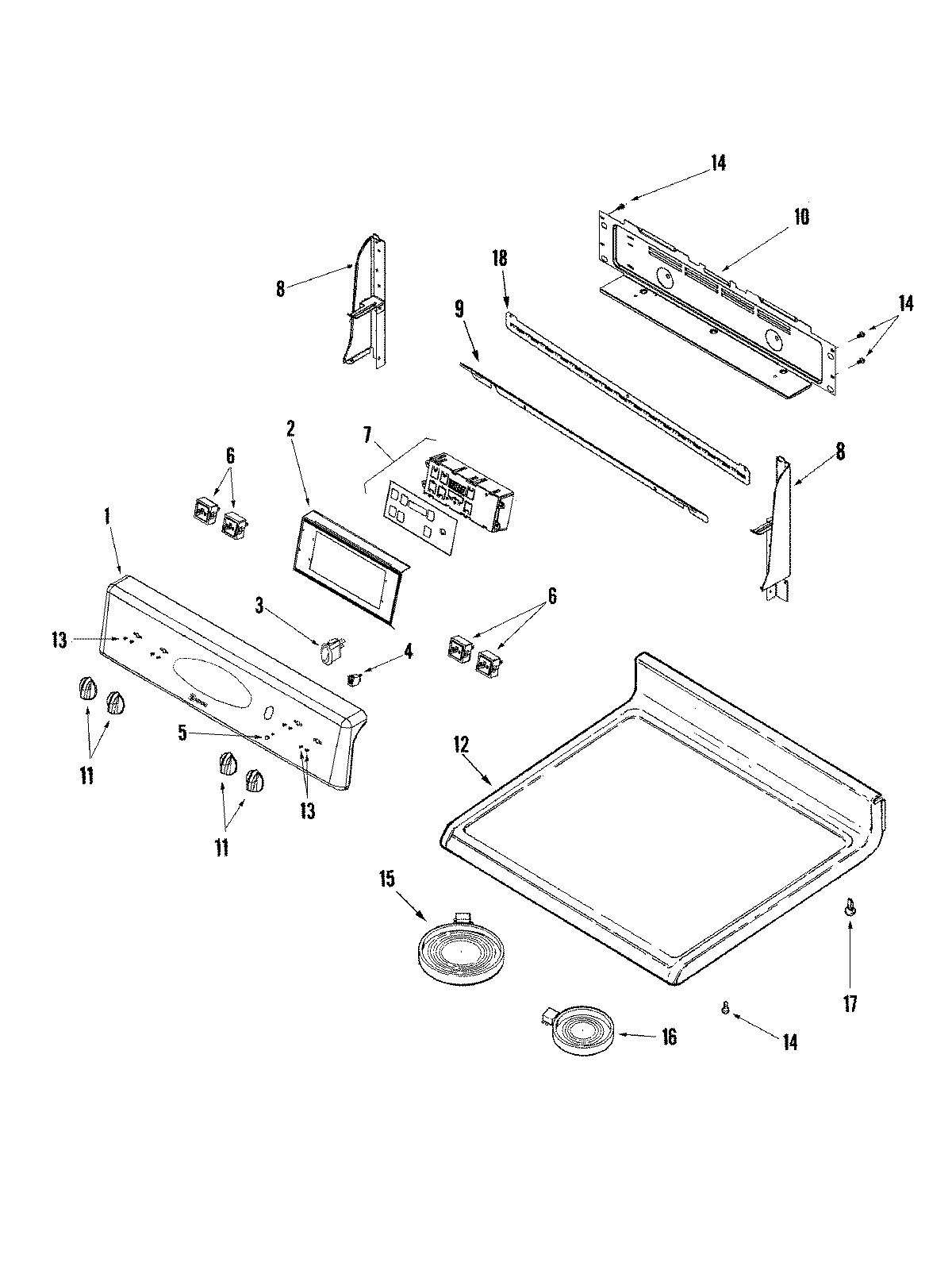

MER5751AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MER5751AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5751AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009072
2BRACKET, CLOCK
2NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
75701M760-60 Whirlpool Electronic Control Board
8MAY 74009671
8MAY 74009668
8WP74009541 Whirlpool Screw Assembly
9MAY 74009701
10MAY 74009335
11W11197495 Whirlpool Knob
12MAY 74010437
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009708
18WP90767 Whirlpool Screw
