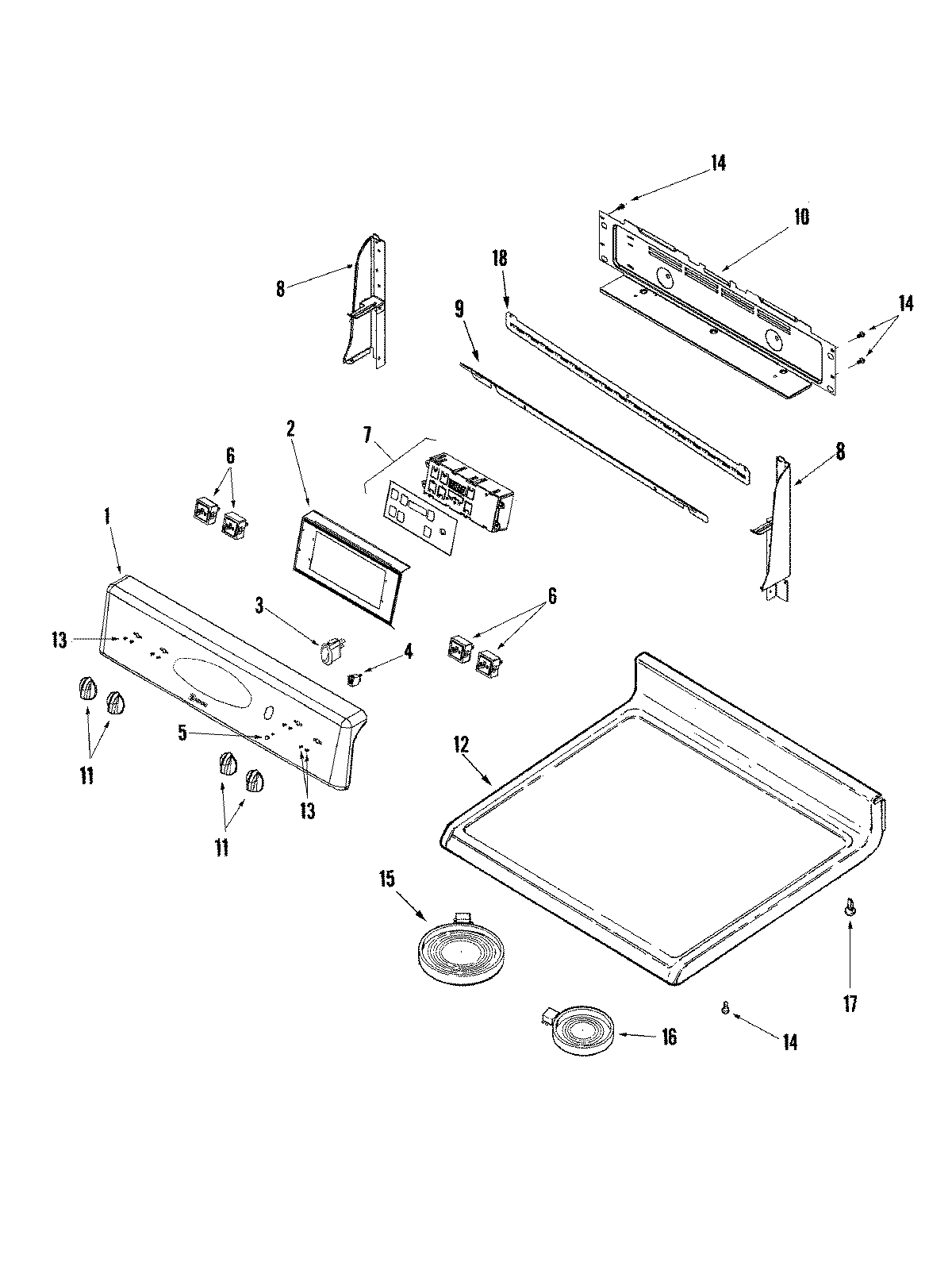

MER5751AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009071
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	BRACKET, CLOCK
3	WP74010226 Whirlpool RO Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	5701M760-60 Whirlpool Electronic Control Board
8	WP98008544 Whirlpool Screw Assembly
8	MAY 74009669
8	MAY 74009672
9	MAY 74009701
10	MAY 74009335
11	MAY 74009189
12	MAY 74010436
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	MAY 74009708
18	WP90767 Whirlpool Screw
