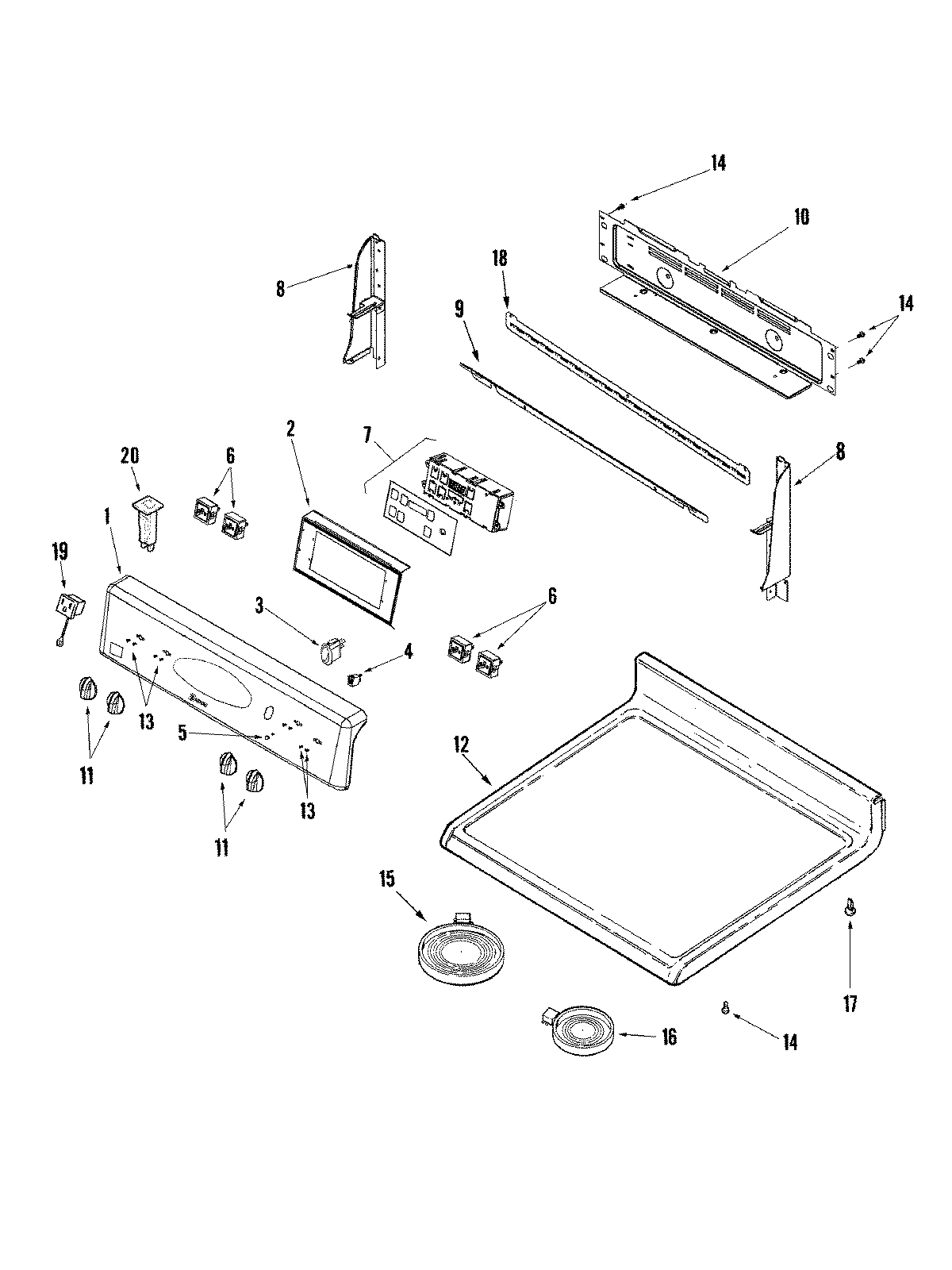

MER5751ACS 02 – CONTROL PANEL/TOP ASSEMBLY

MER5751ACS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5751ACS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009338
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
75701M760-60 Whirlpool Electronic Control Board
8WP98008545 Whirlpool Screw
8MAY 74010201
8MAY 74010202
9MAY 74009701
10MAY 74009335
12MAY 74010435
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009708
19MAY 71003069
20MAY 71003070
