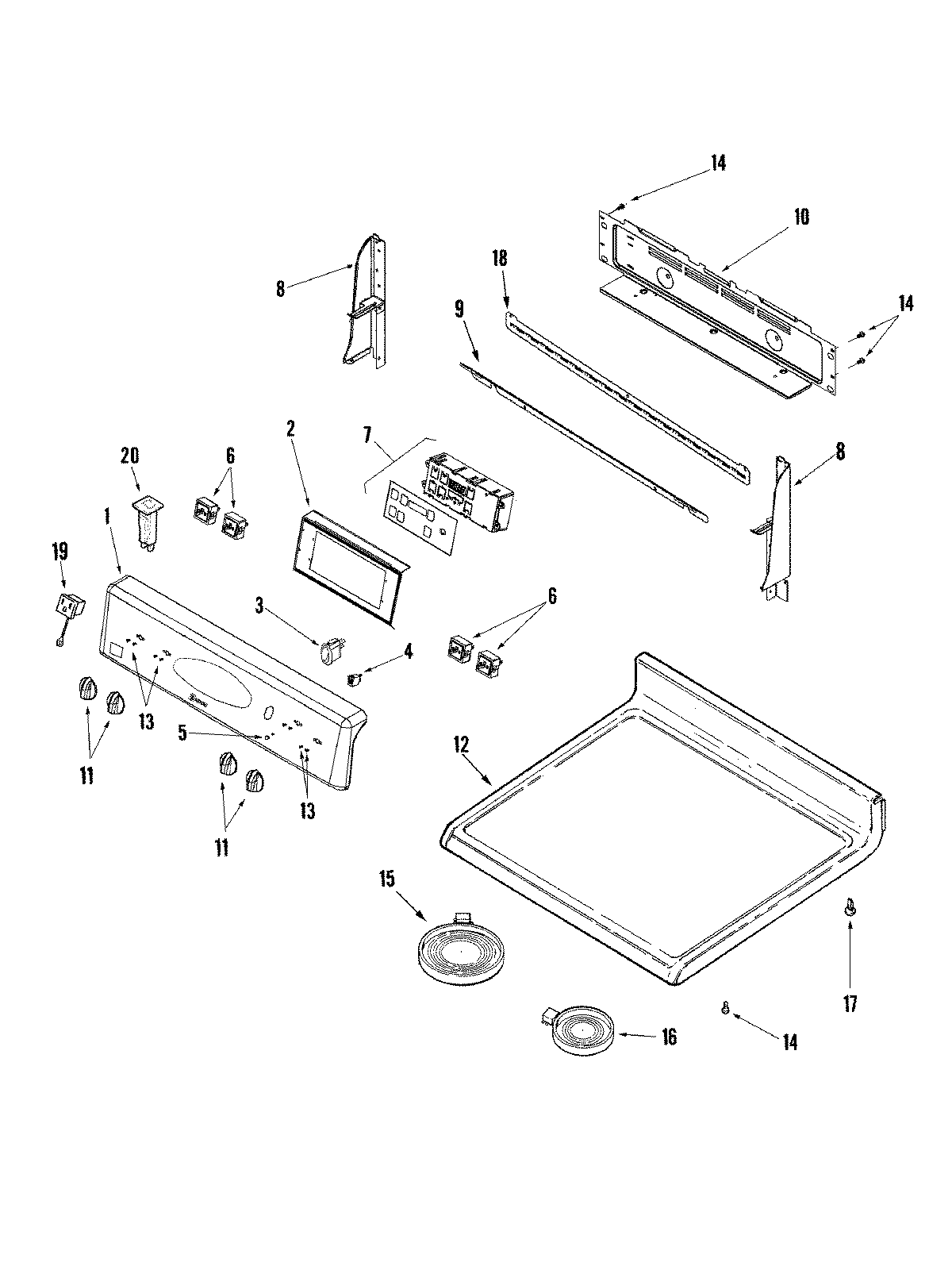

MER5751ACW 02 – CONTROL PANEL/TOP ASSEMBLY

MER5751ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5751ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009339
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
75701M760-60 Whirlpool Electronic Control Board
8MAY 74009669
8MAY 74009672
8WP98008544 Whirlpool Screw Assembly
9MAY 74009701
10MAY 74009335
11W11197495 Whirlpool Knob
12MAY 74010436
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009708
19MAY 71003068
20MAY 74009322
