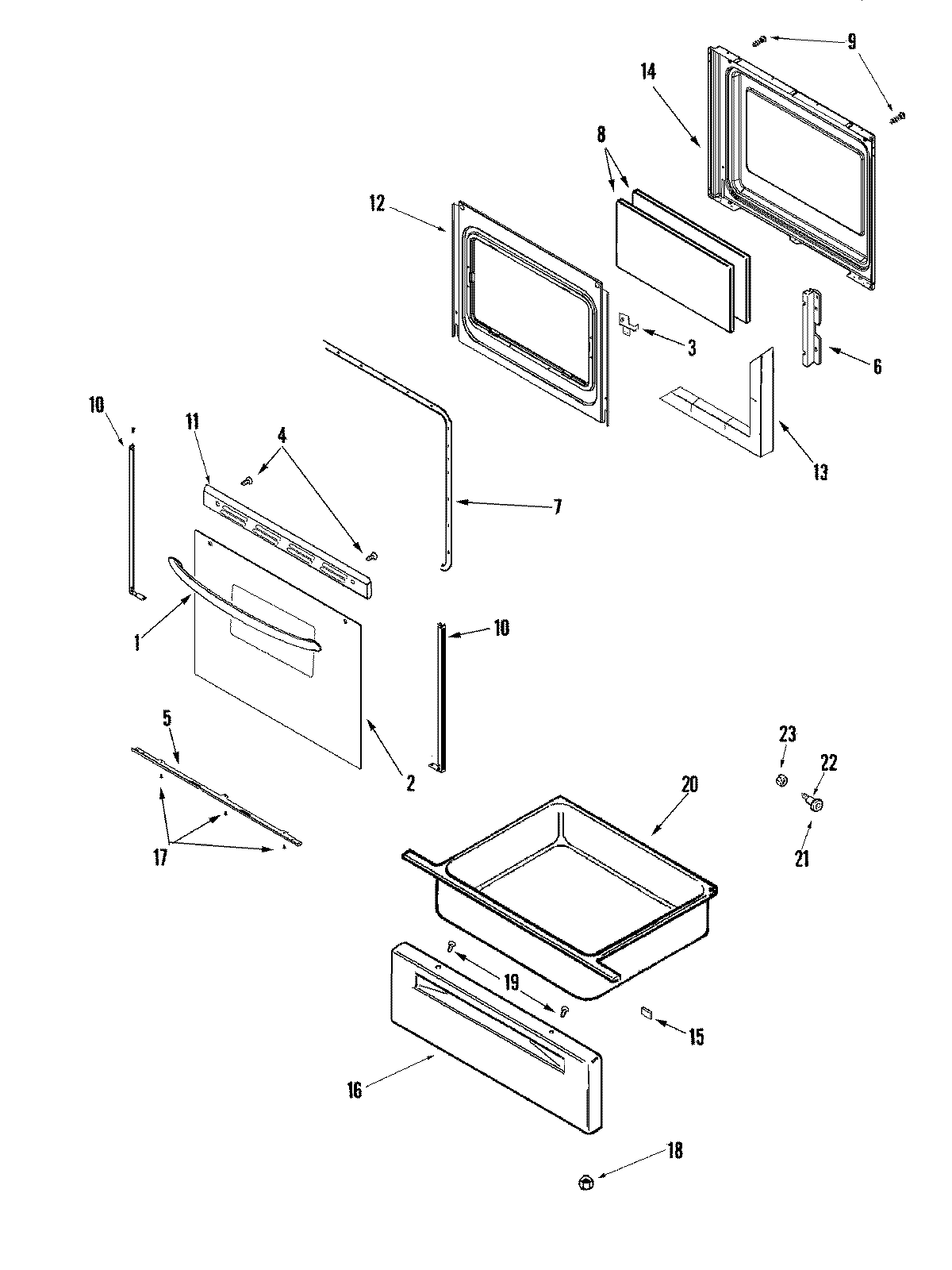

MER5751BAB 03 – DOOR/DRAWER

Products

Position	Product
1	74011777 Whirlpool Range Oven Door Handle
2	MAY 74009711
2	TAPE, FOIL 29“ X 2“
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
4	SCREW (10ABX1/4P TR ZN)
5	SUPPORT, GLASS (BLK)
6	MAY 74001844
7	GASKT-DOOR OVEN
8	GLASS, INNER
10	WP3608F117-70 Whirlpool Door Trim
10	WP74009014 Whirlpool Double Tape
10	WP3608F116-70 Whirlpool Door Trim
11	MAY 7101P356-60
11	SPACER, RUBBER (BLK-SQUARE)
11	MAY 74009689
12	BAFFLE, OVEN DOOR
13	MAY 74001842
14	NUT, SNAP (ROUND-BLK)
14	LINING, OVEN DOOR
15	WP74005546 Whirlpool RU Spacer
16	MAY 74009685
17	WP98008545 Whirlpool Screw
18	WPW10131078 Whirlpool Nut Assembly
19	SCREW
20	MAY 74008337
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
