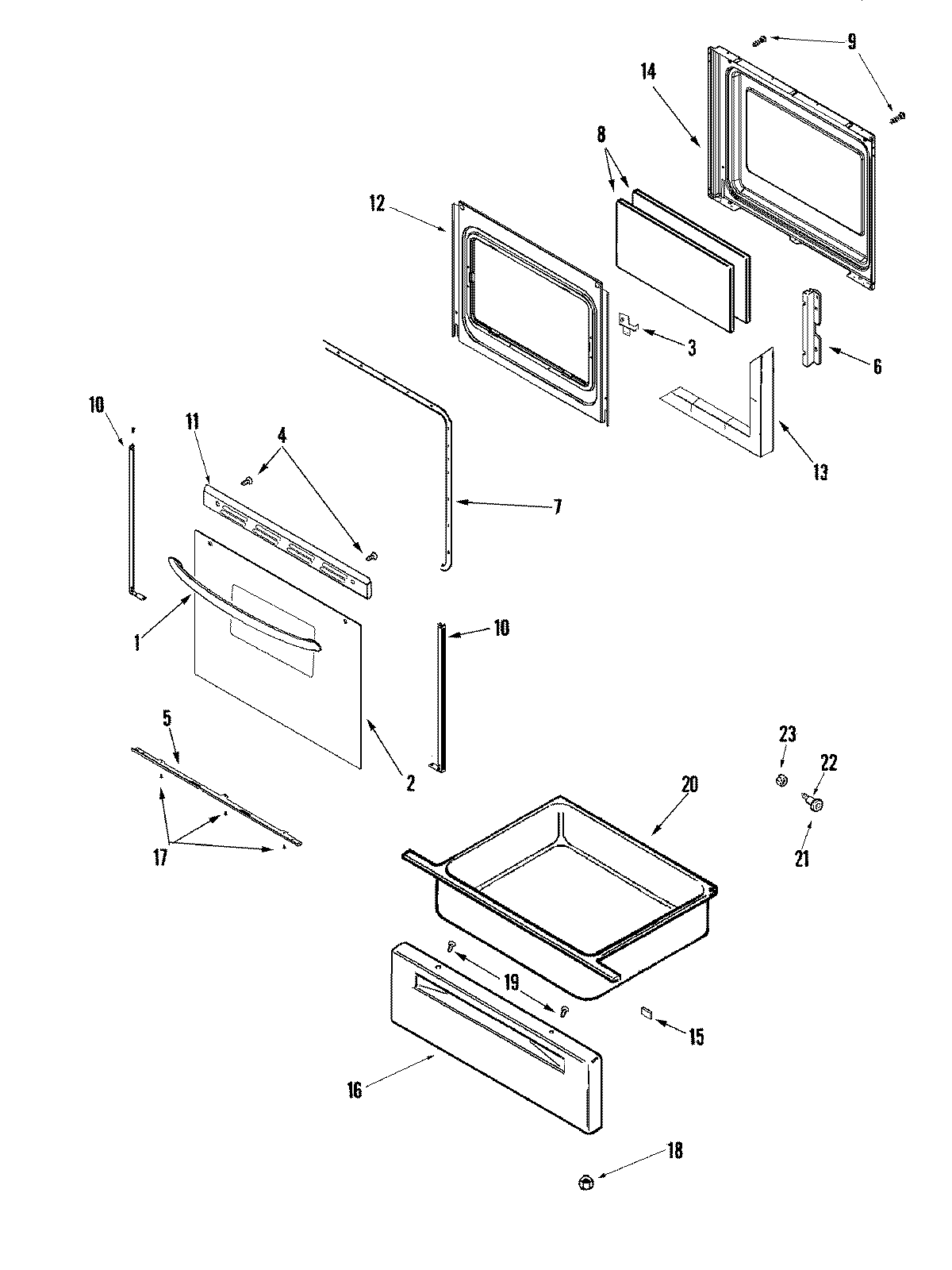

MER5751BAW 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74009727
2TAPE, FOIL 29“ X 2“
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4SCREW (10ABX1/4P TR ZN)
5WP3807F708-71 Whirlpool Support
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
10WP3608F116-71 Whirlpool Door Trim
10WP3608F117-71 Whirlpool Door Trim
10WP74009014 Whirlpool Double Tape
11WP3608F141-71 Whirlpool Door Trim
11MAY 7101P356-60
11SPACER, RUBBER (BLK-SQUARE)
12BAFFLE, OVEN DOOR
13MAY 74001842
14LINING, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
15WP74005546 Whirlpool RU Spacer
16MAY 74003399
17WP98008544 Whirlpool Screw Assembly
18WPW10131078 Whirlpool Nut Assembly
19SCREW
20MAY 74008337
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
