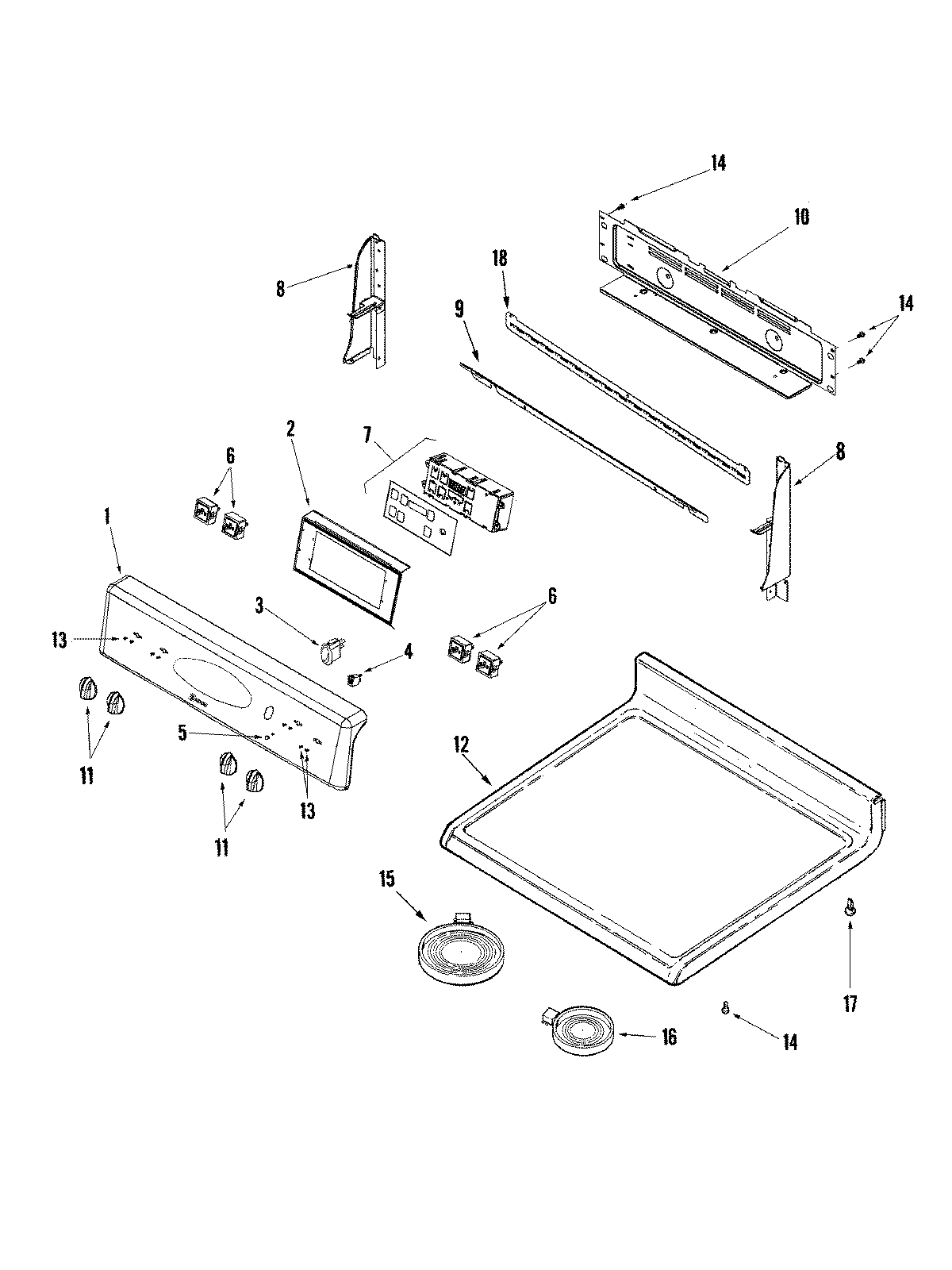

MER5752AAB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009073
2NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
75701M760-60 Whirlpool Electronic Control Board
8WP98008545 Whirlpool Screw
8MAY 74009673
8MAY 74009670
9MAY 74009701
10MAY 74009335
12MAY 74010435
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009708
