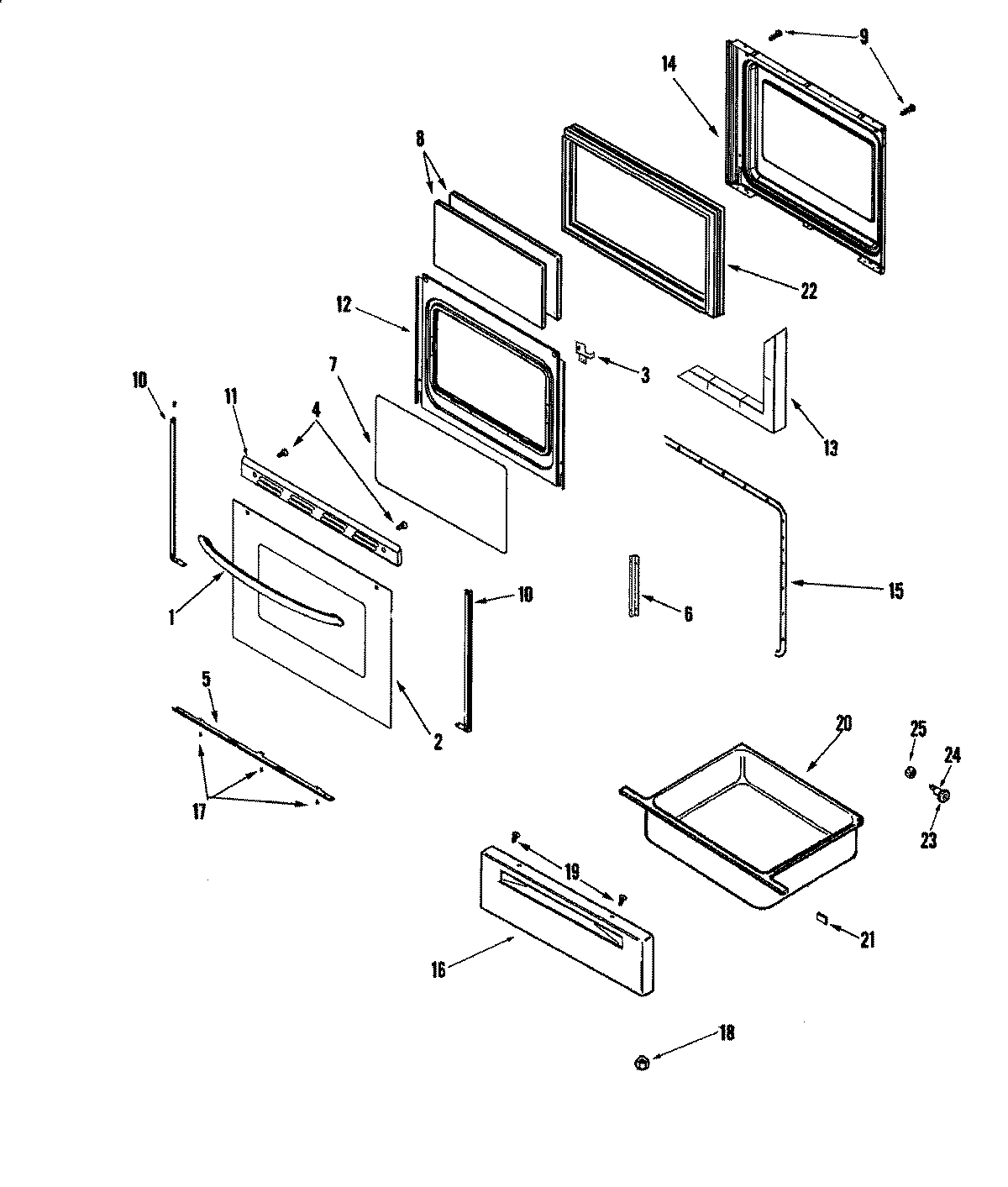

MER5752AAB 03 – DOOR/DRAWER

MER5752AAB 03 – DOOR/DRAWER

Written by

in

MER5752AAB 03 – DOOR/DRAWER

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74009734
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10WP3608F117-70 Whirlpool Door Trim
10WP3608F116-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
11MAY 74009689
12MAY 7101P356-60
12MAY 74009502
13INSULATION, OVEN DOOR
14MAY 74003642
15GASKT-DOOR OVEN
16MAY 74009685
17WP98008545 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
22FRAME, GLASS
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
