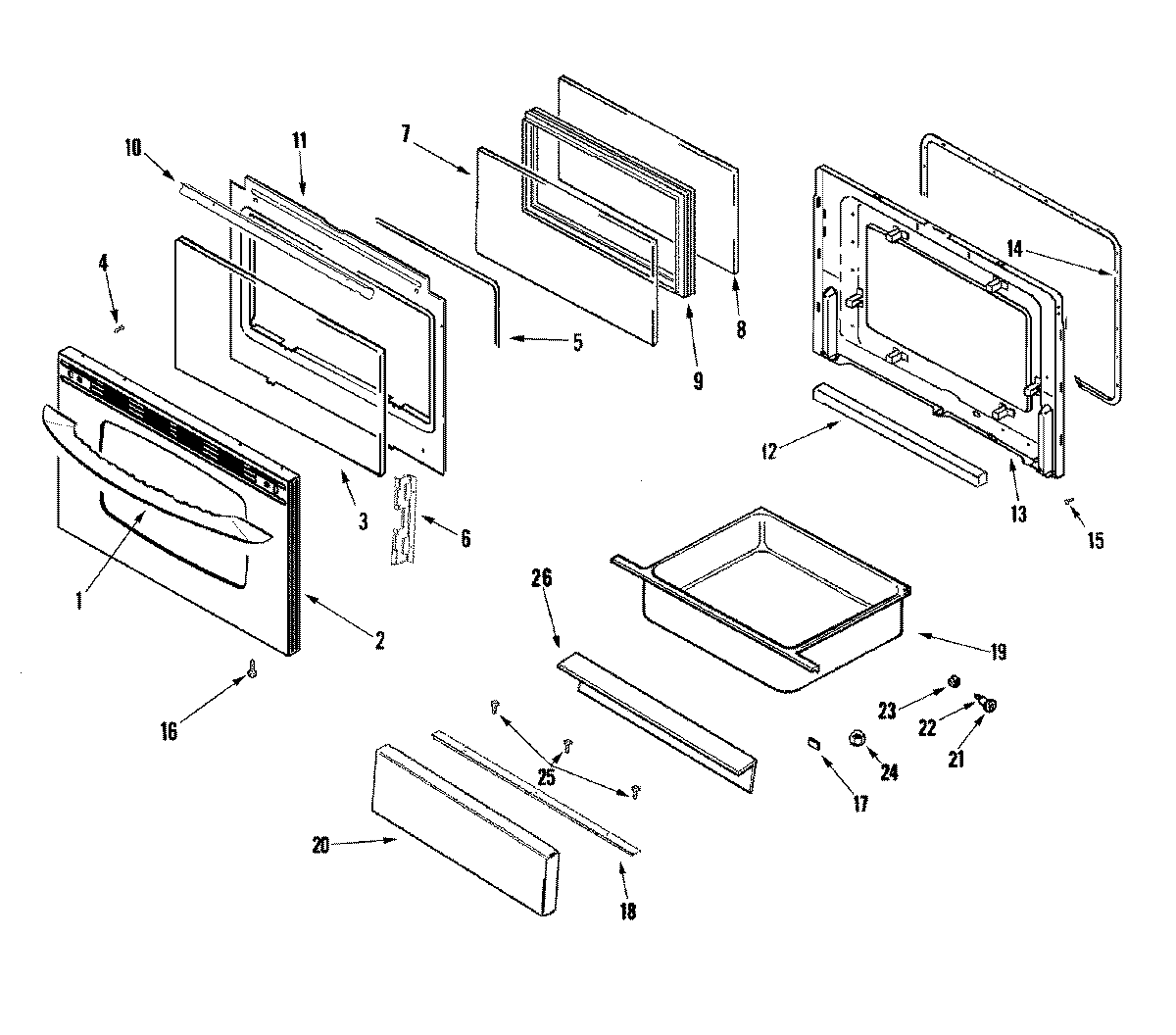

MER5752AAS 02 – DOOR/DRAWER (STL)

MER5752AAS 02 – DOOR/DRAWER (STL)

Written by

in

MER5752AAS 02 – DOOR/DRAWER (STL)

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74010232
2NUT, SNAP (ROUND-BLK)
2MAY 74010233
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
9FRAME, GLASS
10MAY 74010040
11MAY 74009502
12INSULATION, OVEN DOOR
13MAY 74003642
14GASKT-DOOR OVEN
17WP74005546 Whirlpool RU Spacer
18HANDLE, DRAWER (STL)
19MAY 74008337
19SCREW
20MAY 74009842
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24WPW10131078 Whirlpool Nut Assembly
