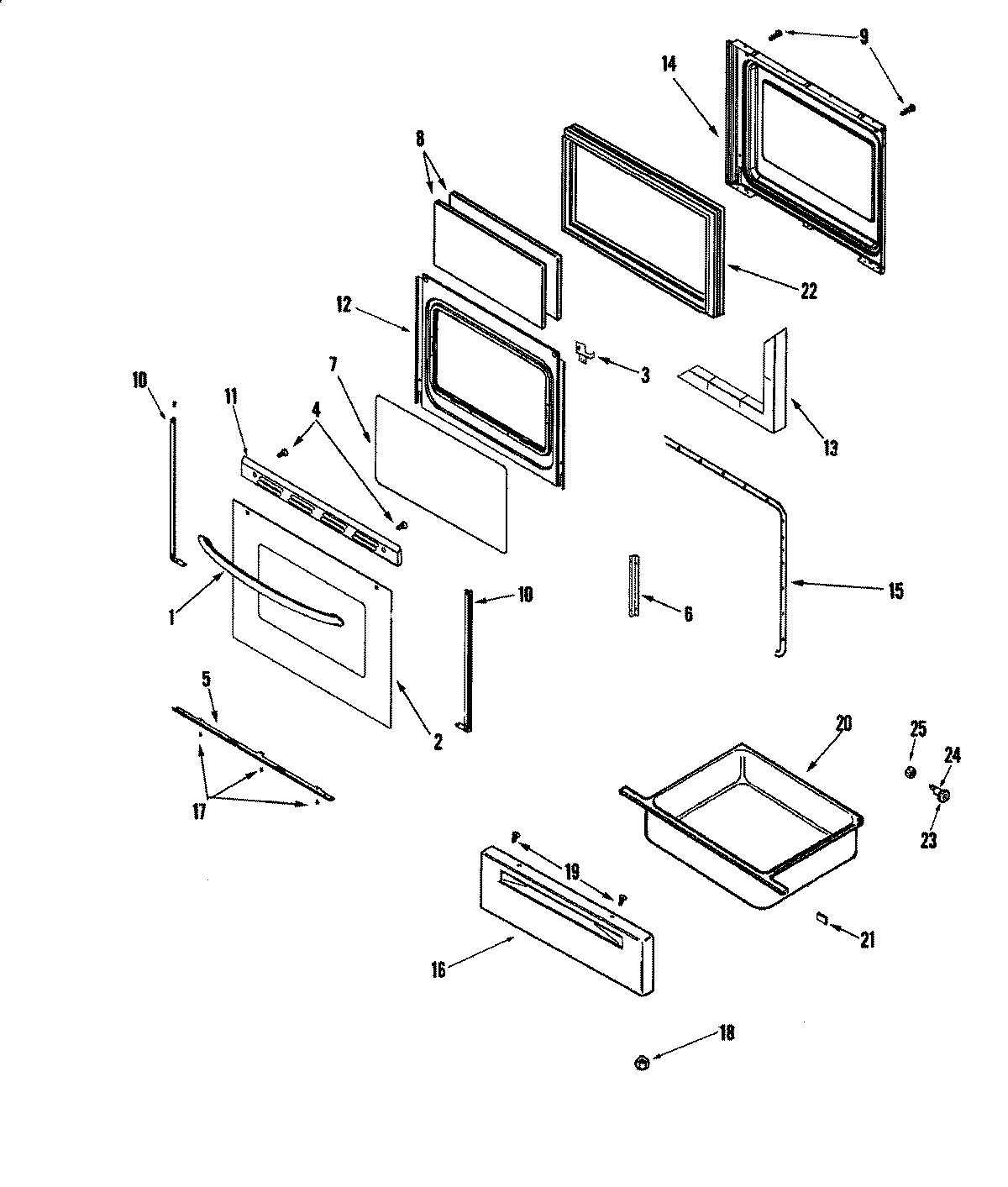

MER5752AAW 03 – DOOR/DRAWER

Products

Position	Product
1	WP74011675 Whirlpool Door Handle
2	MAY 74009732
3	3801F831-45 Whirlpool Bracket Assembly
3	3801F832-45 Whirlpool Bracket
4	WP74006515 Whirlpool Washer Screw
4	WP98008545 Whirlpool Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
9	SCREW
10	WP3608F117-71 Whirlpool Door Trim
10	WP3608F116-71 Whirlpool Door Trim
10	WP74009014 Whirlpool Double Tape
11	WP3608F141-71 Whirlpool Door Trim
12	MAY 74009502
12	MAY 7101P356-60
13	INSULATION, OVEN DOOR
14	MAY 74003642
15	GASKT-DOOR OVEN
16	MAY 74003399
17	WP98008544 Whirlpool Screw Assembly
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74005546 Whirlpool RU Spacer
22	FRAME, GLASS
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	WP488130 Whirlpool Air Conditioner Nut
