MER5752ACS 03 – DOOR/DRAWER (STL)

MER5752ACS 03 – DOOR/DRAWER (STL)

Written by

in

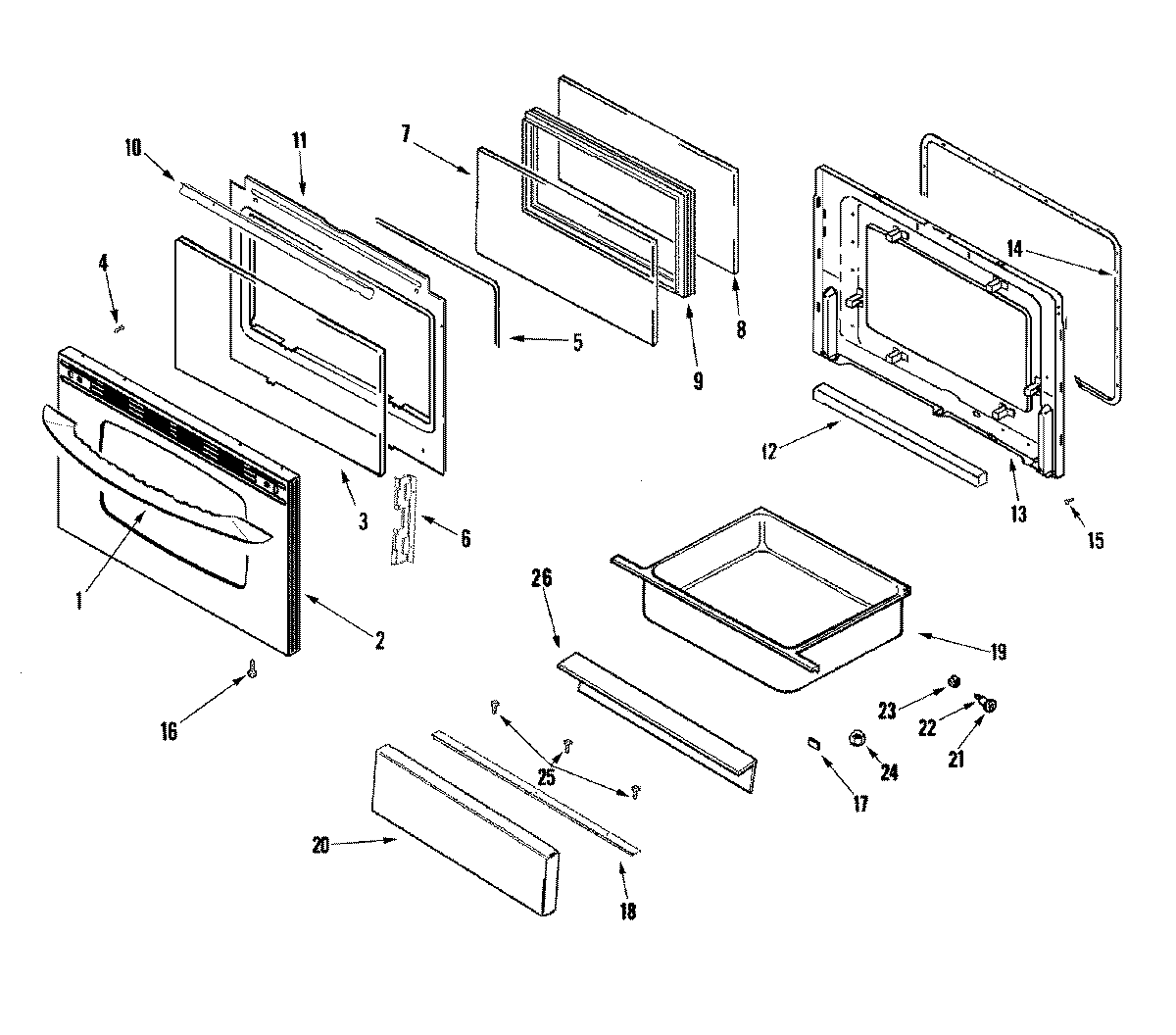

MER5752ACS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74011772
174011777 Whirlpool Range Oven Door Handle
2MAY 74010233
2NUT, SNAP (ROUND-BLK)
2MAY 74010232
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
93801F886-51 Whirlpool Mounting Bracket
9FRAME, GLASS
9SCREW, 8 X 1/2
10MAY 74010040
11MAY 74009502
113601F373-51 Whirlpool Baffle
12INSULATION, OVEN DOOR
13MAY 74003642
13LINING, DOOR
14GASKT-DOOR OVEN
17WP74005546 Whirlpool RU Spacer
18HANDLE, DRAWER (STL)
19MAY 74008337
19SCREW
20MAY 74009842
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
