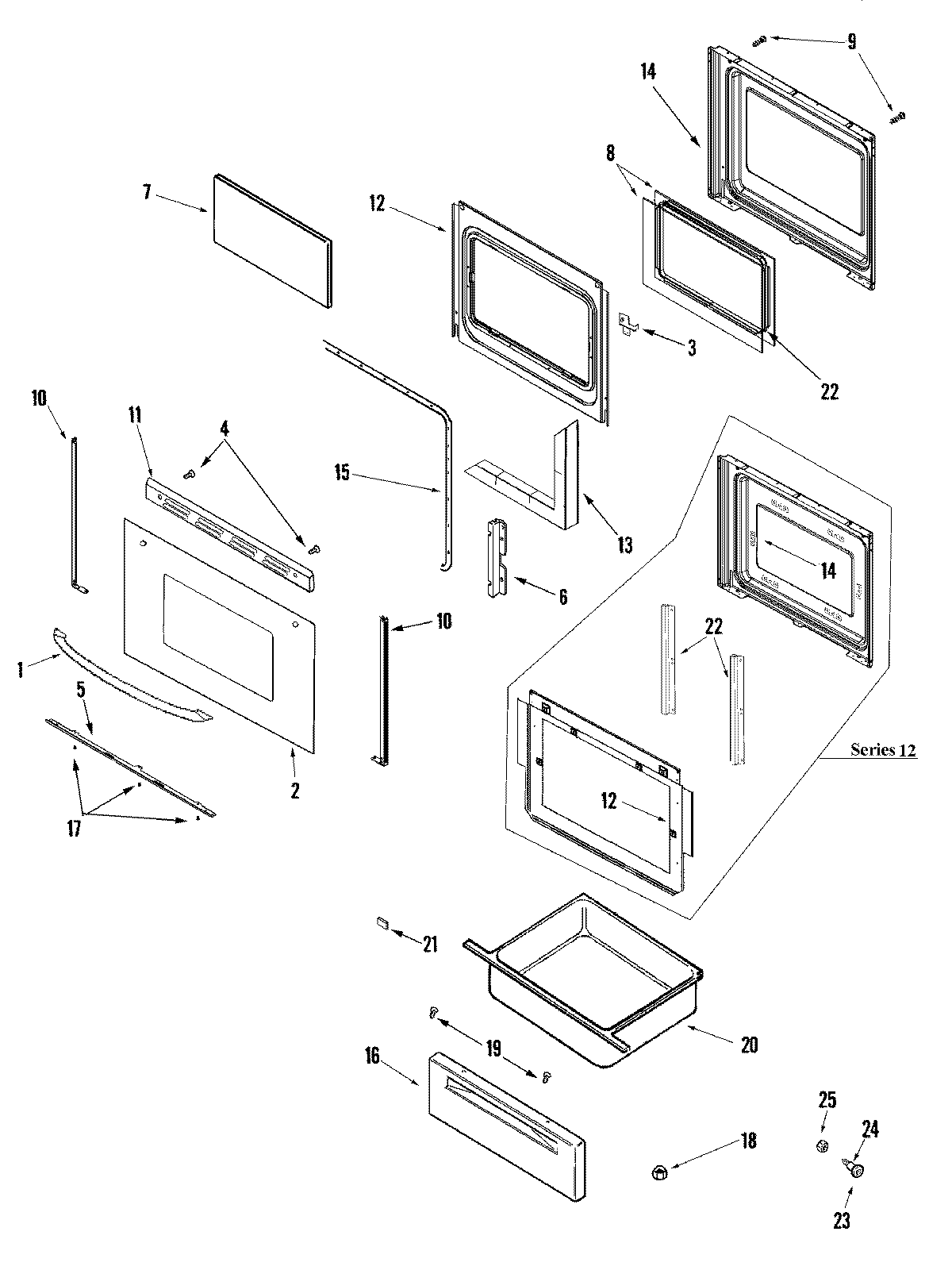

MER5752BAB 03 – DOOR/DRAWER

Products

Position	Product
1	74011777 Whirlpool Range Oven Door Handle
2	MAY 74009734
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
4	MAY 74001521
4	MAY 74006295
5	SUPPORT, GLASS (BLK)
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
10	WP74004224 Whirlpool Tape
10	WP3608F117-70 Whirlpool Door Trim
10	SPACER, RUBBER (BLK-SQUARE)
10	WP3608F116-70 Whirlpool Door Trim
11	MAY 7101P356-60
11	MAY 74009689
12	3601F373-51 Whirlpool Baffle
12	MAY 74009502
12	SCREW
13	INSULATION, OVEN DOOR
14	LINING, DOOR
14	MAY 74003642
14	NUT, SNAP (ROUND-BLK)
15	GASKT-DOOR OVEN
16	MAY 74009685
17	WP98008545 Whirlpool Screw
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74005546 Whirlpool RU Spacer
22	SCREW, 8 X 1/2
22	3801F886-51 Whirlpool Mounting Bracket
22	FRAME, GLASS
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	WP488130 Whirlpool Air Conditioner Nut
