MER5752BAB 04 – OVEN/BASE

MER5752BAB 04 – OVEN/BASE

Written by

in

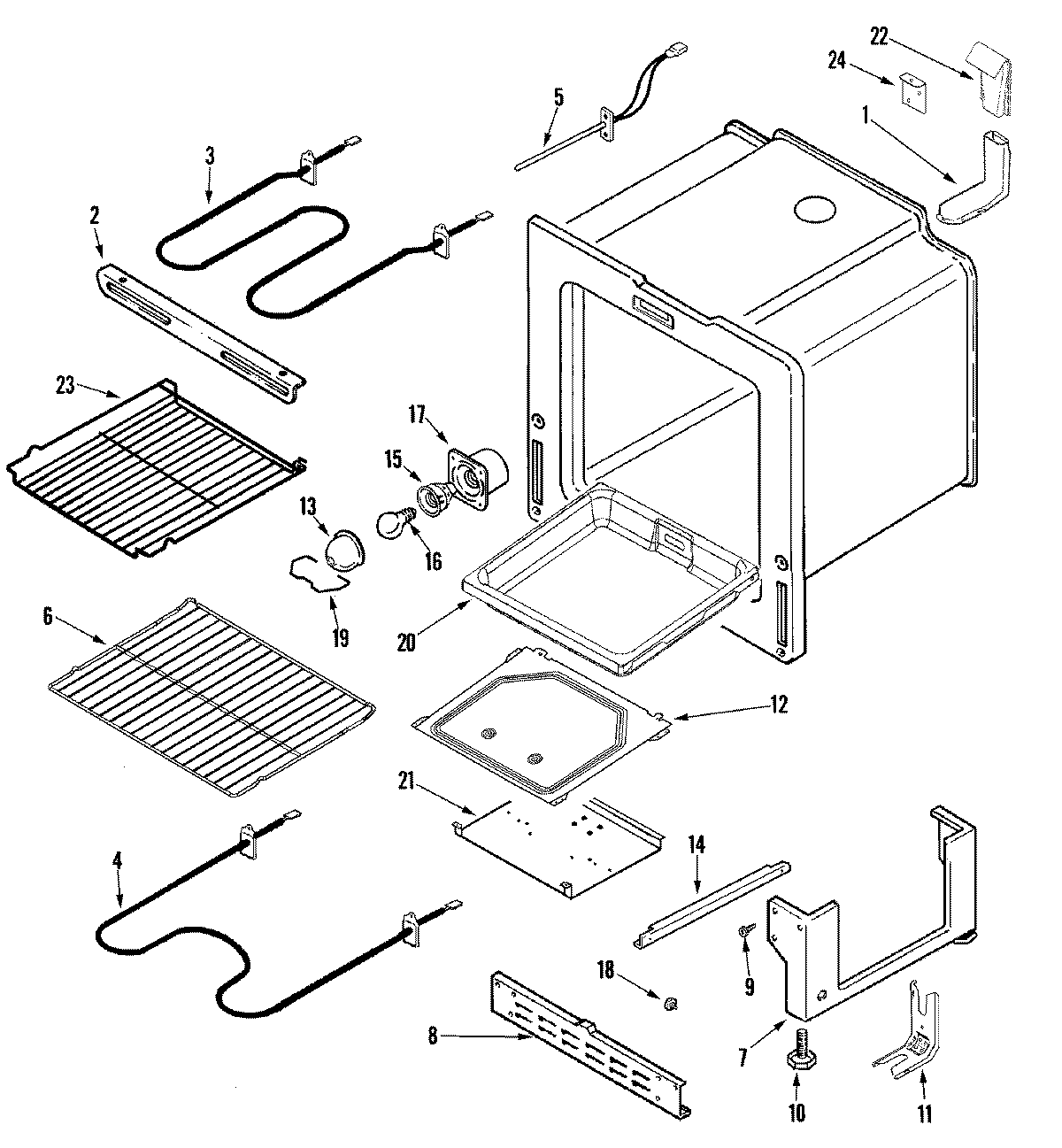

MER5752BAB 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003394
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP7406P438-60 Whirlpool Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11MAY 7101P356-60
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
123601F373-51 Whirlpool Baffle
12MAY 74009502
12RETAINER, INSULATION (BOTTOM)
12SCREW
13INSULATION, OVEN DOOR
14MAY 74003642
14LINING, DOOR
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16MAY 74009685
17WP98008545 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
25WP488130 Whirlpool Air Conditioner Nut
