MER5752BAB15 04 – DOOR PARTS
Written by
in

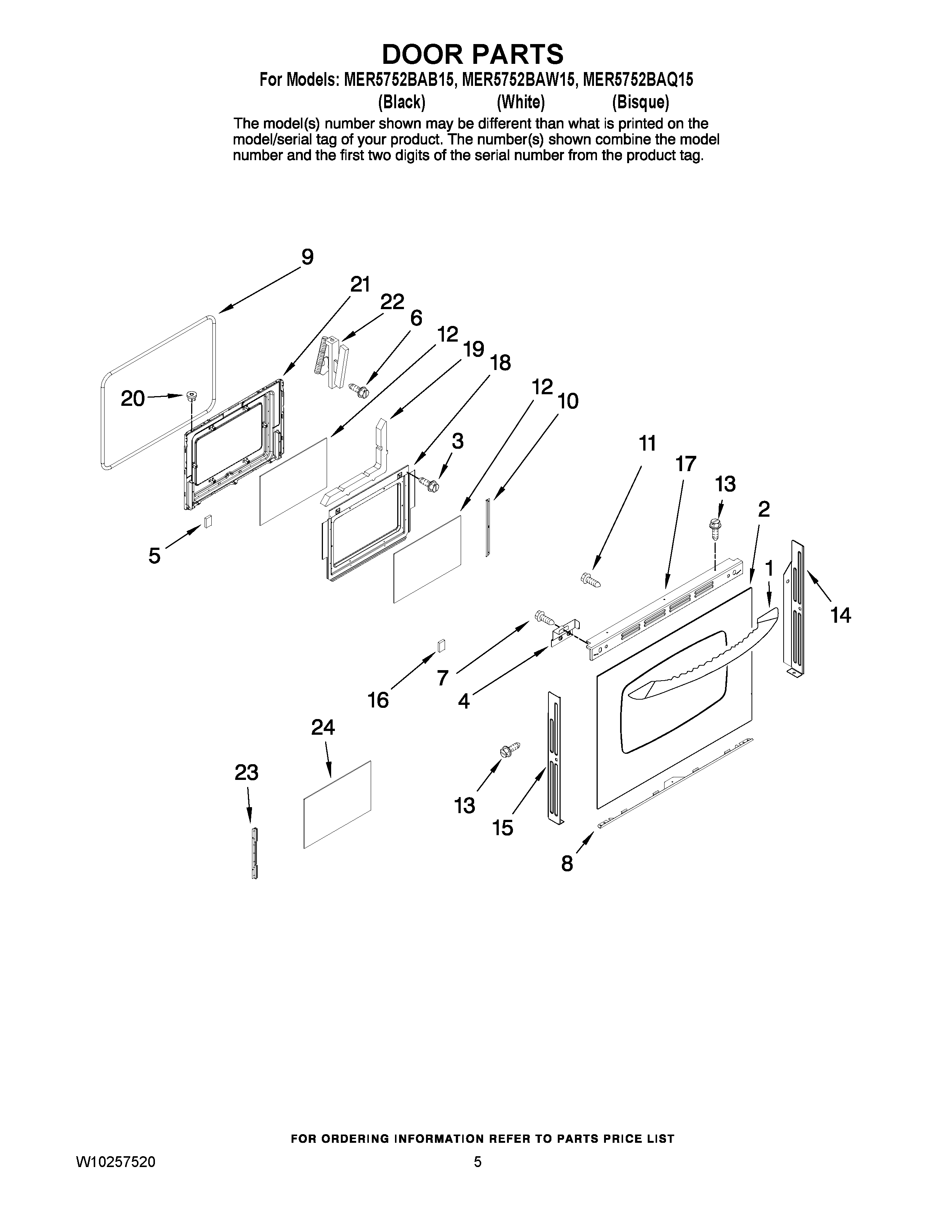

MER5752BAB15 04 – DOOR PARTS
Products
Position
Product
1
MAY 7701P524-60
1
MAY 7701P523-60
1
MAY 7701P522-60
2
MAY 12002395
2
MAY 12002396
4
MAY 3801F831-45
4
MAY 3801F832-45
5
MAY 8010P130-60
6
SCREW (10ABX1/4P TR ZN)
7
MAY 7101P681-60
8
Support, Glass (Bisque)
8
MAY 3807F708-71
8
MAY 3807F708-70
9
MAY W10162384
10
BRACKET, INNER GLASS
11
MAY 7101P376-60
12
Glass, Inner
13
Screw (2) (White)
13
Screw (2) (Bisque)
13
Screw (2) (Black)
14
MAY 3608F116-70
14
Trim, Door (Rt) (Bisque)
14
MAY 3608F116-71
15
Trim, Door (Lt) (Bisque)
15
MAY 3608F117-70
15
MAY 3608F117-71
16
MAY 8270P139-60
17
MAY 3608F141-70
17
MAY 3608F141-71
17
Trim, Door Top (Bisque)
18
MAY 3601F373-51
19
MAY 7002P246-60
20
MAY 7103P141-60
21
MAY 2402W312-19
22
MAY 7106P141-60
23
RETAINER, DR GLASS
24
Glass, Door
←
