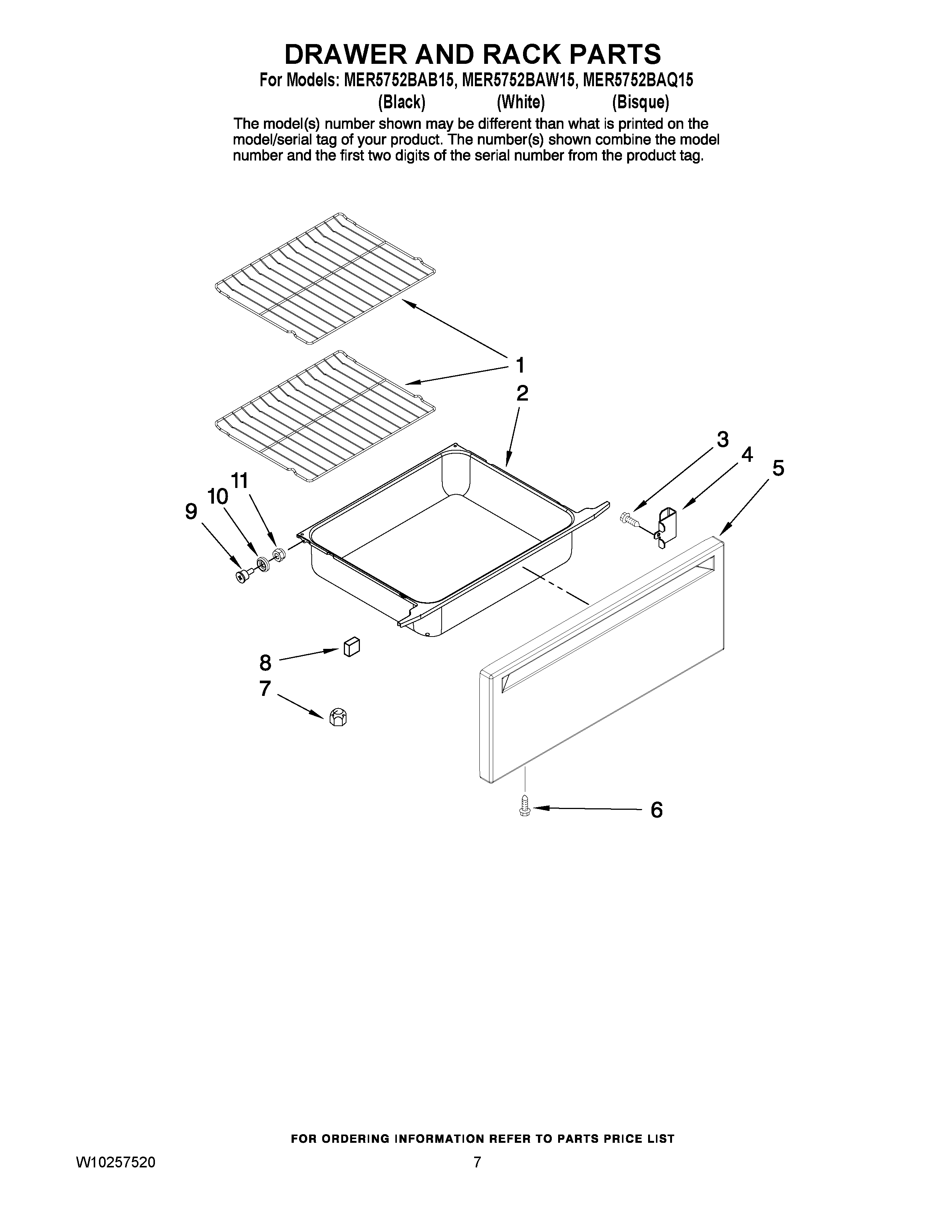

MER5752BAB15 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK, OVEN (2)
2	DRAWER, STORAGE
3	WP7101P072-60 Whirlpool Screw
4	MAY 3801F887-51
5	MAY 2416F102-78
5	MAY 2416F102-71
5	MAY 2416F102-70
6	Screw (2) (Bisque)
6	Screw (2) (White)
6	Screw (2) (Black)
7	WPW10131078 Whirlpool Nut Assembly
8	MAY 8010P130-60
9	MAY 7118P032-60
10	MAY W10272883
11	WP488130 Whirlpool Air Conditioner Nut
