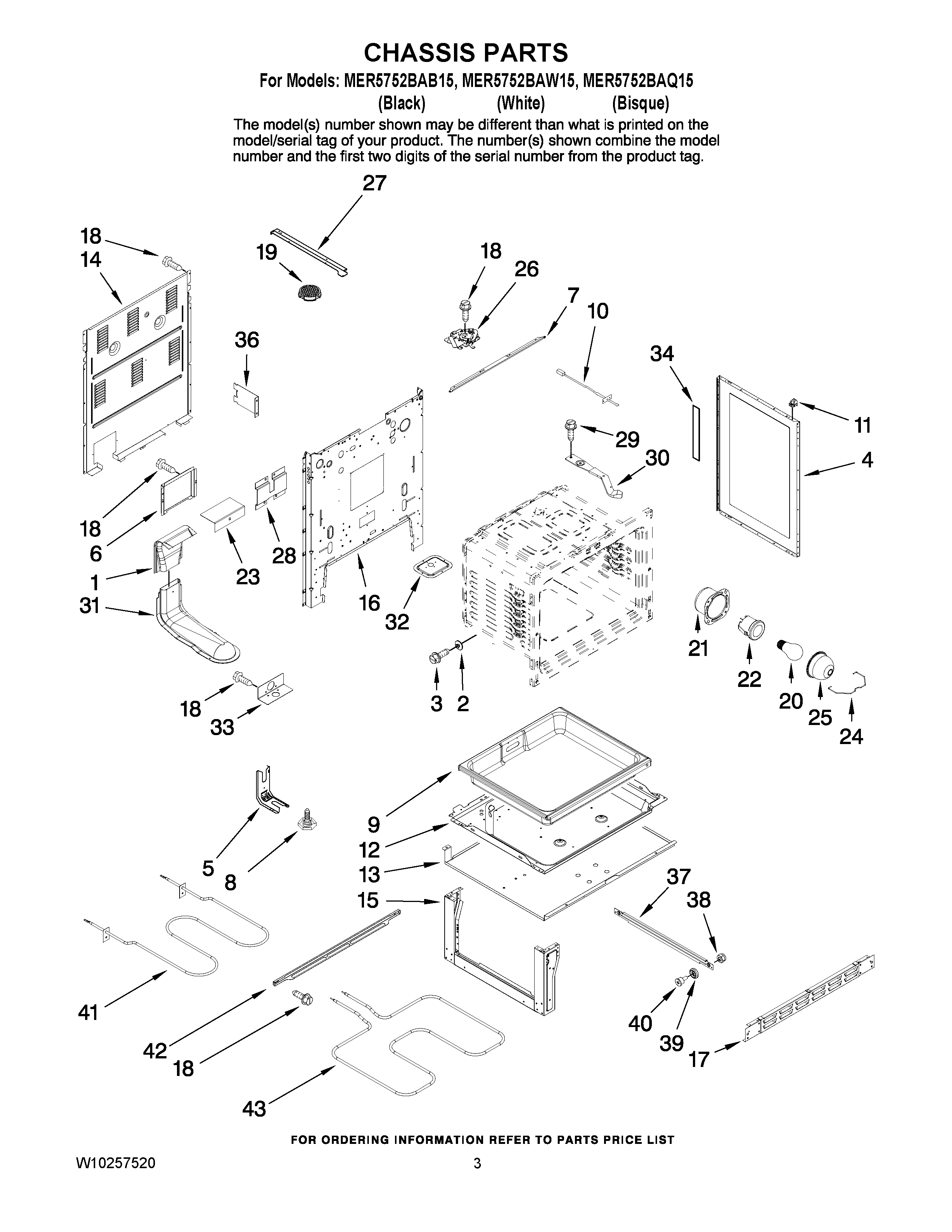

MER5752BAQ15 03 – CHASSIS PARTSadmin2025-04-26T09:11:19+00:00MER5752BAQ15 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P398-60 |
| NI | INSULATION, BACK |
| 1 | MAY 8026P082-60 |
| 2 | MAY 8004P024-60 |
| 3 | SCREW, SHOULDER |
| 4 | Panel, Side (White) (2) |
| 4 | Panel, Side (Black) (2) |
| 4 | Panel, Side (Bisque) (2) |
| 5 | BRACKET, ANTI-TIP |
| 6 | MAY 4005F747-51 |
| 7 | MAY 3801F924-80 |
| 8 | Leg, Leveling |
| 9 | MAY 2205F061-19 |
| 10 | MAY 7430P042-60 |
| 11 | SPACER, MAIN TOP (LT) |
| 11 | SPACER, MAIN TOP (RT) |
| 12 | MAY 3804F231-51 |
| 13 | SHIELD, WARM. DWR. |
| 14 | MAY W10177234 |
| 15 | MAY 4020L026-80 |
| 16 | MAY W10177185 |
| 17 | MAY 4020F021-80 |
| 18 | MAY 7101P376-60 |
| 19 | SCREEN, SMOKE ELM. |
| 20 | RANGE ONLY 40W 120V APPL BULB |
| 21 | MAY 4001F109-45 |
| 22 | RECEPTICLE, BULB |
| 23 | MAY 8036P026-60 |
| 24 | RETAINER,OVEN LAMP |
| 25 | LENS, BULB |
| 26 | MAY 8002P086-60 |
| 27 | MAY 4011F458-51 |
| 27 | MAY 4011F459-51 |
| 28 | INSULATOR, HEAT SHIELD |
| 29 | SCREW, LEVER |
| 30 | LEVER, LOCK |
| 30 | MAY 8009P066-60 |
| 30 | MAY 8009P067-60 |
| 31 | MAY 4006W129-45 |
| 32 | MAY 3605F354-45 |
| 33 | BRACKET, POWER SUPPLY |
| 34 | TAPE, FOIL (3`` WIDE) |
| 36 | SUPPORT,OVEN REAR |
| 37 | RUNNER, DRAWER (2) |
| 38 | MAY 7103P190-60 |
| 39 | MAY W10272883 |
| 40 | MAY 7118P032-60 |
| 41 | MAY W10310249 |
| 42 | MAY 3807F494-45 |
| 43 | MAY 7406P438-60 |
