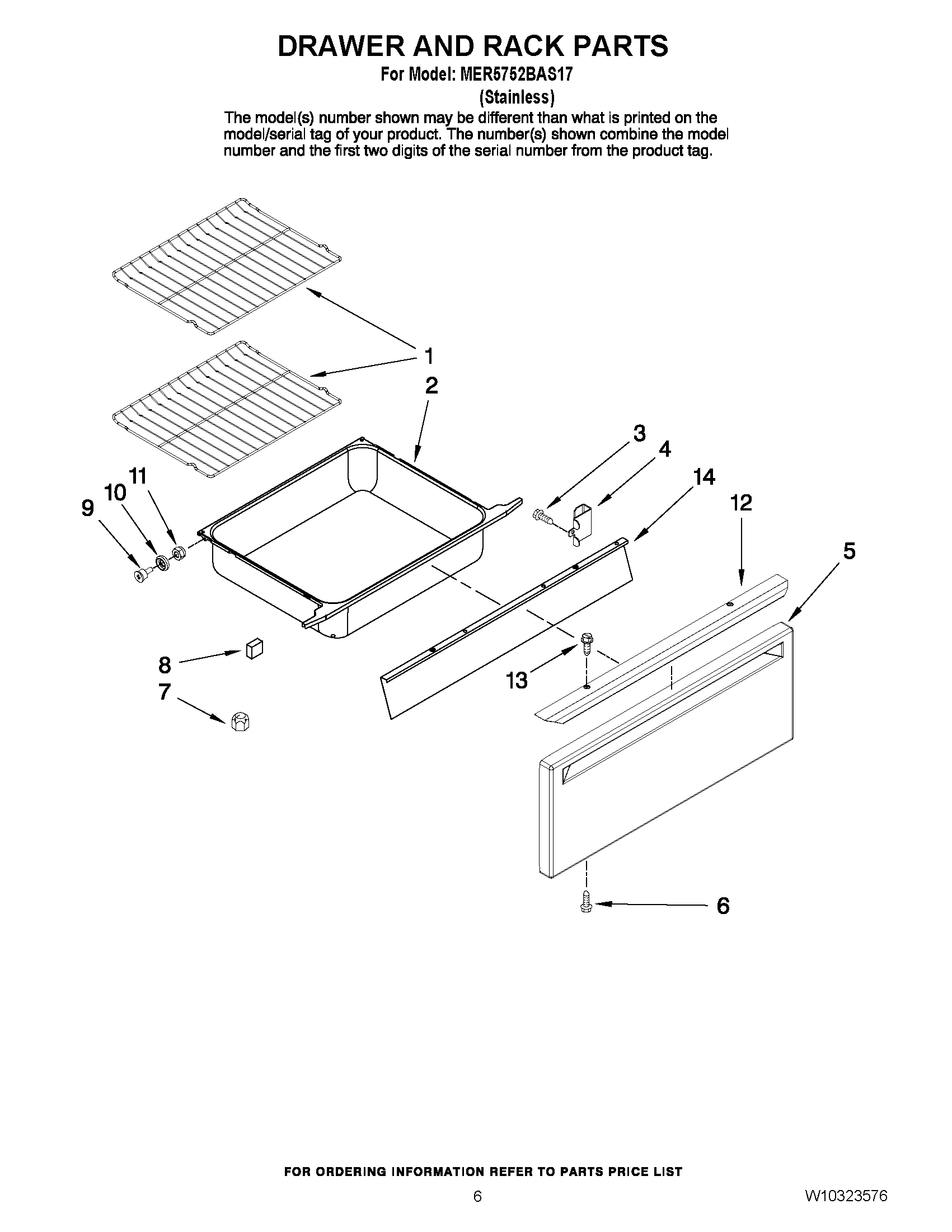

MER5752BAS17 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK, OVEN (2)
2	DRAWER, STORAGE
3	WP7101P072-60 Whirlpool Screw
4	MAY 3801F887-51
5	MAY W10174859
6	Screw (2) (Black)
7	WPW10131078 Whirlpool Nut Assembly
8	MAY 8010P130-60
10	MAY 7118P032-60
11	WP488130 Whirlpool Air Conditioner Nut
12	HANDLE, DRAWER
13	SCREW
14	LINING, DRAWER PANEL
