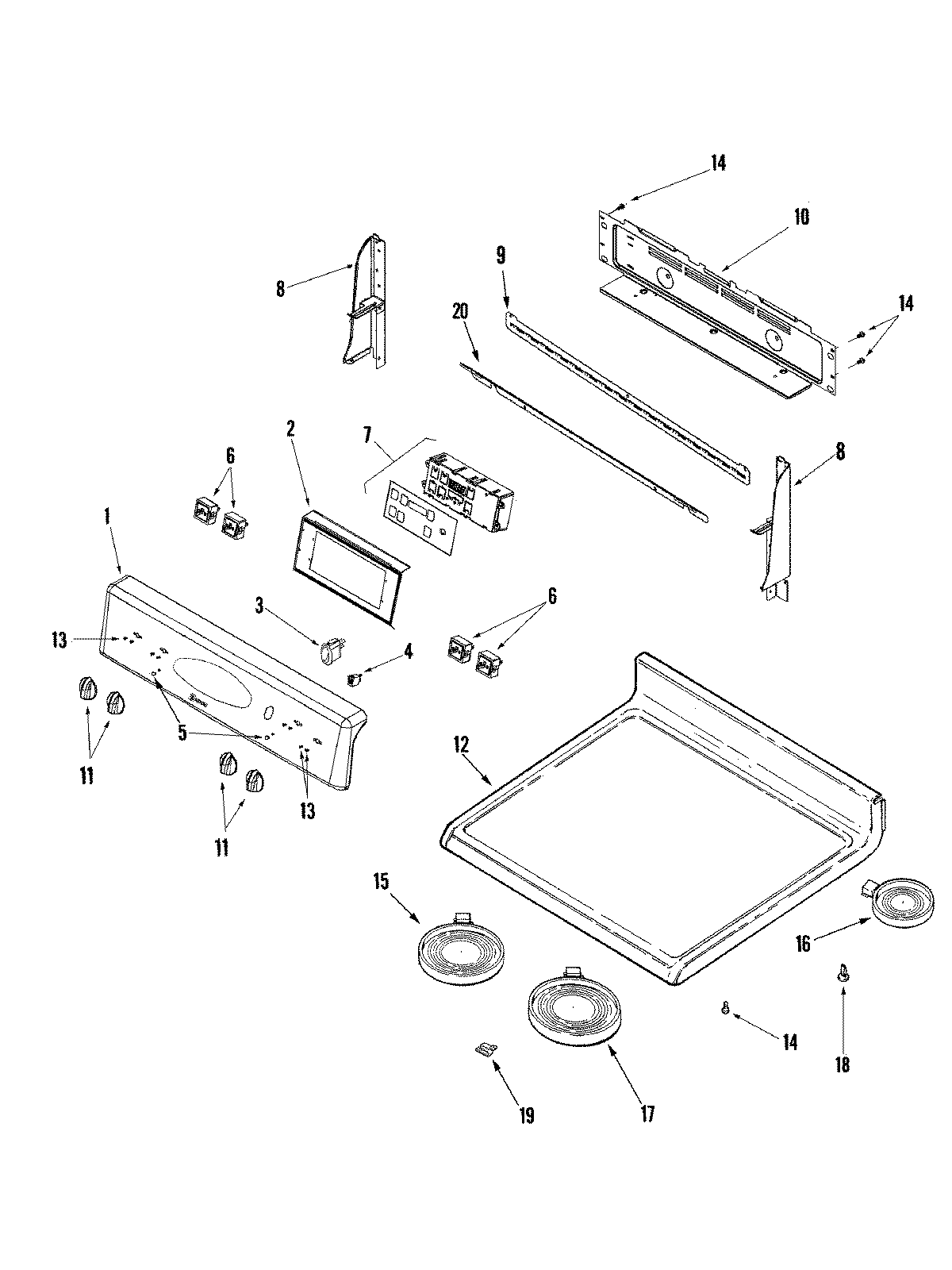

MER5752BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011067
2	BRACKET, CLOCK
3	WP74010226 Whirlpool RO Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74008940 Whirlpool Infinite Switch
6	74011070 Whirlpool Infinite Switch
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	5701M760-60 Whirlpool Electronic Control Board
8	MAY 74010713
8	MAY 74010212
8	WP98008544 Whirlpool Screw Assembly
9	MAY 74009701
10	COVER, REAR WIRE
11	W11197495 Whirlpool Knob
12	MAY 74011064
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	MAY 74009082
19	W11189172 Whirlpool Glide Drawer
19	8004P093-60 Whirlpool Support C
20	WP90767 Whirlpool Screw
20	MAY 74009978
