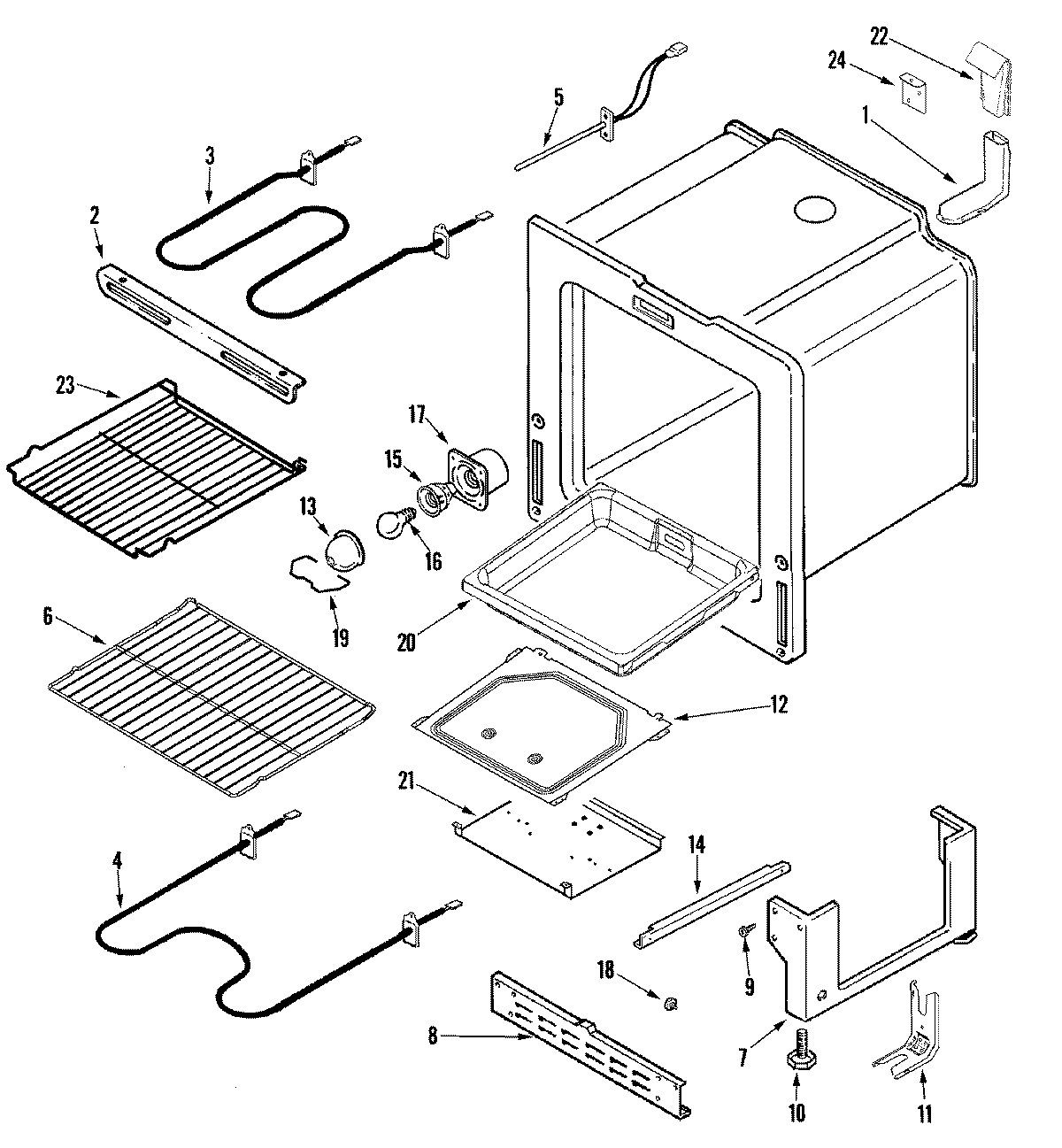

MER5752BAW 04 – OVEN/BASE

MER5752BAW 04 – OVEN/BASE

Written by

in

MER5752BAW 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003394
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP7406P438-60 Whirlpool Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12RETAINER, INSULATION (BOTTOM)
13MAY 74003389
13INSULATION, OVEN DOOR
14RUNNER, DRAWER
14SCREW
14LINING, DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
15MAY 74003387
16MAY 74003399
16RANGE ONLY 40W 120V APPL BULB
17WP98008544 Whirlpool Screw Assembly
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
25WP488130 Whirlpool Air Conditioner Nut
