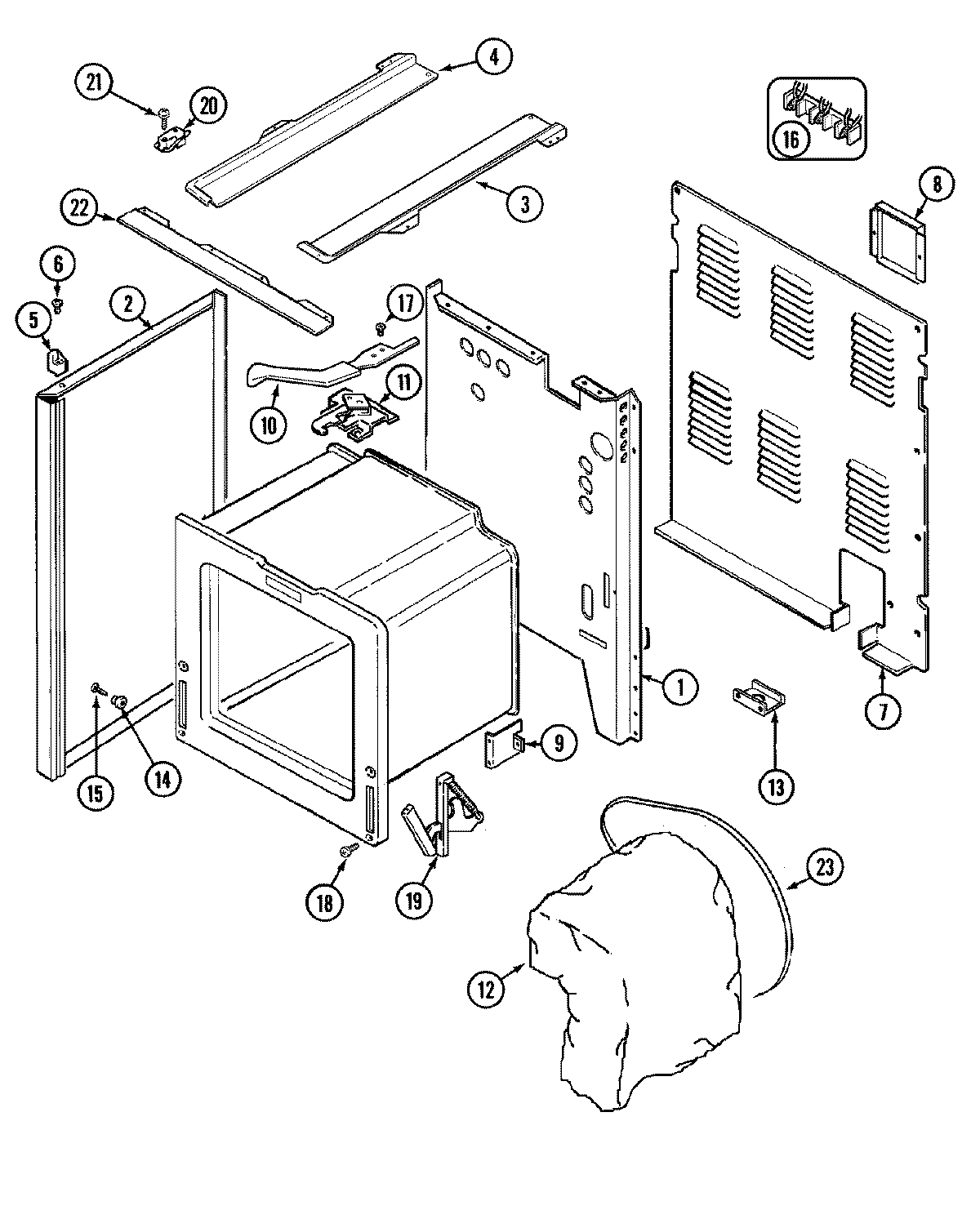

MER5755AAB 01 – BODY

MER5755AAB 01 – BODY

Written by

in

MER5755AAB 01 – BODY

Products

PositionProduct
1MAY 74001772
2MAY 74003283
2TAPE, FOIL (3“ WIDE)
3MAY 74003378
4MAY 74003379
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7MAY 74003241
8MAY 4005F427-51
9SUPPORT,OVEN REAR
9SCREW
10MAY 74003005
11W10828565 Whirlpool Screw
11MAY 74003380
11MAY 74001084
11MAY 74003139
12WP74010942 Whirlpool Insulation
12MAY 74003381
13W10190166 Whirlpool Service Bracket
14MAY 8004P024-60
15MAY 74001449
15W11693756 Whirlpool Screw Assembly
16WPW10245259 Whirlpool Terminal Block
17SCREW, LEVER
18SCREW (10-24X5/16-NI)
19WP74011140 Whirlpool Oven Hinge
20MAY 74003383
21MAY 7101P330-60
22MAY 74003384
23MAY 74003385
