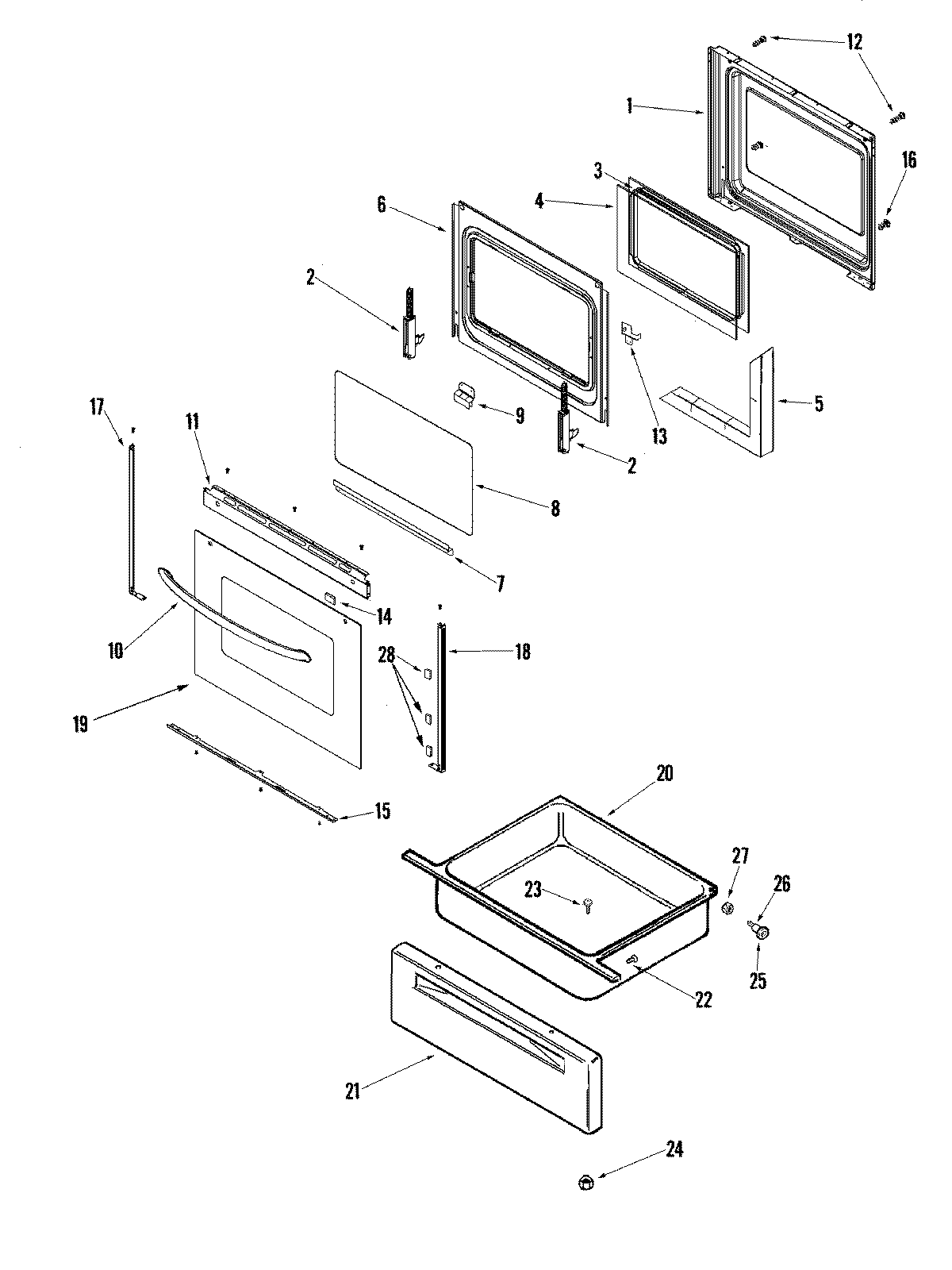

MER5755QAB 04 – DOOR/DRAWERadmin2025-04-26T09:11:05+00:00MER5755QAB 04 – DOOR/DRAWER
Products
| Position | Product |
|---|
| 1 | MAY 74008742 |
| 2 | 74010546 Whirlpool Range Oven Door Hinge |
| 3 | FRAME, GLASS |
| 4 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 5 | INSULATION, OVEN DOOR |
| 6 | MAY 74008744 |
| 7 | MAY 74008745 |
| 8 | GLASS, DOOR |
| 9 | Trim, Door Top (Black) |
| 10 | WP74011767 Whirlpool Door Handle |
| 11 | WP98008545 Whirlpool Screw |
| 11 | Trim, Door Top (Black) |
| 12 | WP74006515 Whirlpool Washer Screw |
| 13 | MAY 74008750 |
| 13 | MAY 74008749 |
| 14 | WP74004224 Whirlpool Tape |
| 15 | TRIM, BOTTOM (BLK) |
| 16 | SCREW (10-24X5/16-NI) |
| 17 | MAY 74008902 |
| 18 | MAY 74010560 |
| 18 | MAY 74008901 |
| 19 | Glass, Door (Black (Order Item 15 When Replacing Door Glass)) |
| 20 | DRAWER, STORAGE |
| 21 | Panel, Drawer (Black) |
| 22 | SCREW |
| 23 | WP7101P072-60 Whirlpool Screw |
| 24 | WPW10131078 Whirlpool Nut Assembly |
| 25 | WP74004078 Whirlpool Door Roller |
| 26 | SHAFT, STORAGE DRAWER ROLLER |
| 27 | WP488130 Whirlpool Air Conditioner Nut |
| 28 | WP74009025 Whirlpool Double Sided Tape |
