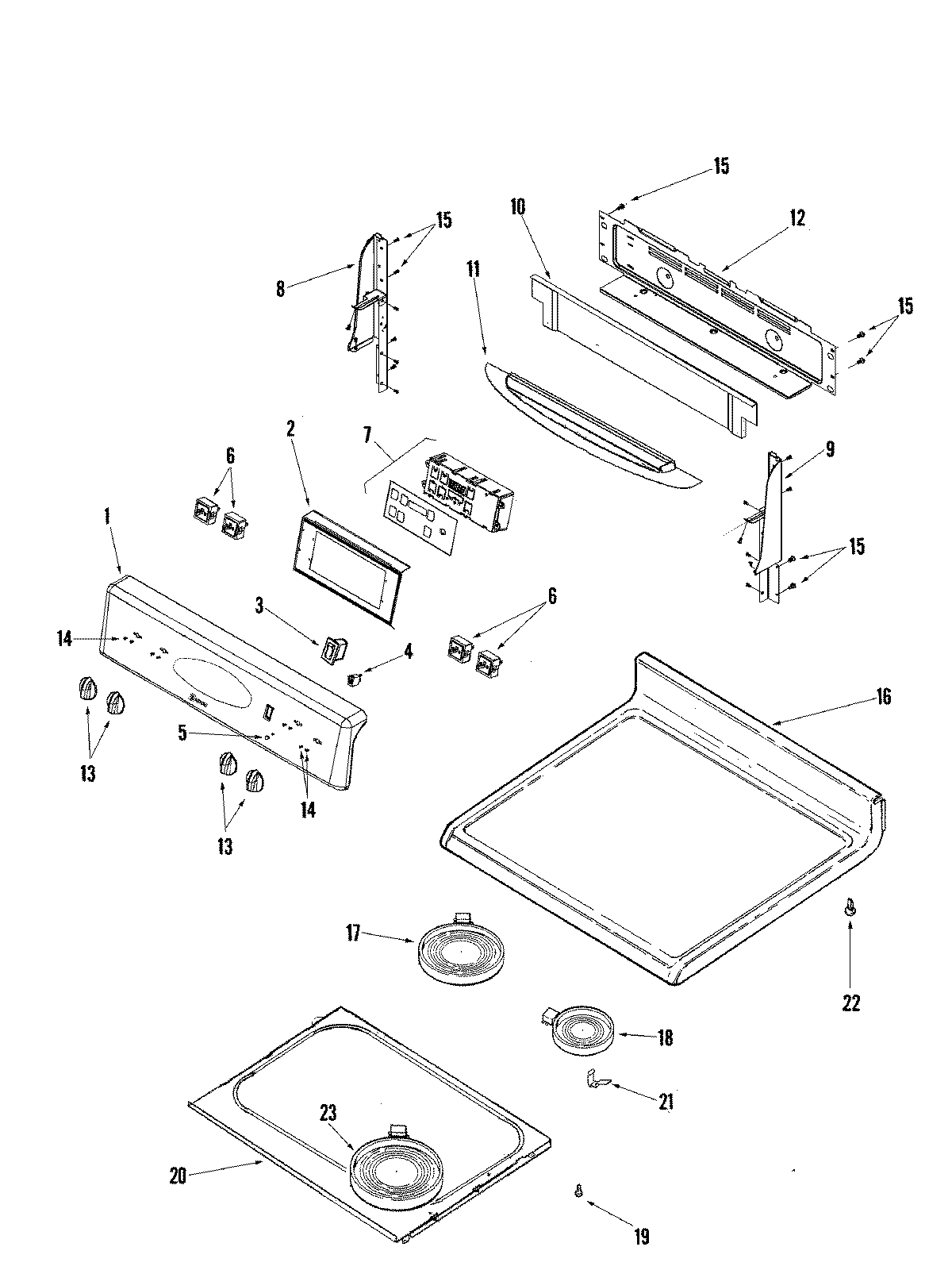

MER5755QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009072
2NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74008646
7MAY 74009212
8END CAP (LT-BSQ)
9END CAP (RT-BSQ)
10MAY 74009207
10MAY 74008727
11MAY 74008729
11SHIELD, HEAT VISOR (BSQ)
12MAY 74008730
12MAY 74008836
1374008946 Whirlpool Oven Bisque Knob
14SCREW
16MAY 74008542
17W10823696 Whirlpool Radiant Surface Element
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23MAY 74009082
