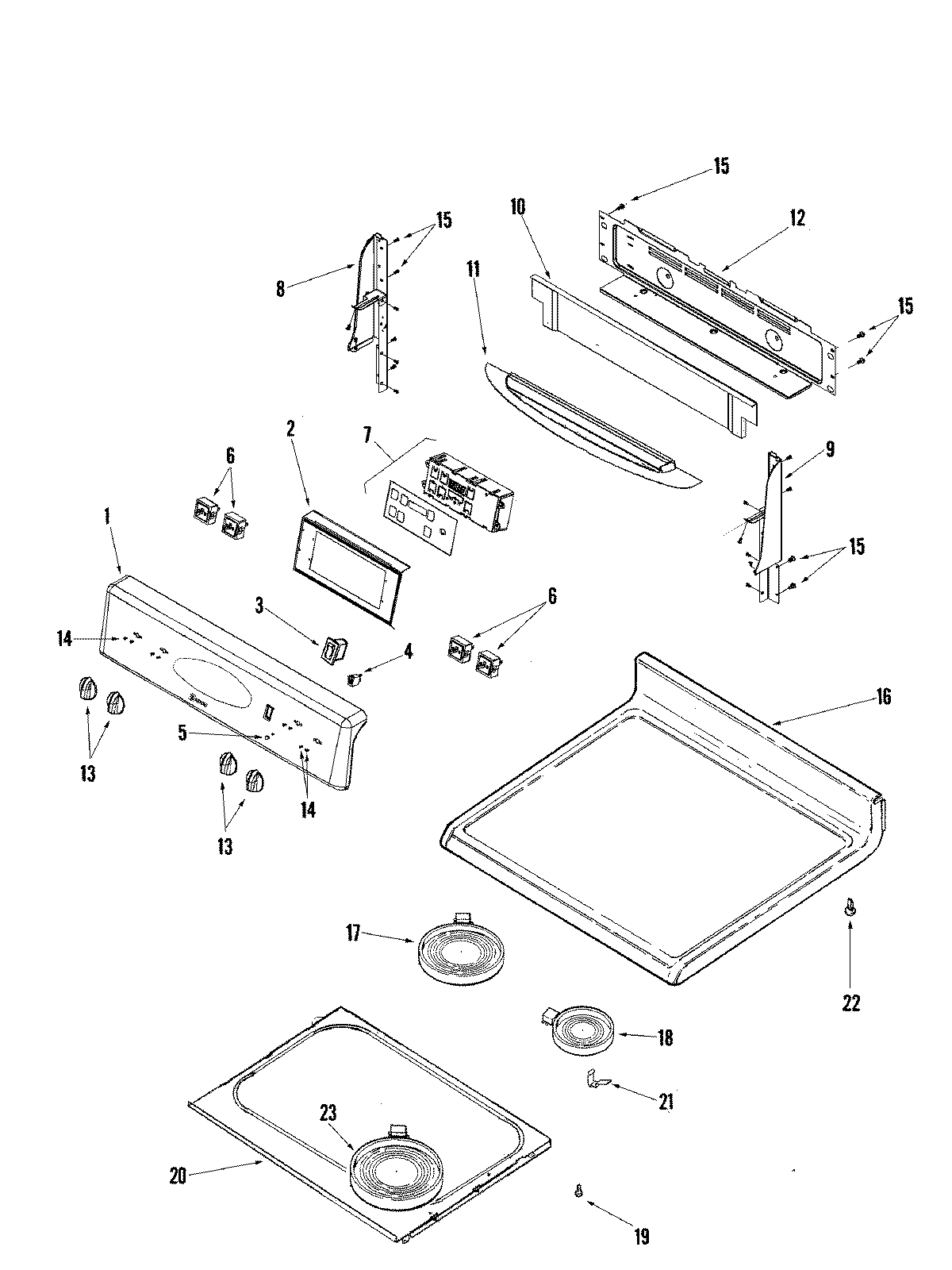

MER5755QAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008903
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP5701M719-60 Whirlpool Electronic Control Board
8	End Cap (Left Black)
9	End Cap (Right Black)
10	MAY 74009205
10	MAY 74008725
11	MAY 74009202
11	MAY 74008891
12	MAY 74008836
12	MAY 74008730
13	MAY 74008945
14	SCREW
16	MAY 74008541
17	W10823696 Whirlpool Radiant Surface Element
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	MAY 74009082
