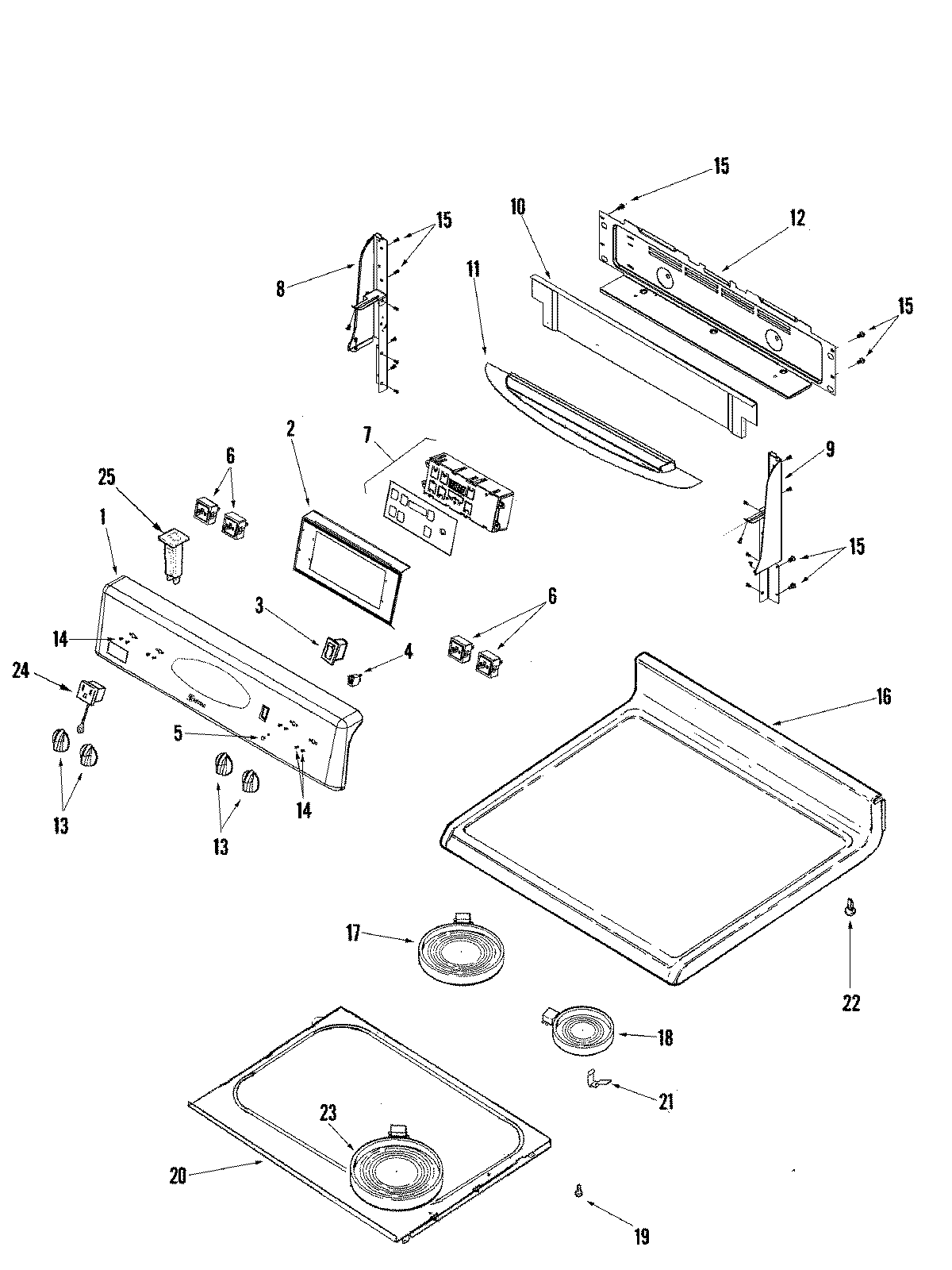

MER5755QCB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009338
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	WP5701M719-60 Whirlpool Electronic Control Board
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009205
11	MAY 74009202
12	MAY 74009335
12	MAY 74008836
13	MAY 74008945
14	SCREW
16	MAY 74008541
17	W10823711 Whirlpool Surface Element Left Front and Right Rear
18	W10823696 Whirlpool Radiant Surface Element
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	MAY 74009082
24	MAY 71003068
25	MAY 71003070
