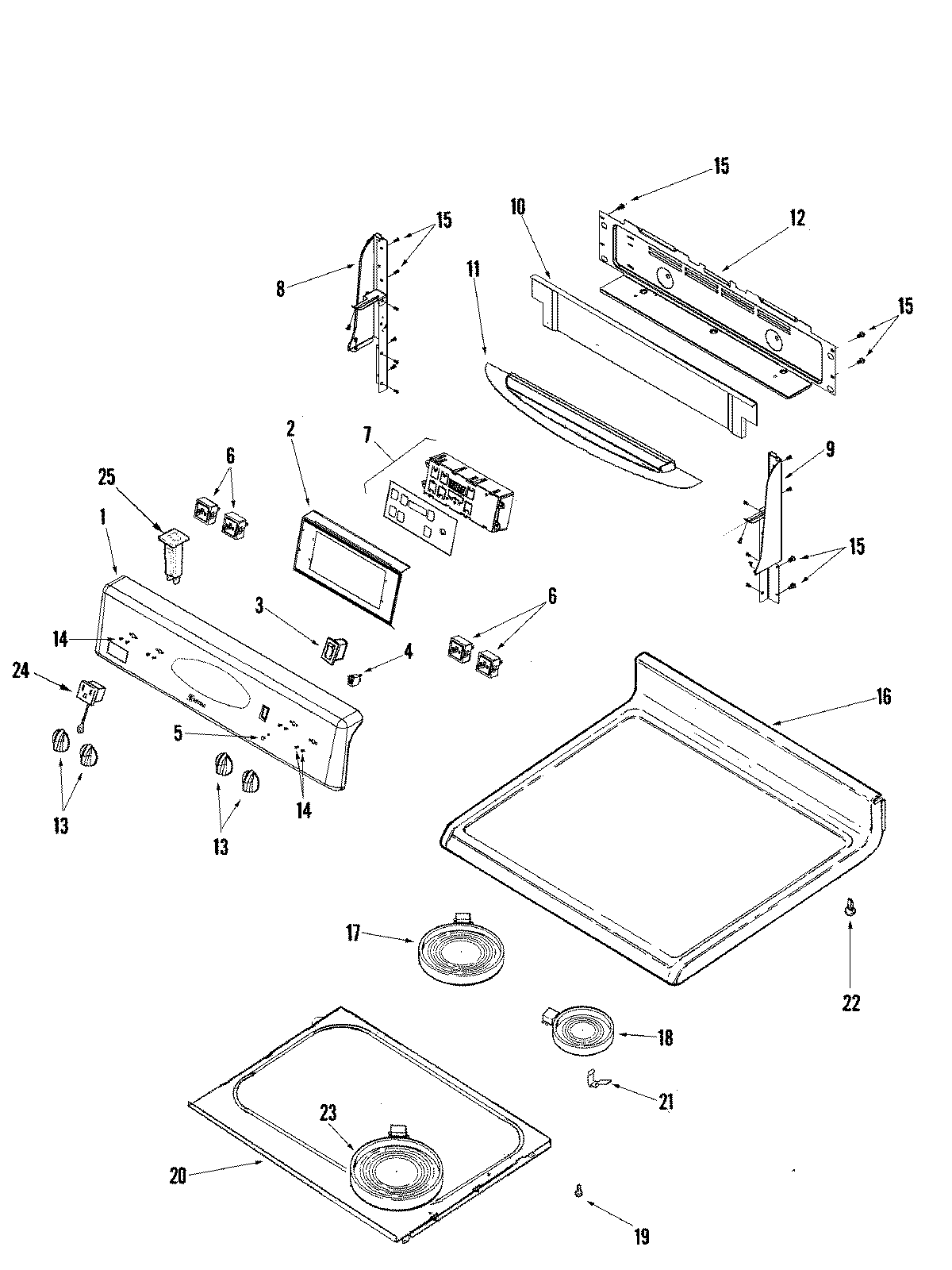

MER5755QCW 03 – CONTROL PANEL/TOP ASSEMBLY

MER5755QCW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5755QCW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009339
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP5701M717-60 Whirlpool Electronic Control Board
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009206
11MAY 74009203
12MAY 74009335
12MAY 74008836
13WP74008947 Whirlpool Knob White
14SCREW
16MAY 74008543
17W10823711 Whirlpool Surface Element Left Front and Right Rear
18W10823696 Whirlpool Radiant Surface Element
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23MAY 74009082
24MAY 71003069
25MAY 74009322
